Overview

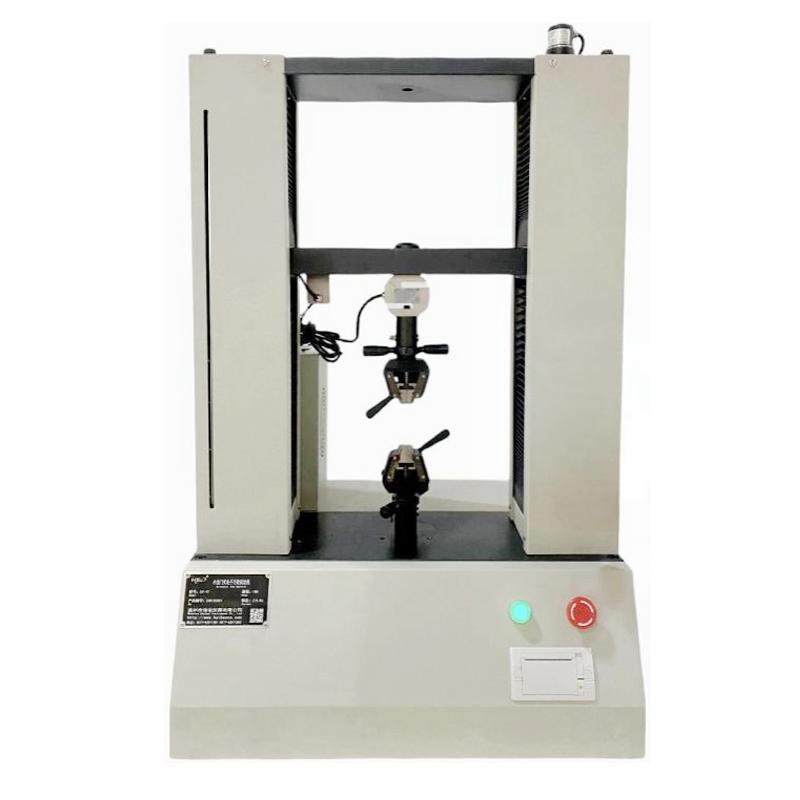

XYD-1T small gantry microcomputer-controlled universal testing machine is a high-rigidity portal frame structure equipment produced by HBO, using stepper motor drive and digitalization Control system. Mainly used for metal, Non-metallic and composite mechanical properties testing, it can automatically calculate and display the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other indicators. All operations are completed by computer mouse.
Features
1. Four Rail Column and High Accuracy Double Ball Screw Pair Structure Improve Measurement accuracy and Stability
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, and the starting speed, Test speed and reset speed can be adjusted separately
5. Specimen deformation and loading force can be set to support delay holding and automatic return
6. Provide a variety of test modes, including universal tensile, compression, force holding, bending, disbonding, tearing, waterproofing membrane and electrical casing testing
7. Force holding and stress testing with PID speed force value double loop control
8. Chinese Windows software interface, real-time display of test data and Linear dispersion
9. Support automatic transmission and multiple coordinate Linear dispersion display
Principle
This product uses high-intensity light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. Stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. Precise automatic control and data collection system realizes full digitalization adjustment, and the test parameters are automatically calculated and displayed by the Windows host computer software.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, Paper, Manufacturing, Product mass supervision department, Teaching demonstration in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set test parameters through computer software
2. Select the appropriate test mode
3. Start the test and the device will load automatically
4. Real-time monitoring of displacement, deformation, speed, force value, and other data
5. After the test, the software automatically calculates the results
6. Query and print the test report
Notice
• Power supply voltage 220V 50HZ
• Set the force value and displacement unit correctly before the test
• Select the appropriate test mode according to the sample type
• Regularly calibrate equipment to ensure Measurement accuracy
• Pay attention to safety protection during operation
