Overview

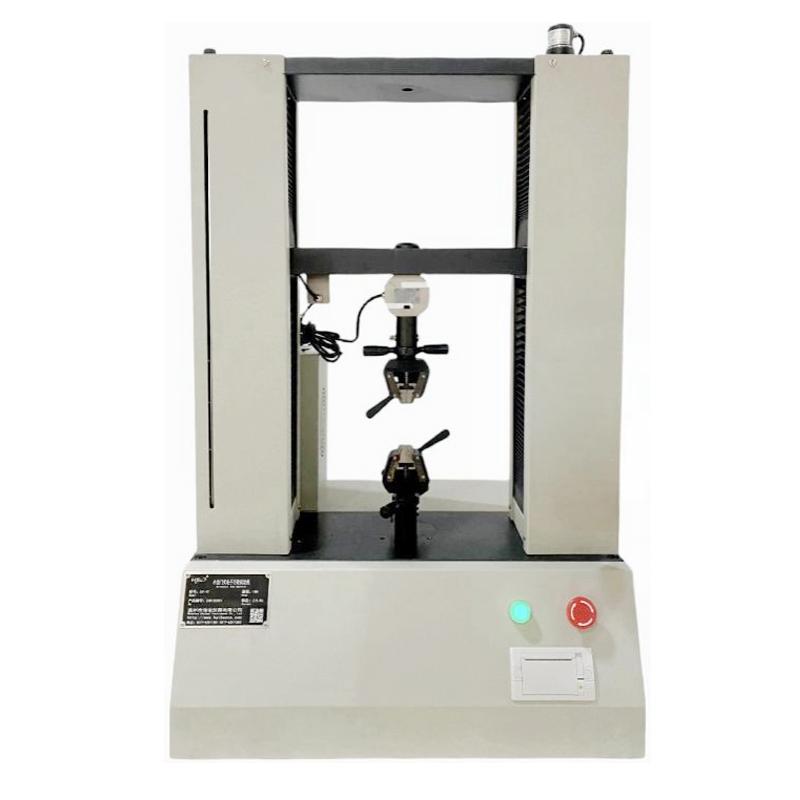

XYD-2T small gantry microcomputer-controlled universal testing machine is a high-performance test equipment produced by HBO. It uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure, and is driven by a stepper motor to realize the test loading process. It is mainly used for metal, Non-metallic and composite material mechanical performance index testing. It has a precise automatic control and data collection system, which can automatically calculate and display the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other parameters. All operations are completed by computer mouse.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Graduation free setting: force value and displacement Graduation can be set up to 5 decimal places
5. Running speed can be set: Start speed, Test speed, Reset speed set separately
6. Specimen deformation and loading force can be set to support delayed holding, automatic return or stop
7. Provide a variety of test modes: general tensile test, general compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof membrane test and electrical casing test
8. Force holding and pressure type test with PID speed force value double loop control
9. Chinese Windows software interface, menu prompts, mouse operation
10. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time, dynamic display of test data and Linear dispersion
11. Test results support force-time, force-deformation, deformation-time coordinates Linear dispersion
12. Automatic transmission function: Test speed can be automatically changed according to the preset program
Principle
This product uses high-intensity light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. Stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. Precision automatic control and data collection system realizes full digitalization adjustment, data is collected during the test, and the Windows host computer software automatically calculates and displays the results after the test.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Start the Windows host computer software through the computer mouse
2. Set test parameter conditions, including force value unit, displacement unit, Graduation, running speed, sample deformation, loading force, etc
3. Select test mode (such as universal tensile test, compression test, etc.)
4. Start the test, the system automatically collects data and displays it dynamically
5. After the test, the software automatically calculates and displays the results with Linear dispersion
6. Query and print test results
Notice
• Power supply voltage 220V 50HZ
• Test speed range controlled within 1-400mm/min
• Force Indication Error not exceeding +/- 0.5%
• Displacement accuracy does not exceed +/- 0.05mm
• Speed Indication Error no more than +/- 1%
• Test width does not exceed 350mm
• Travel no more than 500mm
• Dimensions and weight check equipment before use to ensure proper installation environment
