Overview

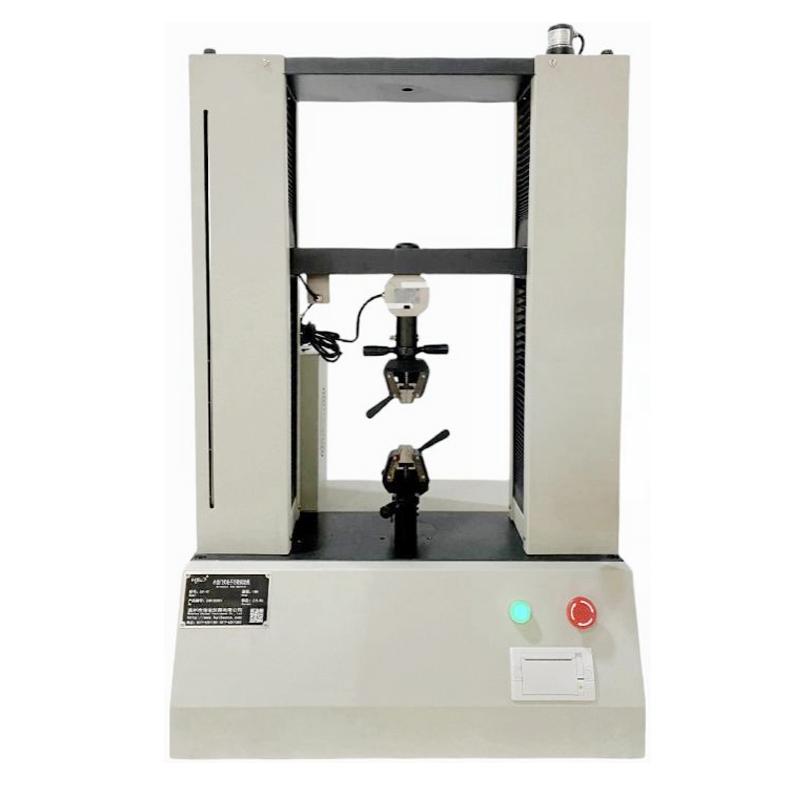

XYD-3T small gantry microcomputer-controlled universal testing machine is a high-intensity light bar fixed structure model of HBO brand. It adopts stepper motor drive and transmission mechanism to realize high-rigidity gantry frame and test loading process. The equipment is mainly used for mechanical properties testing of various metals, Non-metallic and composites. Through precise automatic control and data collection system, full digitalization adjustment data collection and control process, the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other indicators of the material are detected in the tensile compression test. After the test, the Windows host computer software automatically calculates and displays the results and Linear dispersion. All operations can be completed on the computer through the mouse.
Features
1. Four Guide Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability.
2. Support 6 force units: N, kgf, lbf, gf, kN, tf.
3. Support three displacement units: mm, cm, in.
4. Graduation can be set freely: force value Graduation can be set up to 5 decimal places; displacement Graduation can be set up to 5 decimal places.
5. The running speed can be set, and the starting speed, Test speed and reset speed can be set separately to improve the test efficiency and accuracy.
6. The deformation of the sample can be set, and the loading force can be set. After reaching the preset force, it can be delayed, automatically returned to the initial position, or stopped immediately.
7. Provide a variety of test modes, including general tensile test, general compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test.
8. Force holding type test and pressure type test come with PID speed force value dual-loop control.
9. The test software is Chinese WINDOWS interface, menu prompts, and mouse operation.
10. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time, test data and Linear dispersion dynamic display.
11. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time.
12. Automatic transmission function, Test speed can be automatically changed according to the preset program.
Principle
This product uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. The stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes full digitalization adjustment, and the material technical indicators are detected in the tensile compression test. After the test, the Windows host computer software automatically calculates and displays the results.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Start the test software on the computer with the mouse.
2. Set the test parameters, including force value unit, displacement unit, Graduation, running speed, deformation and loading force.
3. Select the test mode, such as universal tensile test or compression test.
4. Start the test, the system automatically controls the loading process, displays data and Linear dispersion in real time.
5. After the test, the software automatically calculates and displays the results, and can query and print the test data.
Notice
- Power supply voltage is 220V 50HZ to avoid voltage instability affecting equipment operation.
- When setting Graduation and running speed, adjust according to test needs to improve accuracy.
During the test, pay attention to the real-time display of the force value and deformation to prevent overload.
- Reset the equipment in time after use to maintain its initial position and prolong its service life.
- Regularly check the transmission mechanism and light bar structure to ensure high rigidity frame Stability.
