Overview

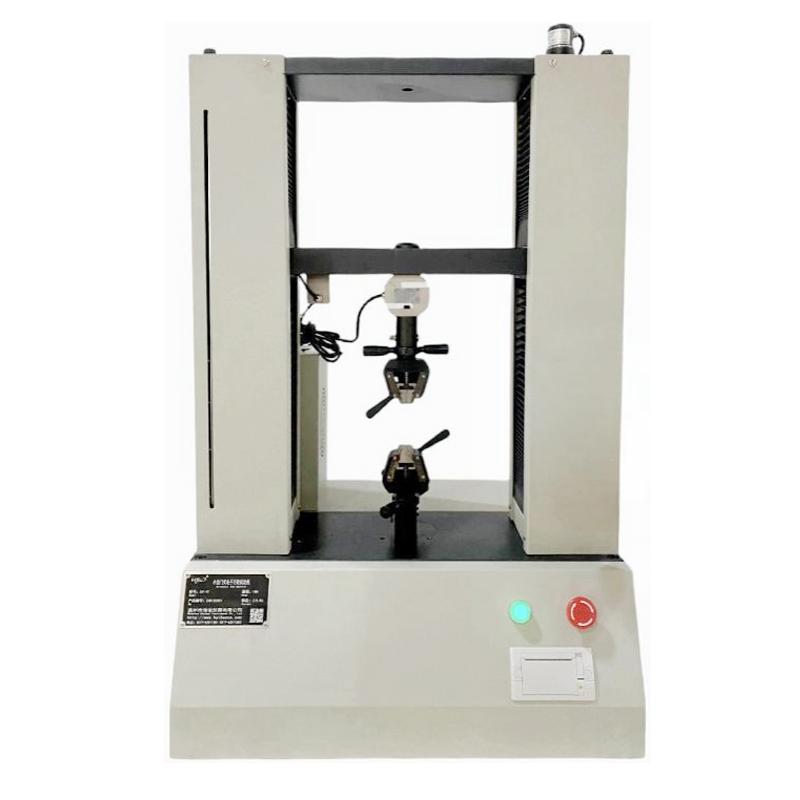

XYD-5T small gantry microcomputer-controlled universal testing machine is a high-rigidity gantry frame structure testing equipment produced by HBO. It uses high-intensity light bars to fix the upper beam and countertop, and stepper motor drives the beam to move through the transmission mechanism to achieve loading. Mainly used for metal, Non-metallic and composite mechanical properties testing, precise automatic control and data collection system to achieve full digitalization adjustment, which can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other indicators. The test data is automatically calculated by Windows software and the results are displayed with Linear dispersion.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Graduation free setting: force value and displacement Graduation can be set up to 5 decimal places
5. The running speed can be set, the starting speed, Test speed and reset speed are set separately
6. Specimen deformation and loading force can be set to support delayed holding, automatic return or stop
7. Provide a variety of test modes: general tensile test, general compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof membrane test and electrical casing test
8. Force holding and pressure type test with PID speed force value double loop control
9. Chinese Windows software interface, menu prompts mouse operation
10. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
11. Test results support force-time, force-deformation, deformation-time coordinates Linear dispersion
12. Test speed can be automatically changed according to the preset program
Principle
This product uses high-strength light bars to fix the upper beam and work surface to form a high-rigidity portal frame structure. Stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process. The technical indicators of the material are detected in the tensile compression test. After the test, the Windows host computer software automatically calculates and displays the results.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters conditions on the computer with the mouse
2. Start the test, and the device automatically completes the loading process
3. Real-time monitoring of displacement, deformation, running speed, force value and other data
4. After the test, the software automatically calculates and displays the test results and Linear dispersion
5. Query and print test results
Notice
• Power supply voltage 220V 50HZ
• Device weight 150Kg, need to be firmly placed
• Test speed range 1-200mm/min, do not exceed the limit
• Force value Indication Error ≤ +/- 0.5%, displacement accuracy ≤ +/- 0.05mm
• Speed Indication Error ≤ +/- 1%, need to be calibrated regularly
• Travel 500mm, test width 350mm, do not exceed the limit
• Frequency 50HZ to ensure normal working environment
