Overview

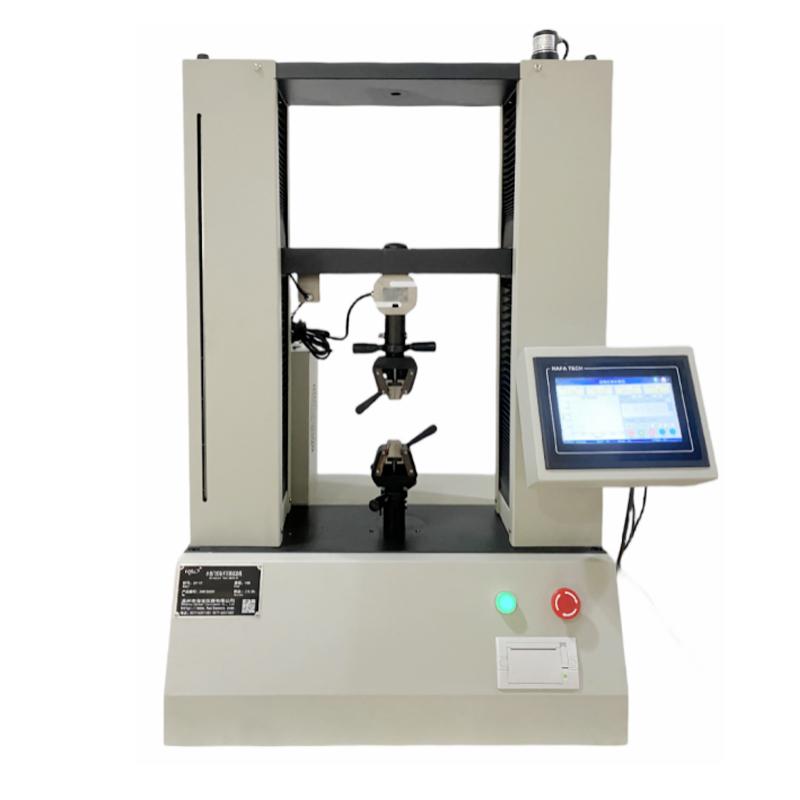

XY series electronic universal testing machine is an economical and practical model. It uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. It is driven by a stepper motor to realize the test loading process. It is mainly used for testing the mechanical properties of various metals, Non-metallic and composite. The precision automatic control and data collection system realizes full digitalization adjustment. It can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other technical indicators. After the test, the results are automatically calculated and displayed with Linear dispersion, which supports query and printing.
Features
1.7-Inch touch screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test.
2. Supports 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in).
3. Graduation can be set freely: force value Graduation can be set up to 5 decimal places; displacement Graduation can be set up to 5 decimal places.
4. The running speed can be set (the speed is controllable), the starting speed, Test speed and reset speed can be set separately to improve the test efficiency and accuracy.
5. The sample deformation can be set (displacement controllable) and the loading force can be set (force value controllable). After reaching the preset force, it can be delayed (time controllable), automatically returned or stopped.
6. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time.
7. Provide a variety of test modes, including general tensile test, general compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test.
8. Force holding type test and pressure type test (except three/four point bending test) with PID speed force value double loop control.
9. It can test 10 samples and automatically calculate the average value, MAX Maximum, MIN Minimum and other results.
10. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time.
11. After the test is completed, the data bar can be automatically saved, up to 10,000 pieces of data can be saved.
12. The machine comes with a miniature printer that can print test results.
13. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device.
Principle
This product uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. The stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process. The material technical indicators are detected in the tensile compression test. After the test, the microcomputer controller automatically calculates and displays the results.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries as well as product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters, including force value unit, displacement unit, Graduation, running speed, sample deformation and loading force.
2. Select the test mode, such as universal tensile test or compression test.
3. Start the test with one click, and the system automatically loads and displays the data in real time.
4. After the test, the microcomputer controller automatically calculates and displays the results with Linear dispersion.
5. Query and print the test results, and the data is automatically saved.
Notice
• Power supply voltage is 220V 50HZ to avoid voltage instability affecting equipment operation.
• Check whether the overload protection, limit protection and emergency shutdown device are normal before operation.
• Pay attention to Graduation and speed range when setting parameters to avoid exceeding equipment specifications.
• Monitor the displacement, deformation and force values in real time during the test to ensure test safety.
• Maintain equipment regularly to keep the transmission mechanism and frame structure clean.
• Save data in time after use to avoid data loss.
