Overview

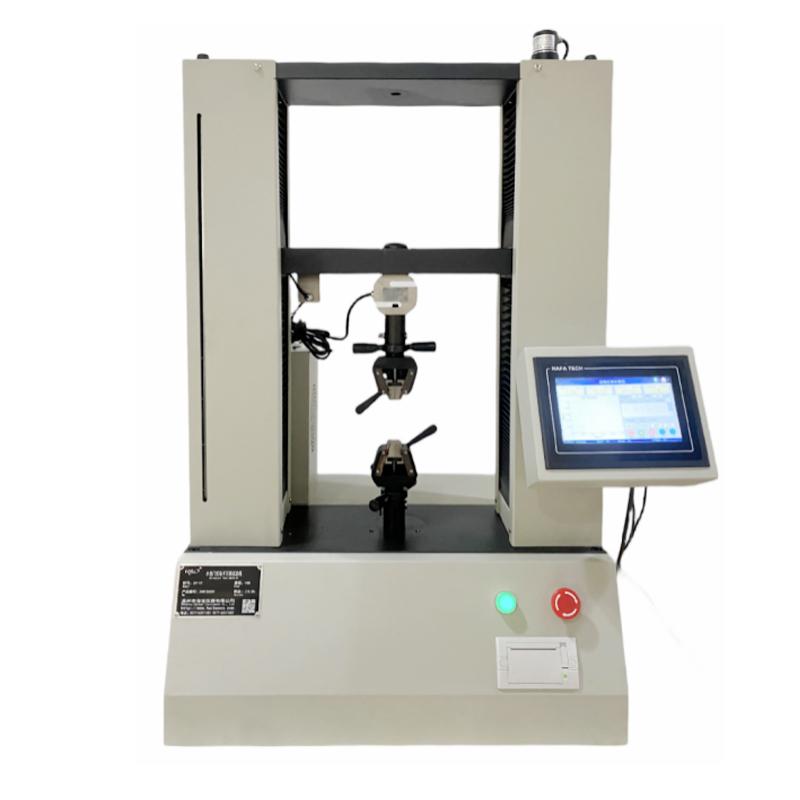

XY series electronic universal testing machine is an economical and practical model. It uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure, and is driven by a stepper motor to realize the test loading process. It is mainly used for mechanical performance testing of various metals, Non-metallic and composite materials. The precision automatic control and data collection system realizes full digitalization adjustment, which can detect parameters such as maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation, etc. After the test, the results and Linear dispersion are automatically calculated and displayed, and the query and printing are supported.
Features
1.7-Inch touch screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test.
2. Supports 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in).
3. Graduation can be set freely, and the force value and displacement can be set up to 5 decimal places.
4. The running speed can be set, and the starting speed, Test speed and reset speed can be set separately to improve the test efficiency and accuracy.
5. The sample deformation and loading force can be set, and it can be delayed, automatically returned or stopped after reaching the preset force.
6. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time.
7. Provide a variety of test modes, such as general tensile test, general compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test.
8. Force holding and pressure type test comes with PID speed force value dual-loop control.
9. It can test 10 samples and automatically calculate the average value, MAX Maximum, MIN Minimum and other results.
10. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time.
11. Test data is automatically saved, up to 10,000 pieces of data can be saved.
12. The machine comes with a miniature printer that can print test results.
13. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device.
Principle
The product uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. The stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process. The material technical indicators are detected in the tensile compression test. After the test, the microcomputer controller automatically calculates and displays the results.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries as well as product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters, including force value unit, displacement unit, Graduation, running speed, sample deformation and loading force.
2. Select the test mode, such as universal tensile test or compression test.
3. Start the test with one click, and the system automatically loads and displays the data in real time.
4. After the test, the microcomputer controller automatically calculates and displays the results with Linear dispersion.
5. Query and print the test results, and the data is automatically saved.
Notice
• Power supply voltage is 220V 50HZ before use to avoid voltage instability affecting equipment operation.
• Pay attention to overload protection and limit protection functions during operation to prevent overload damage to the equipment.
• Use emergency shutdown devices in emergencies to ensure safety.
• Regularly check the leakage protection device to prevent electrical failures.
• Graduation and speed are within equipment specifications when setting parameters to improve test accuracy.
When testing multiple samples, ensure that the automatic calculation function is normal to avoid data errors.
• Storage capacity when saving data, up to 10,000 pieces of data can be saved.
• Before printing the test results, confirm that the printer is connected normally.
