Overview

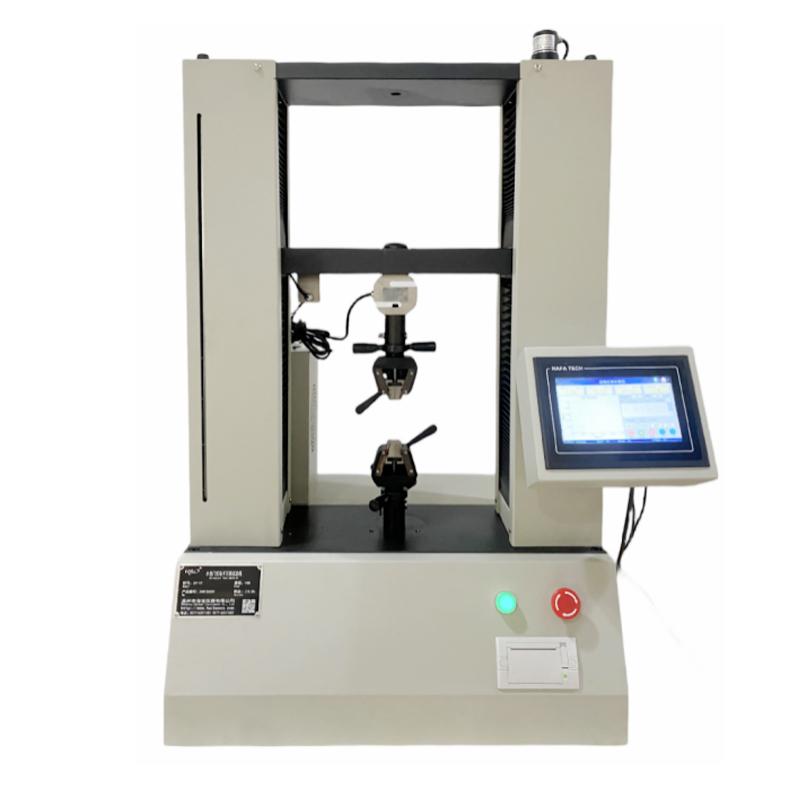

XY-2T electronic universal testing machine is an economical and practical model launched by HBO. It uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure, and is driven by a stepper motor to realize the test loading process. It is mainly used for mechanical properties testing of various metals, Non-metallic and composite. The precise automatic control and data collection system realizes full digitalization adjustment, which can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other technical indicators. After the test, the results are automatically calculated and displayed with Linear dispersion.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2.6 units of force value N, kgf, lbf, gf, kN, tf
3. 3 displacement units mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 5 decimal places; displacement Graduation can be set up to 5 decimal places
5. Running speed can be set (speed controllable), starting speed, Test speed, reset speed can be set separately, improve test efficiency and test accuracy
6. Specimen deformation can be set (displacement controllable)
7. The loading force can be set (the force value is controllable). After reaching the preset force, it can be delayed (time controllable), automatically return to the initial position or stop immediately
8. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
9. Provide [general tensile test], [general compression test], [through force holding test], [three/four point bending test], [disbonding performance test], [tear performance test], [waterproof membrane test] and [electrical casing test] and other test modes
10. Force holding type test and pressure type test (except [three/four point bending test]) with PID speed force value double loop control
11. Can test 10 samples, automatically calculate their average value, MAX Maximum, MIN Minimum and other test results
12. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time
13. After the test is completed, the data bar can be automatically saved, up to 10,000 pieces of data can be saved
14. The machine comes with a micro printer that can print test results
15. Comes with overload protection and limit protection, emergency shutdown device, leakage protection device
Principle
This product uses high-intensity light bars to fix the upper beam and work surface to form a high-rigidity portal frame structure. It is driven by a stepper motor, which drives the beam up and down through the transmission mechanism to realize the test loading process. Precision automatic control and data collection system realizes the full digitalization adjustment of data collection and control process.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries as well as product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters
2. Start testing with one click
3. Real-time observation of displacement, deformation, running speed, real-time force value, peak force value and test time
4. Automatically calculate and display results with Linear dispersion after the test
5. Query display and print test results
Notice
• Power supply voltage AC 220V 50HZ before use
• Pay attention to whether the overload protection and limit protection functions are normal
• Use emergency shutdown devices in emergencies
• Regularly check the leakage protection device
• Test speed is set within 1-400mm/min
Attention Value Indication Error No more than +/- 0.5%
• Displacement accuracy should be kept within +/- 0.05mm
• Speed Indication Error no more than +/- 1%
