Overview

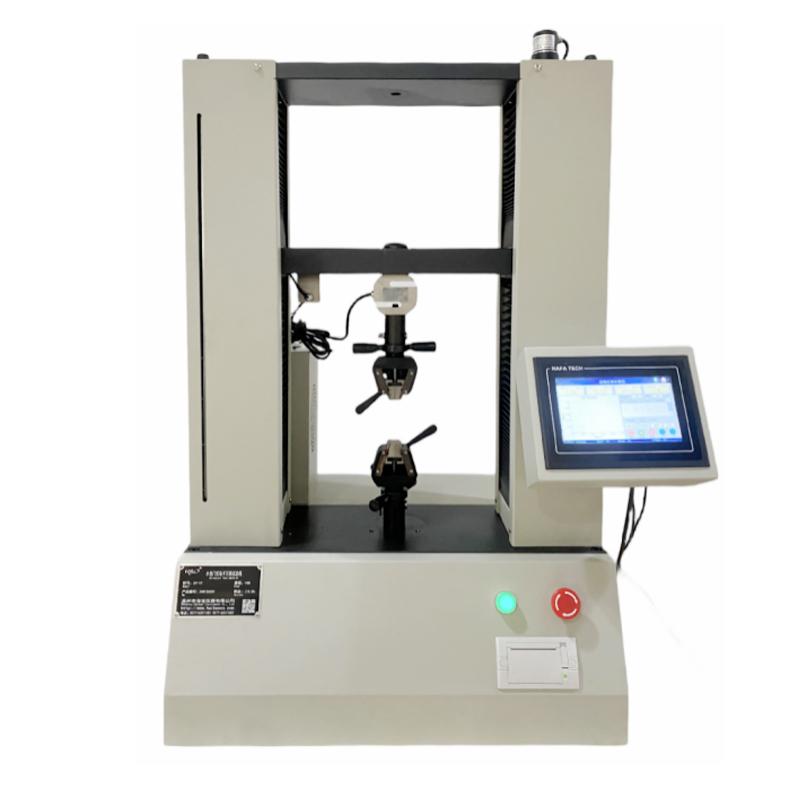

XY-3T electronic universal testing machine is an economical and practical model launched by HBO. It uses high-strength light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure, and is driven by a stepper motor to realize the test loading process. It is mainly used for the mechanical properties testing of various metals, Non-metallic and composites. The precision automatic control and data collection system realizes full digitalization adjustment, which can automatically calculate and display the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other parameters and test Linear dispersion.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, and the starting speed, Test speed and reset speed can be set separately to improve the test efficiency and accuracy
5. The sample deformation and loading force can be set, and it can be delayed, automatically returned or stopped immediately after reaching the preset force
6. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
7. Provide a variety of test modes, including universal tensile, compression, force holding, three/four point bending, disbonding, tearing, waterproof membrane and electrical casing test
8. Force holding and pressure type test with PID speed force value double loop control
9. Can test 10 samples, automatically calculate the average, MAX Maximum, MIN Minimum and other results
10. The test results have a variety of coordinates Linear dispersion display: force value - time, force value - deformation, deformation - time
11. Test data can be automatically saved, up to 10,000 pieces can be saved
12. The machine comes with a micro printer that can print test results
13. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device
Principle
This product uses high-intensity light bars to fix the upper beam and countertop to form a high-rigidity portal frame structure. The stepping motor drives the beam up and down through the transmission mechanism to realize the test loading process. The precision automatic control and data collection system realizes the full digitalization adjustment of the data collection and control process.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries as well as product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters
2. Start testing with one click
3. The system automatically collects data and calculates
4. Display test results and Linear dispersion
5. Query and print the test results
Notice
• Power supply voltage AC 220V 50HZ before use
• Pay attention to whether the overload protection and limit protection functions are normal
• Use emergency shutdown devices in emergencies
• Regularly check the leakage protection device
• Select the appropriate test mode according to the sample type
• Pay attention to Graduation and unit selection when setting parameters
Storage capacity limitations when saving data
