Overview

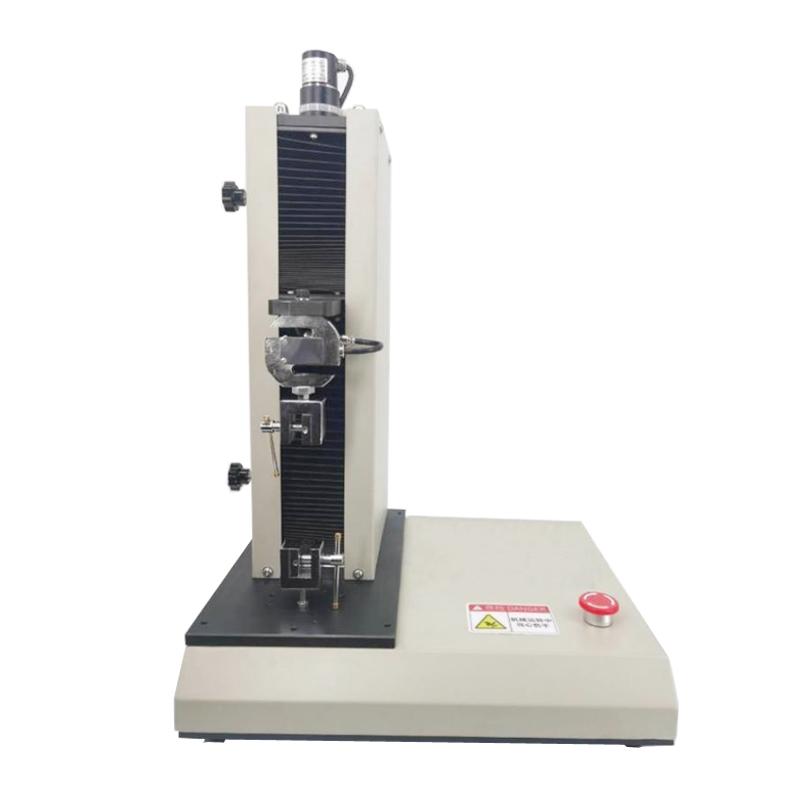

ZYD-100 desktop microcomputer-controlled universal testing machine is a Small Benchtop testing equipment launched by HBO, which is small in size and easy to place on the desktop for operation. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts automatic control and data collection system to realize full digitalization adjustment, which can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation compression deformation, elongation and other indicators. After the test, the Windows software automatically calculates and displays the results and Linear dispersion.
Features
1. Chinese WINDOWS Interface Software supports mouse operation
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, the starting speed, Test speed and reset speed are set separately
5. Specimen deformation and loading force can be set to support delayed holding, automatic return or stop
6. Provide a variety of test modes including general tensile/compression test, force holding test, flexural test, etc
7. Real-time display of displacement, deformation, speed, force value and other parameters and dynamic display Linear dispersion
8. Support automatic transmission, qualified judgment, automatic data storage and multiple format export
9. Equipped with overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
Precise automatic control and data collection system to achieve full digitalization adjustment, through the stepper motor drive, real-time collection of displacement, deformation, force value and other data during the test, by the Windows host computer software automatically calculate the mechanical properties according to the preset parameters, and dynamically display the test Linear dispersion and results.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, Paper, Manufacturing, Product mass supervision department, Teaching demonstration in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters on the computer with the mouse
2. Select the appropriate test mode
3. Install the specimen and start the test
4. The system automatically completes data collection and process control
5. After the test, the software automatically calculates and displays the results
6. Query, save, or print test data and reports
Notice
• Power supply voltage AC 220V 50HZ before use
• Test space Travel is 170mm
• Test speed range controlled within 1-400mm/min
• Regularly check overload protection and limit protection functions
• Keep equipment clean and avoid use in humid environments
