Overview

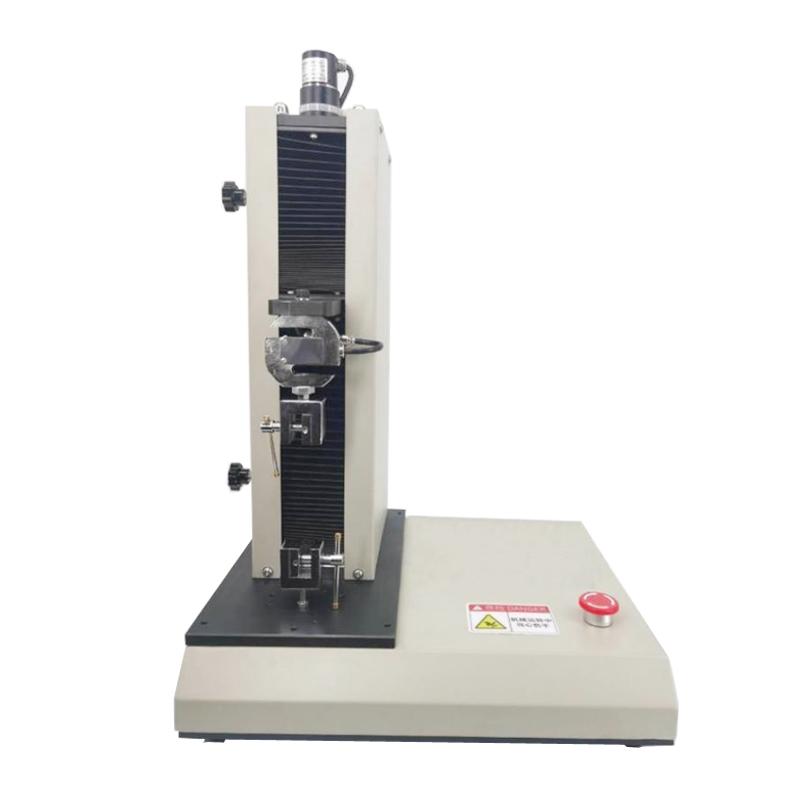

ZYD-200 desktop microcomputer-controlled universal testing machine is a desktop small test equipment launched by HBO, which is small in size and easy to place on the table for operation. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts automatic control and data collection system to realize full digitalization adjustment, which can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other indicators. After the test, the Windows software automatically calculates and displays the results and Linear dispersion. All operations are completed on the computer through the mouse.
Features
1. Chinese WINDOWS interface software, menu prompts mouse operation
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, the starting speed, Test speed and reset speed are set separately
5. The sample deformation and loading force can be set, and it can be delayed, automatically returned or stopped after reaching the preset force
6. Provide a variety of test modes including universal tensile, compression, force holding, three/four point bending, disbonding, tearing, waterproof membrane and electrical casing test
7. Force holding and stress testing with PID speed force value double loop control
8. Real-time display of displacement, deformation, speed, force value, peak force value and test time
9. The test results are displayed with multi-coordinate Linear dispersion (force value - time, force value - deformation, deformation - time)
10. Automatic transmission function, Test speed changes according to the preset program
11. Qualification judgment function, automatically judge according to the preset Standard value range
12. Test data and Linear dispersion automatically unlimited storage to computer
13. Test data can be queried and exported in word or excel format
14. Test reports can be prepared and printed in user format
15. Comes with overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
Precise automatic control and data collection system are used to realize the full digitalization adjustment of data collection and control process. The mechanical properties of the material are detected in the tensile compression test. After the test, the Windows host computer software automatically calculates and displays the results and Linear dispersion according to the set test parameters.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters on the computer with the mouse
2. Start the test, the system automatically performs data collection and control
3. Real-time display of data and Linear dispersion during the test
4. After the test, the software automatically calculates and displays the results
5. Query, store, or export test data
6. Prepare and print test reports
Notice
• Equipment comes with overload protection and limit protection device
• Equipped with emergency shutdown devices to ensure safe operation
• With leakage protection function
• Test parameters should be set correctly before operation
• Pay attention to the real-time data display during the test
• Regularly check the operating status of the equipment
