Overview

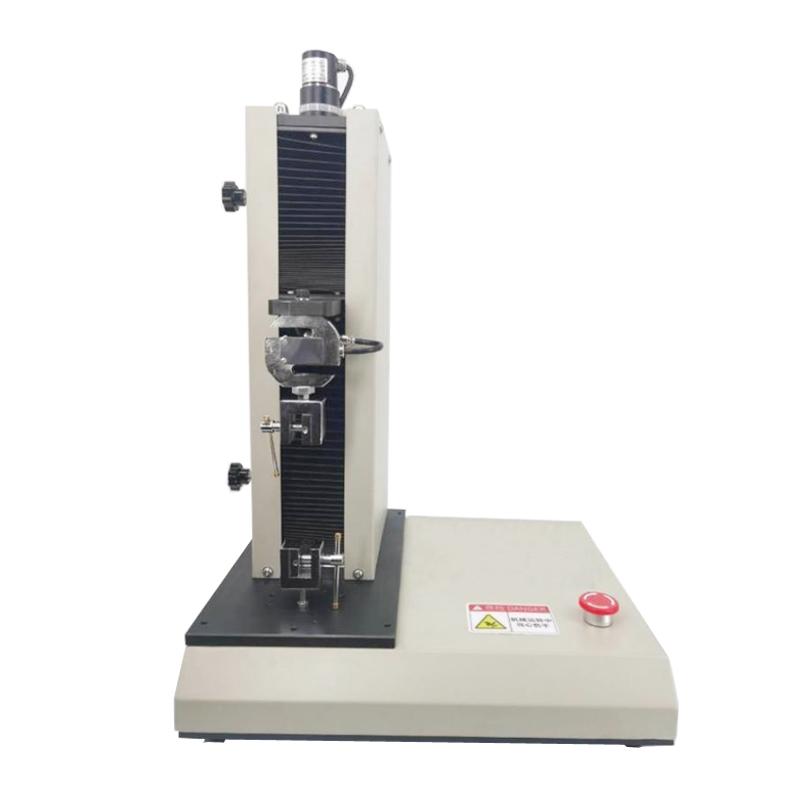

ZYD-300 is a desktop microcomputer-controlled universal testing machine launched by HBO, which is small in size and easy to place on the table for operation. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts precision automatic control and data collection system to achieve full digitalization adjustment. It can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other indicators. The test results are automatically calculated and displayed by Windows software.
Features
1. Chinese WINDOWS Interface Software supports mouse operation
2. Supports 6 force units and 3 displacement units
3. Graduation can be freely set to 5 decimal places
4. The starting speed, Test speed and reset speed can be set separately
5. Provide a variety of test modes including universal tensile compression, force holding, bending, disbonding, tearing, etc
6. Real-time display of displacement, deformation, running speed, force value and other parameters
7. Test results are automatically stored and the number is unlimited
8. Comes with overload protection, limit protection and emergency shutdown device
Principle
Adopt precise automatic control and data collection system to realize the full digitalization adjustment of data collection and control process. The technical indicators of the material are detected in the tensile compression test, and the Windows host computer software automatically calculates and displays the results and Linear dispersion according to the set test parameters after the test.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries as well as product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters on the computer with the mouse
2. Select the appropriate test mode
3. Start the test, and the system automatically collects data
4. After the test, the software automatically calculates the results
5. Query display and print test results
Notice
• Pay attention to the overload protection and limit protection functions that come with the device
• Power supply voltage is AC 220V 50HZ before use
• Test space is 260mm (excluding fixture), pay attention to the sample size
• Test speed range 1-400mm/min, speed parameters need to be set reasonably
• Device weight 48Kg, need to ensure stable placement
