Overview

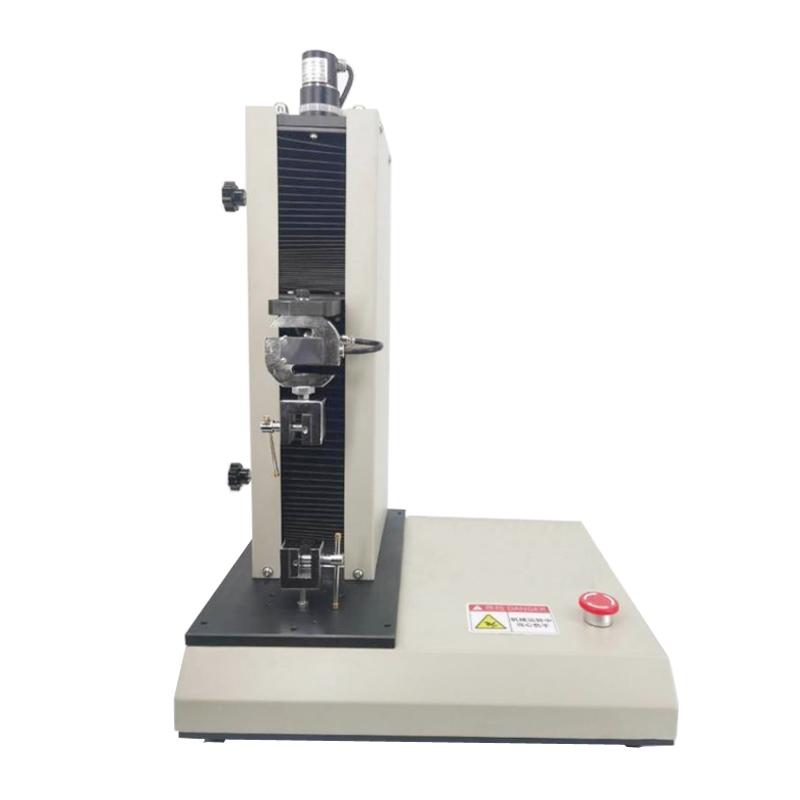

ZYD-500 desktop microcomputer-controlled universal testing machine is a Small Benchtop testing equipment launched by HBO, which is small in size and easy to place on the desktop for operation. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts automatic control and data collection system to realize full digitalization adjustment, which can detect parameters such as maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, and elongation. The test results are automatically calculated and displayed by Windows software. Linear dispersion and data support query and printing.
Features
1. Chinese Windows Interface Software supports mouse operation
2. Provide 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement Graduation support up to 5 decimal places
4. The running speed can be set, and the starting speed, Test speed and reset speed can be adjusted separately
5. Specimen deformation and loading force can be set to support delayed holding, automatic return or stop
6. Provide a variety of test modes including universal tensile, compression, force holding, bending, disbonding, tearing, waterproof membrane and electrical casing testing
7. Real-time display of displacement, deformation, speed, force value, peak force value and test time
8. Linear dispersion supports three coordinate displays of force value-time, force value-deformation, deformation-time
9. The automatic transmission function can change the speed according to the preset program
10. The qualification judgment function can be automatically determined according to the preset standard range
11. Test data and Linear dispersion are automatically stored in unlimited quantities
12. Data can be queried and exported in Word or Excel format, and custom format report printing is supported
13. Equipped with overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
Precise automatic control and data collection system are used to realize full digitalization adjustment, and the technical indicators of the material are detected in the tensile compression test through stepper motor drive. After the test, the Windows host computer software automatically calculates the results according to the set parameters and displays the corresponding Linear dispersion. All operations can be completed on the computer by the mouse.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Start the test software on the computer with the mouse
2. Set the test parameters including force value unit, displacement unit, Graduation, running speed, deformation and loading force
3. Select the corresponding test mode
4. Start the test, the system automatically collects data and displays it in real time
5. Software automatically calculates results and Linear dispersion after the test
6. Query, export or print the test report
Notice
• Power supply voltage 220V 50HZ
Travel 170mm and Test space 260mm
• Check overload protection and limit protection functions before use
• Pay attention to the use of emergency shutdown devices during operation
• Regularly check the leakage protection device
• Keep the equipment within the specifications
