Overview

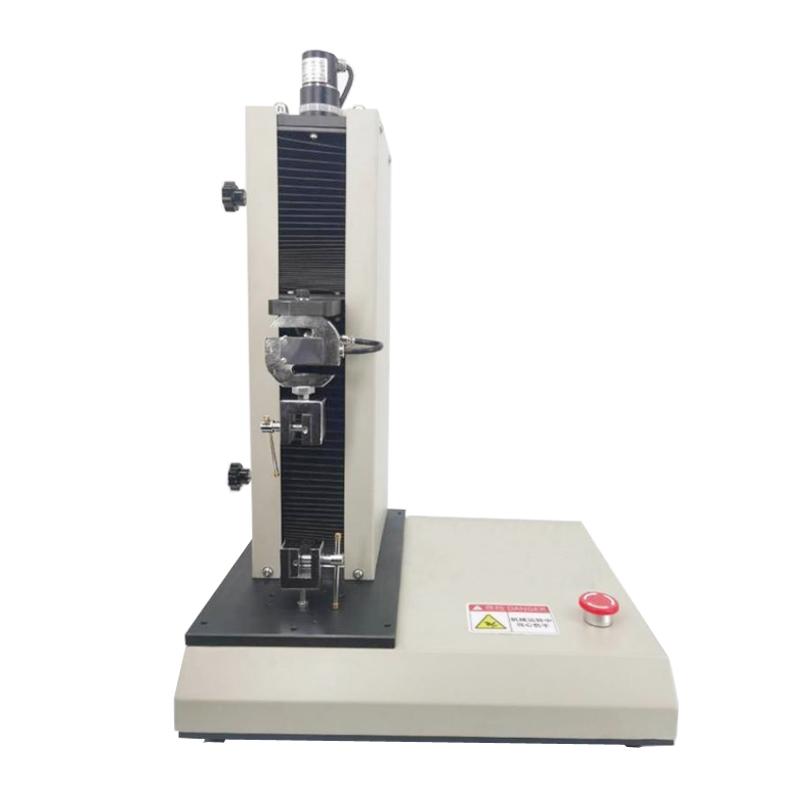

The ZYD-1000 desktop microcomputer-controlled universal testing machine is a compact test equipment produced by HBO. It is small in size and easy to place on the desktop. The operator can easily operate it in a sitting position. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts automatic control and data collection system to realize full digitalization adjustment. It can detect the maximum bearing tension, tensile and compressive strength, elongation and compression deformation, elongation and other indicators. After the test, the Windows software automatically calculates and displays the results and Linear dispersion. All operations are completed on the computer through the mouse.
Features
1. Chinese WINDOWS Interface Software supports mouse operation
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, the starting speed, Test speed and reset speed are set separately
5. Specimen deformation and loading force can be set to support delayed holding, automatic return or stop
6. Provide a variety of test modes including general tensile/compression test, force holding test, flexural test, etc
7. Real-time display of displacement, deformation, speed, force value and other parameters and dynamic display Linear dispersion
8. Test results support multiple coordinate Linear dispersion display
9. Equipped with automatic transmission, qualification judgment, and automatic storage functions
10. Data can be exported in Word or Excel format, and custom report formats are supported
11. Equipped with overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
The testing machine adopts a precise automatic control and data collection system to realize the full digitalization adjustment of data collection and control process. During the tensile compression test, the load is applied to the sample through the stepper motor drive system, and the parameters such as force value, displacement and deformation are monitored in real time. All the detection data are collected and processed by the Windows host computer software. After the test, various mechanical properties are automatically calculated and the test Linear dispersion is generated.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Start the test software on the computer with the mouse
2. Set test parameters including force value unit, displacement unit, Graduation, running speed, etc
3. Select the corresponding test mode
4. Install the specimen and set the deformation and loading force parameters
5. Start the test, the system automatically collects data and dynamically displays Linear dispersion
6. After the test, the software automatically calculates the results
7. Query, export, or print test data and reports
Notice
Equipment is equipped with overload protection device, pay attention to the load range when using
• With limit protection function, avoid exceeding the effective Travel during operation
• Emergency shutdown devices can be used in emergencies
• The equipment has leakage protection to ensure the safety of electricity use
• All parameters need to be set correctly before the test
• Sample installation needs to be firm and reliable
• Regularly check the operating status of the equipment
