Overview

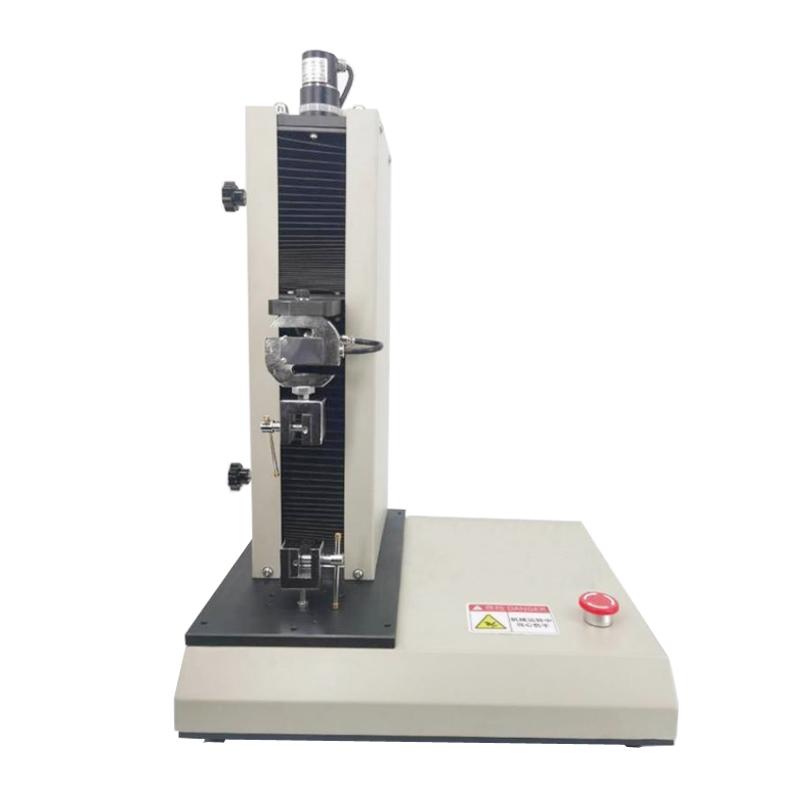

The ZYD-2000 desktop microcomputer-controlled universal testing machine is a Small Benchtop testing equipment launched by HBO, which is small in size and easy to place on the desktop for operation. The equipment is mainly used for metal, Non-metallic and composite mechanical properties testing. It uses precision automatic control and data collection system to realize full digitalization adjustment. It can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other indicators of the material. The test data is automatically calculated by Windows software and the results are displayed with Linear dispersion.
Features
1. Chinese WINDOWS Interface Software supports mouse operation
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. Running speed can be set, starting speed, Test speed, reset speed can be set separately
5. Specimen deformation and loading force can be set to support delay holding function
6. Provide a variety of test modes including general tensile test, general compression test, general force holding test, etc
7. Real-time display of displacement, deformation, running speed, real-time force values and other parameters
8. Test results support multiple coordinate Linear dispersion display
9. Equipped with automatic transmission, qualification judgment, and automatic storage functions
10. Test data can be exported in word or excel format, and custom report printing is supported
11. Comes with overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
The equipment adopts a precise automatic control and data collection system to realize the full digitalization adjustment of data collection and control process. During the tensile compression test, the stepper motor drive system applies force to the sample according to the set test parameters, and collects data such as displacement, deformation and force value in real time. After the test, the mechanical properties are automatically calculated by the Windows host computer software.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters conditions on the computer with the mouse
2. Select the appropriate test mode
3. Start the test, and the equipment automatically completes the test process
4. After the test, the software automatically calculates and displays the results and Linear dispersion
5. Query and print test results
Notice
• The device comes with overload protection and limit protection functions
• Equipped with emergency shutdown device and leakage protection device
• Test parameters need to be set correctly before the test
• Power supply voltage 220V 50HZ
• Test space is 260mm (excluding fixture)
• Pay attention to safety operation norms during use
