Overview

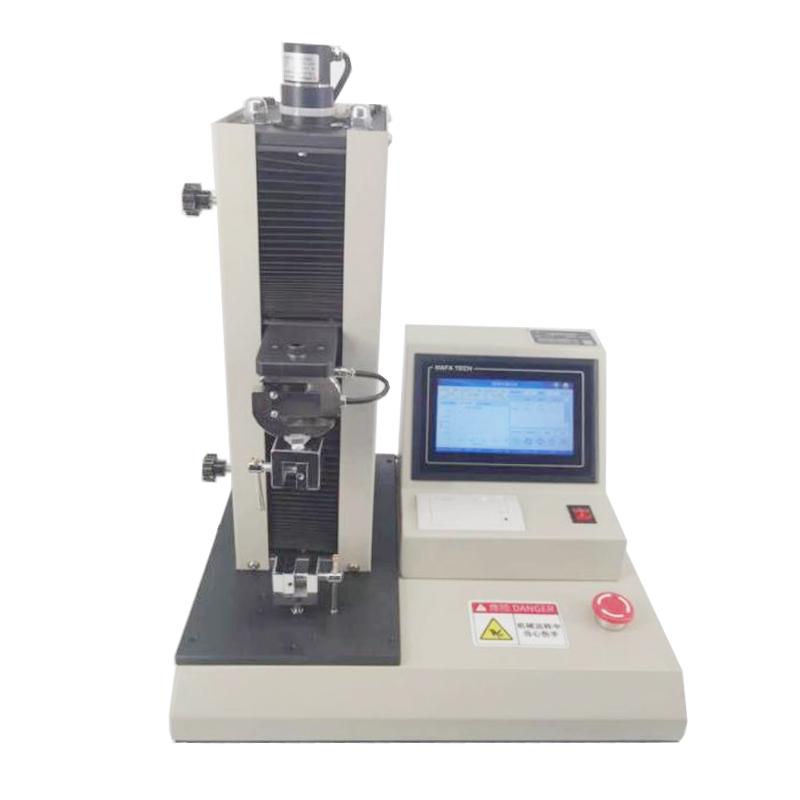

ZY-100 desktop electronic universal testing machine is a compact test equipment produced by HBO, which is small in size and easy to place on the desktop, and can be easily operated by the operator sitting. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts precision automatic control and data collection system to realize full digitalization adjustment. It can detect parameters such as maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation, etc. After the test, the results are automatically calculated and displayed with Linear dispersion, and supports query and printing.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2.6 units of force value N, kgf, lbf, gf, kN, tf
3. 3 displacement units mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 5 decimal places; displacement Graduation can be set up to 5 decimal places
5. Running speed can be set (speed controllable), starting speed, Test speed, reset speed can be set separately, improve test efficiency and test accuracy
6. Specimen deformation can be set (displacement controllable)
7. The loading force can be set (the force value is controllable). After reaching the preset force, it can be delayed (time controllable), automatically return to the initial position or stop immediately
8. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
9. Provide general tensile test, general compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof membrane test and electrical casing test and other test modes, including tensile and compressive strength test and elongation compression rate and other functions
10. Force holding type test and pressure type test (except three/four point bending test) with PID speed force value double loop control
11. Can test 10 samples, automatically calculate their average value, MAX Maximum, MIN Minimum and other test results
12. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time
13. After the test is completed, the data bar can be automatically saved, up to 10,000 pieces of data can be saved
14. The machine comes with a micro printer that can print test results
15. Comes with overload protection and limit protection, emergency shutdown device, leakage protection device
Principle
Precise automatic control and data collection system are used to realize the full digitalization adjustment of data collection and control process. The technical indicators of the material are detected in the tensile compression test, and the microcomputer controller automatically calculates and displays the results and Linear dispersion according to the preset parameters after the test.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set test parameters, including force value unit, displacement unit, Graduation, running speed, sample deformation, loading force, etc
2. Select the test mode, such as universal tensile test or compression test, etc
3. Start the test with one click, and observe the displacement, deformation, running speed, real-time force value and other data in real time
4. Automatically calculate and display results with Linear dispersion after the test
5. Query or print the test results, and the data is automatically saved
Notice
• Power supply voltage 220V 50HZ
• Check whether the overload protection, limit protection, emergency shutdown device and leakage protection device are normal before operation
• Graduation and speed range when setting parameters to avoid exceeding equipment specifications
• Monitor data in real time during testing to prevent abnormal situations
Maintain equipment regularly to ensure accuracy and safety
