Overview

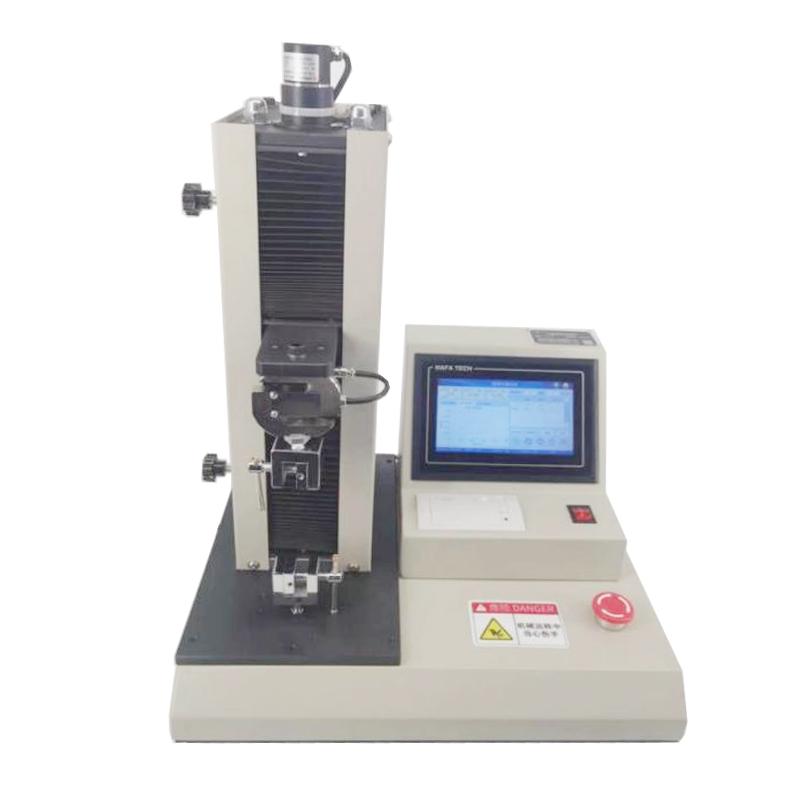

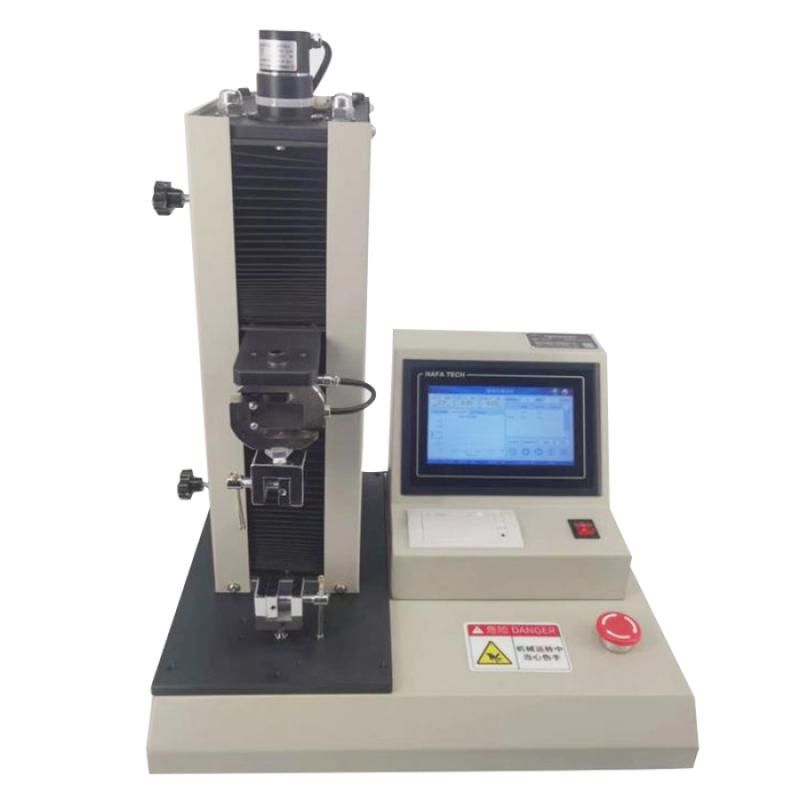

The ZY-300 desktop electronic universal testing machine is a compact test equipment launched by HBO, which is small in size and easy to place on the desktop, and can be easily operated by the operator sitting. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts precision automatic control and data collection system to realize full digitalization adjustment. It can detect parameters such as maximum bearing tension, tensile and compressive strength, elongation and compression deformation, and elongation. After the test, the microcomputer automatically calculates and displays the results and Linear dispersion, and supports query and printing.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Graduation Free setting: Force value Graduation up to 5 decimal places; Displacement Graduation up to 5 decimal places
5. The running speed can be set, and the starting speed, Test speed and reset speed are set separately to improve the test efficiency and accuracy
6. Specimen deformation can be set
7. The loading force can be set, and it can be delayed, automatically returned or stopped immediately after reaching the preset force
8. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
9. Provide a variety of test modes: universal tensile test, universal compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof membrane test and electrical casing test
10. Force holding and pressure type test with PID speed force value double loop control
11. Can test 10 samples, automatically calculate the average, MAX Maximum, MIN Minimum
12. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time
13. Test data is automatically saved, up to 10,000 pieces
14. The machine comes with a micro printer that can print test results
15. Comes with overload protection, limit protection, emergency shutdown device, leakage protection device
Principle
In the tensile compression test, the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other technical indicators of the material are detected. After the test, the microcomputer controller automatically calculates and displays the results and Linear dispersion according to the preset parameters.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set test parameters, including force value unit, displacement unit, Graduation, running speed, sample deformation, loading force, etc
2. Select test mode, such as universal tensile test or compression test
3. Start the test with one click and observe the displacement, deformation, speed, force value and other data in real time
4. After the test, the microcomputer automatically calculates the results and displays Linear dispersion
5. Query and print the test results, and the data is automatically saved
Notice
• Power supply voltage 220V 50HZ
• Check overload protection and limit protection functions before operation
• Use emergency shutdown devices to stop immediately in abnormal situations
• Pay attention to the status of the leakage protection device to ensure safety
• Real-time monitoring of force and displacement data during testing
Storage capacity limit (up to 10,000 items)
• Confirm that the printer is working normally before printing the test results
