Overview

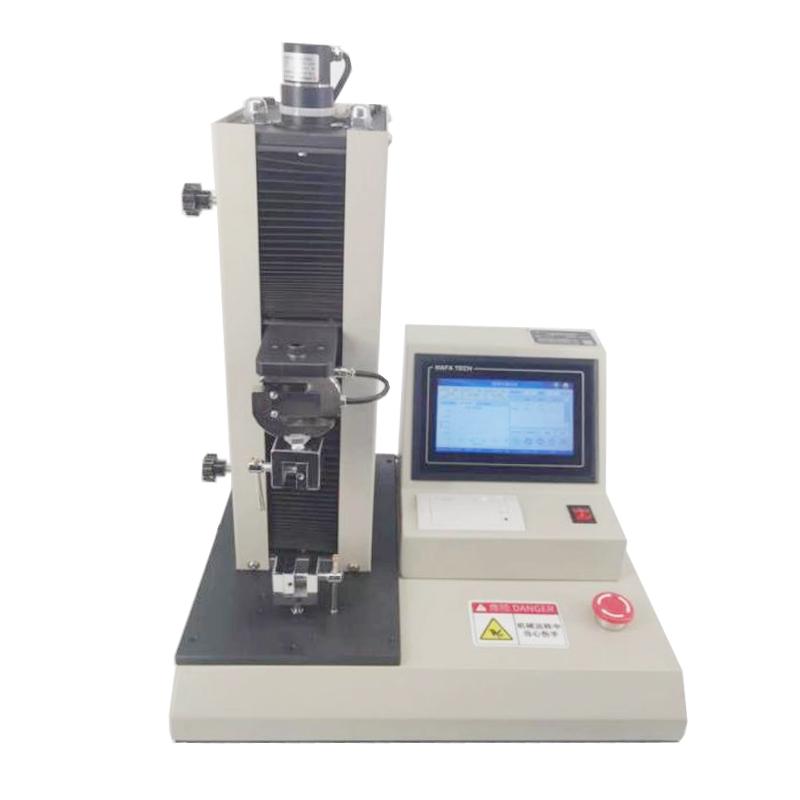

The ZY-500 desktop electronic universal testing machine is a compact device of the HBO brand, which is small in size and easy to place on the desktop, and can be easily operated by the operator sitting. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts precision automatic control and data collection system to realize full digitalization adjustment. It can detect the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other indicators. After the test, the microcomputer automatically calculates and displays the results and Linear dispersion, and supports query and printing.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2. Support 6 force units: N, kgf, lbf, gf, kN, tf
3. Support 3 displacement units: mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 5 decimal places; displacement Graduation can be set up to 5 decimal places
5. The running speed can be set (speed controllable), the starting speed, Test speed and reset speed can be set separately to improve the test efficiency and accuracy
6. Specimen deformation can be set (displacement controllable)
7. The loading force can be set (the force value is controllable), and it can be delayed after reaching the preset force (the time is controllable), automatically return to the initial position or stop immediately
8. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
9. Provide a variety of test modes: universal tensile test, universal compression test, general force holding test, three/four point bending test, disbonding performance test, tear performance test, waterproof coil test and electrical casing test, including tensile and compressive strength test and elongation compression rate function
10. Force holding type test and pressure type test (except three/four point bending test) with PID speed force value double loop control
11. Can test 10 samples, automatically calculate the average, MAX Maximum, MIN Minimum and other results
12. The test results are displayed in a variety of coordinates: force value - time, force value - deformation, deformation - time
13. After the test is completed, the data bar can be automatically saved, up to 10,000 pieces of data can be saved
14. The machine comes with a micro printer that can print test results
15. Comes with overload protection, limit protection, emergency shutdown device and leakage protection device
Principle
Precise automatic control and data collection system are used to realize the full digitalization adjustment of data collection and control process. The technical indicators of the material are detected in the tensile compression test, and the microcomputer controller automatically calculates and displays the results and Linear dispersion according to the preset parameters after the test.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set the test parameters
2. Start testing with one click
3. Real-time observation of display data
4. Automatically calculate and display the results after the test
5. Query or print the test results
Notice
• Power supply voltage 220V 50HZ
• Check that overload protection, limit protection, emergency shutdown device and leakage protection device are functioning properly before operation
• Select the appropriate test mode according to the sample type
• Graduation accuracy when setting force and displacement parameters
Storage capacity limit (up to 10,000 items)
