Overview

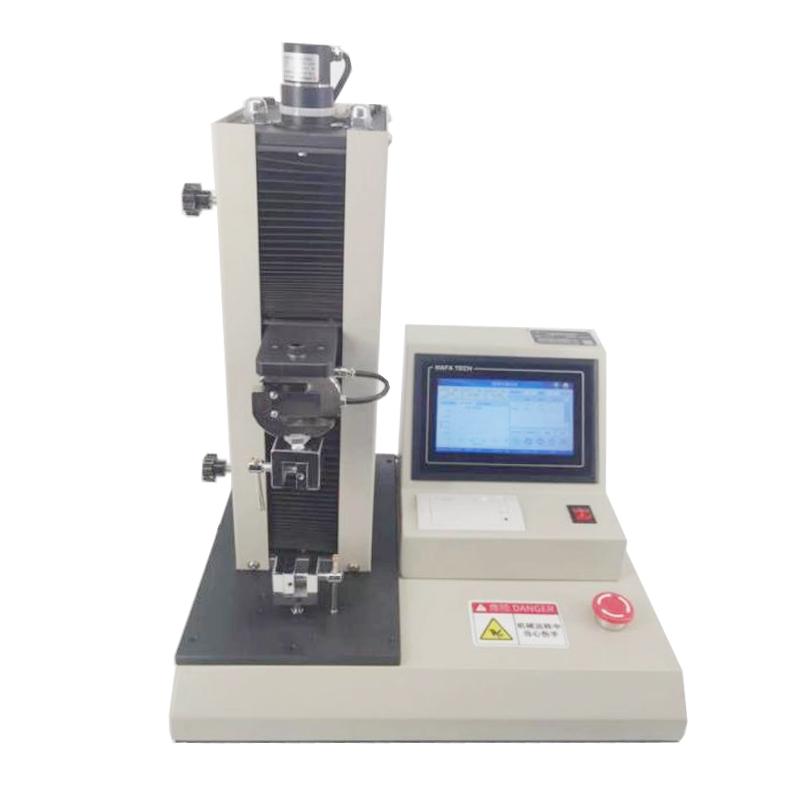

ZY-2000 desktop electronic universal testing machine is a compact test equipment launched by HBO, which is small in size and easy to place on the desktop, and can be easily operated by the operator sitting. It is mainly used for metal, Non-metallic and composite mechanical properties testing. It adopts precision automatic control and data collection system to realize full digitalization adjustment. It can detect parameters such as maximum bearing tension, tensile and compressive strength, elongation and compression deformation, and elongation. After the test, the microcomputer automatically calculates and displays the results and Linear dispersion, and supports query and printing.
Features
1.7-Inch touch display screen, friendly human-machine interaction interface, simple and easy to use operation, one-click start test
2. Support 6 force value units (N, kgf, lbf, gf, kN, tf) and 3 displacement units (mm, cm, in)
3. Graduation can be set freely, force value and displacement can be set up to 5 decimal places
4. The running speed can be set, and the starting speed, Test speed and reset speed are adjusted separately to improve the test efficiency and accuracy
5. The sample deformation and loading force can be set, and it can be delayed, automatically returned or stopped after reaching the preset force
6. Real-time display of displacement, deformation, running speed, real-time force value, peak force value and test time
7. Provide a variety of test modes, including universal tensile, compression, force holding, three/four point bending, disbonding, tearing, waterproof membrane and electrical casing test
8. Force holding and stress testing with PID speed force value double loop control
9. Can test 10 samples, automatically calculate the average, MAX Maximum, MIN Minimum
10. Test results support Force-Time, Force-Deformation, Deformation-Time Linear dispersion display
11. Test data is automatically saved, up to 10,000 pieces, and the machine comes with a micro-printer
12. Comes with overload protection, limit protection, emergency shutdown and leakage protection devices
Principle
In the tensile compression test, the maximum bearing tensile pressure, tensile and compressive strength, elongation and compression deformation, elongation and other technical indicators of the material are detected. After the test, the microcomputer controller automatically calculates and displays the results and Linear dispersion according to the preset parameters.
Applications
Metal, Adhesive, Pipe, Profile, Aerospace, Petrochemicals, Waterproofing Membrane, Wire and cable, Spinning & weaving, Fiber, Rubber, Ceramics, Food, Pharmaceutical Encasement, Geotextile, Film, Wood, paper and other manufacturing industries, product mass supervision departments at all levels, teaching demonstrations in colleges and universities
Standards
GB/T16491-1996、GBT232-2010、GBT6569-2006、GB/T 12833-2006、GBT 16491-2008、JJG139-1999、JJG 157-1995、GB/T 2611-2007
Steps
1. Set test parameters, including force value unit, displacement unit, Graduation, running speed, sample deformation and loading force
2. Select the test mode (e.g. universal stretching, compression, etc.)
3. Place the specimen and fix it
4. Start the test with one click, and the device will run automatically
5. Real-time observation of display data
6. After the test, the microcomputer automatically calculates and displays the results
7. Query or print test data
Notice
• Power supply voltage 220V 50HZ
• Check overload protection and limit protection functions before operation
• Use emergency shutdown devices in emergencies
• Pay attention to the normal working state of the leakage protection device
• The sample should be placed firmly to avoid loosening during the test
• Periodic calibrated force value Indication Error and displacement accuracy
