Overview

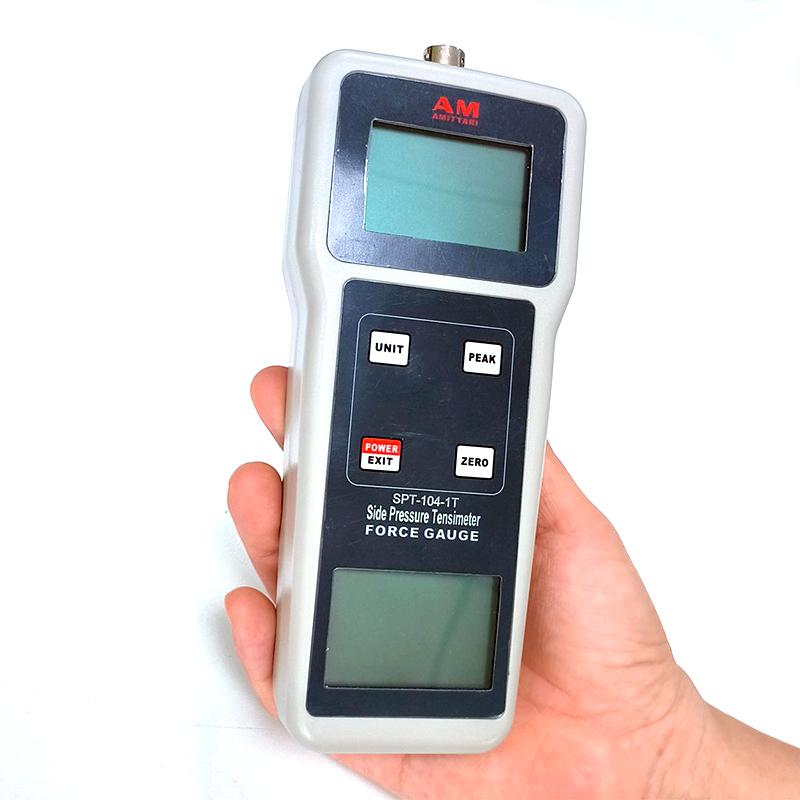

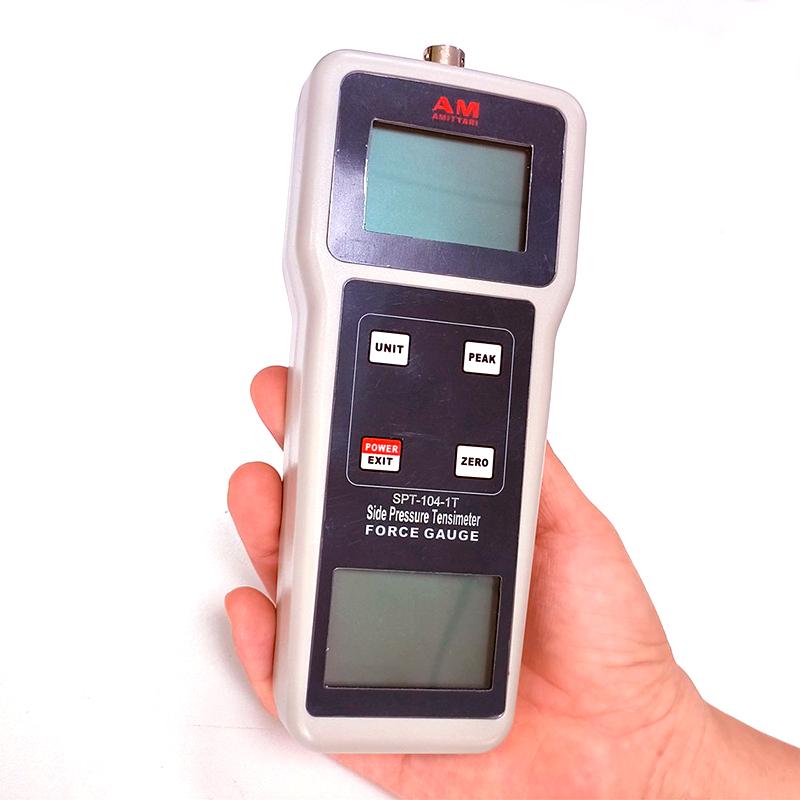

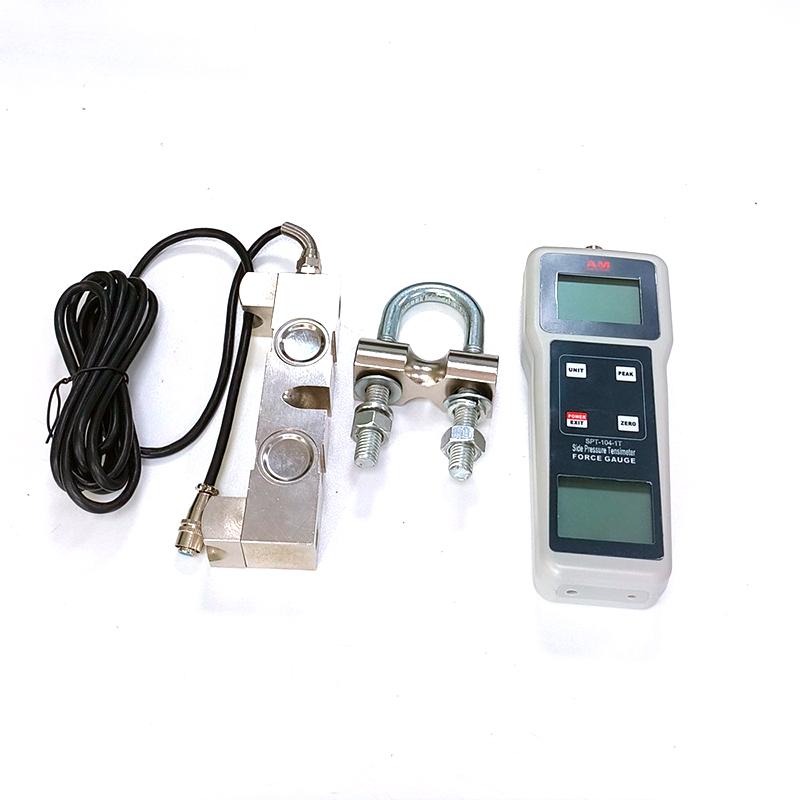

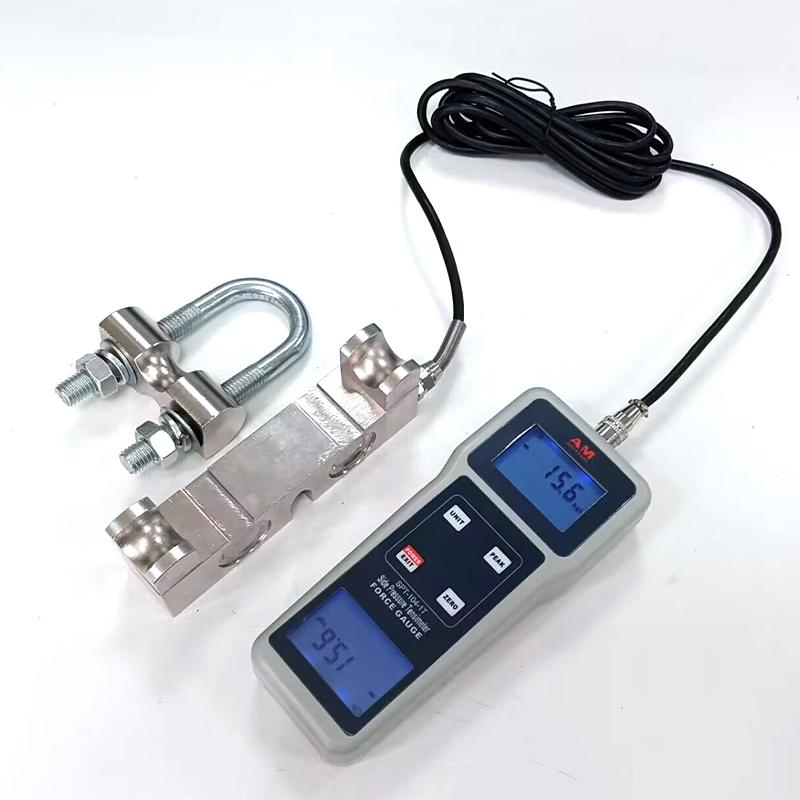

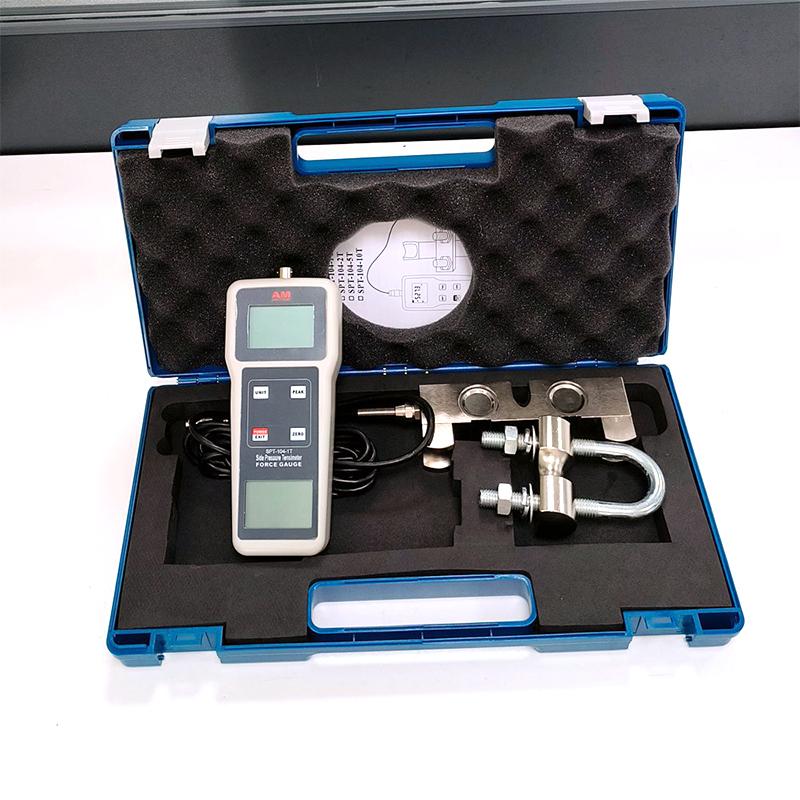

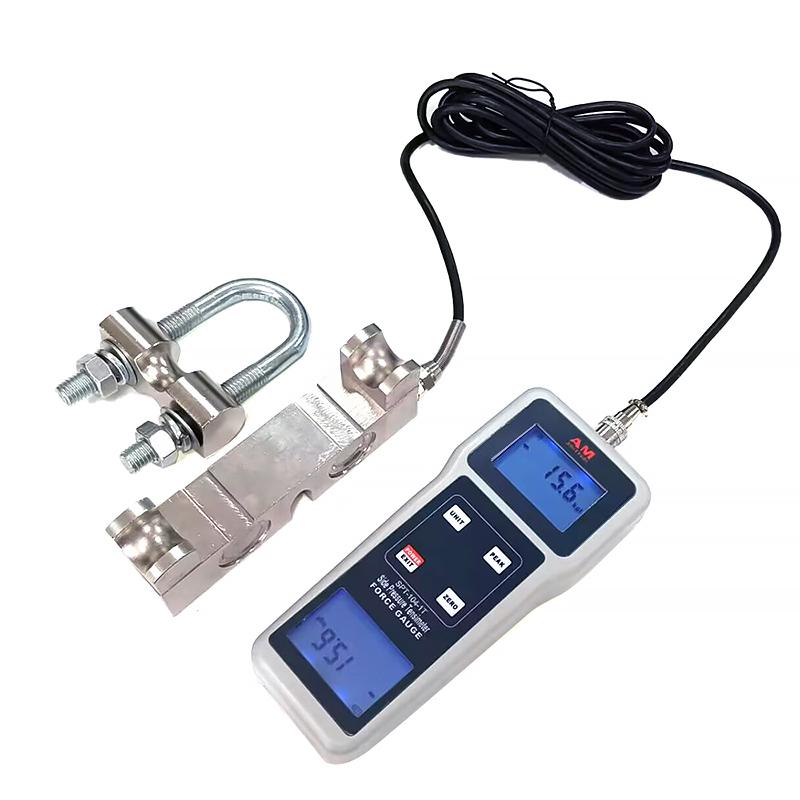

AMITTARI SPT-104-1T is a special instrument for measuring the tension of wind towers, signal towers, power transmission systems and other ropes. The instrument has the advantages of easy operation and easy portability, and provides a variety of test modes to meet different test needs.
Features
1. High Accuracy and high resolution, digital display ignores poor.
2. Provide N (newton), kg (kilogram), lb (pound), g (gram) four measurement units to choose from and support mutual conversion.
3. Peak hold function, keep peak display until manually cleared.
4. Can be powered by alkaline battery or 5V DC power supply.
Principle
Sensor measurement of the tension of the rope converts the force value into an electrical signal, which is processed and displayed digitally on a four-digit large LCD screen. It supports peak and instantaneous value measurement and has a forward and reverse dual display screen to ensure accurate readings.
Applications
Wind towers, signal transmission towers, power transmission systems
Standards
Level 0.5 accuracy
Steps
1. Install the battery or connect the 5V DC power supply.
2. Select the required force unit (kgf, N, Lbf).
3. Connect the instrument to the rope to be tested.
4. Apply tension and observe the display reading.
5. Use the peak hold function to record the MAX Maximum.
6. Manually clear or wait 10 minutes for automatic shutdown.
Notice
• Avoid overload use, the allowable load is 150% F.s, and a beep will sound when it exceeds 110% F.s.
• The working environment should be free of source and corrosion medium.
• Operating temperature range is 0 ℃~ 40 ℃, Humidity is less than 80%.
• Regularly check the power supply to ensure that the battery or DC power supply is properly powered.
