Overview

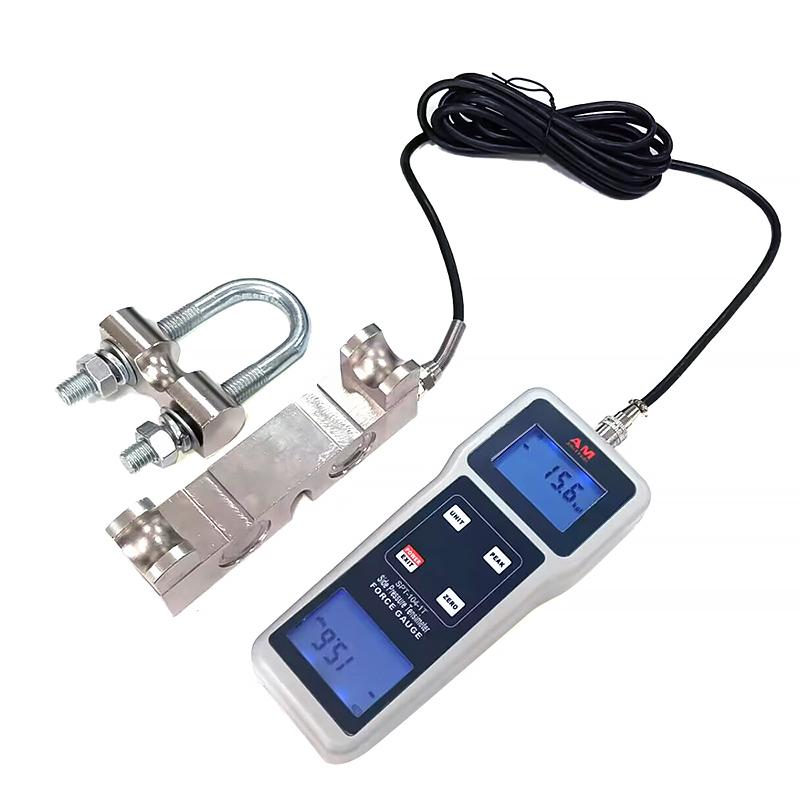

The side tension tester is a special instrument of AMITTARI brand SPT-104-2T model, which is used for the measurement of the tension of wind towers, signal towers, power transmission systems and other ropes. The product has the advantages of easy operation and easy portability, and provides a variety of test modes to meet different test needs.
Features
1. High Accuracy and high resolution, digital display ignores poor
2. Provide N (newton), kg (kilogram), lb (pound), g (gram) four measurement units to choose from and support mutual conversion
3. Peak hold function, which can maintain peak display until manually cleared
4. Support alkaline battery power supply and 5V DC power supply two power supply methods
Principle
Sensor measures the tension of the rope, converts the force value into an electrical signal and displays it on the digital display screen. The instrument adopts a four-digit large liquid crystal forward and reverse dual display screen, which can display peak and instantaneous values, and has the functions of automatic shutdown and manual shutdown.
Applications
Wind towers, signal transmission towers, power transmission systems
Steps
1. Install the battery or connect the 5V DC power supply
2. Select the desired measurement unit
3. Connect the instrument to the rope to be tested
4. Read the force data on the display
5. Use the peak hold function to record the maximum pull value
6. Manually clear or wait for automatic shutdown after the test is completed
Notice
• Operating temperature range is 0 ℃~ 40 ℃, beyond the range may affect Measurement accuracy
• Operating humidity should be less than 80%, avoid use in humid environment
• Working environment should be free of source and corrosion medium
• The allowable load is 150% F.s, and a beep will sound when it exceeds 110% F.s
• Make sure the power supply is sufficient before use, you can choose 2 AA batteries or 5V DC power supply
• Net weight of the instrument 1165g, pay attention to safety when carrying
• If there is no operation for 10 minutes, it will automatically shut down to save power.
