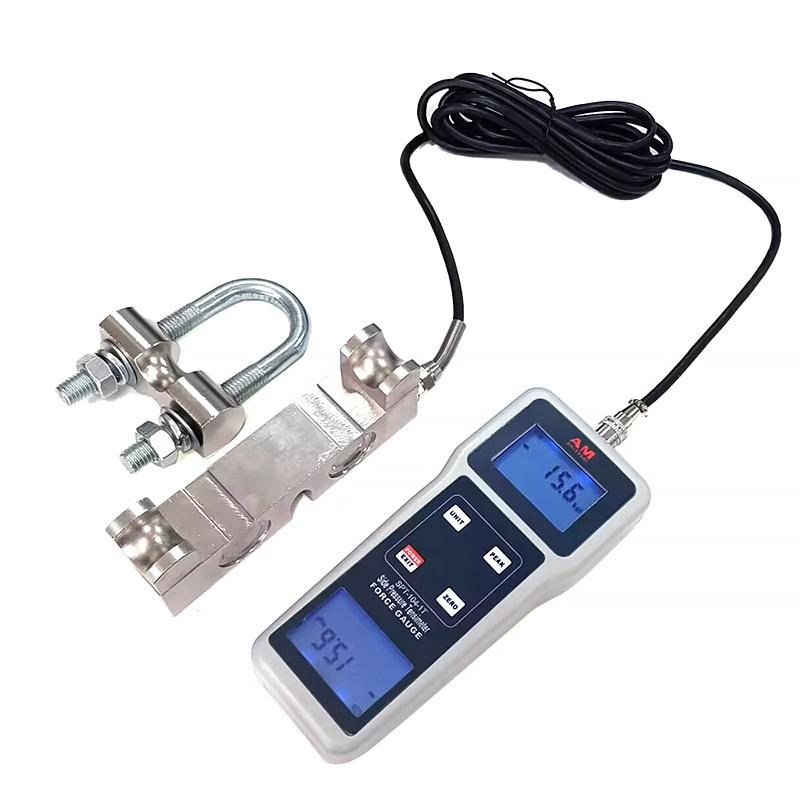

AMITTARI SPT-104-5T Side Pressure Tension Tester, Rope Tension Tester High Accuracy Dual Display

Name: AMITTARI SPT-104-5T Side Pressure Tension Tester, Rope Tension Tester High Accuracy Dual Display
Brand: AMITTARI
SKU: NB047687
Price: 480.0 USD
Availability: InStock

$ 480.00Ex works

With 0.5 accuracy and +/- 0.5% FS Precision, it supports automatic conversion of four force units, peak hold function locks MAX Maximum, and dual power supply adapts to different working environments.

Model

Get Quote

Category : Tensiometer

Brand : AMITTARI

SKU : NB047687

Service :The delivery and service By NBCLab.Com

Overview

The side tension tester is a special instrument of AMITTARI brand SPT-104-5T model, which is used for the measurement of the tension of ropes such as wind towers, signal towers, and power transmission systems. The instrument has the advantages of easy operation and easy portability, and provides a variety of test modes for the convenience of testers.

Features

1. High Accuracy and high resolution, digital display ignores poor 2. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other 3. Peak hold function, keep peak display until manually cleared 4. Can be powered by alkaline battery or 5V DC power supply

Principle

Sensor measures the tension of the rope, converts the force value into an electrical signal, and displays it on the LCD screen in digital form after processing. The instrument adopts four large LCD forward and reverse dual display screens, supports peak and instantaneous value measurement, and has automatic alarm function.

Applications

Wind towers, signal transmission towers, power transmission systems

Standards

Level 0.5 accuracy

Steps

1. Install 2 AA batteries or connect 5V DC power supply 2. Select the desired force unit (kgf, N, Lbf) 3. Connect the instrument to the rope to be tested 4. Read the force data on the display 5. Manual clearing when using peak hold function 6. Manual shutdown after use or wait 10 minutes for automatic shutdown

Notice

• Operating temperature range is 0 ℃~ 40 ℃ • Operating humidity should be less than 80% • Working environment should be free of source and corrosion medium • The allowable load is 150% F.s, and a beep will sound when it exceeds 110% F.s • Avoid overloading to prevent damage to the instrument

Measurement Range
±5000kgf；±49000N；±11000Lbf
resolution
0.01kgf (<100kgf)、0.1kgf (≥100kgf)；0.1N (<1000N)、1N (≥1000N)；0.1Lbf (<1000Lbf)、1Lbf (≥1000Lbf)
accuracy class
Level 0.5
accuracy
+/- 0.5% FS (Range) +/- 1 digital peak
unit
kgf, N, Lbf
Measured value
Peak, instantaneous value
show
Four large LCD, forward and reverse dual display
shutdown mode
10 minutes automatic shutdown or manual shutdown
Backlight
Blue Backlight
Allowable load
150% F.s (buzzer alarm when it exceeds 110% F.s)
power supply
2 AA batteries or 5V DC power supply
Operating temperature
0℃~40℃
Operating humidity
< 80%
Operating environment
No source and corrosion medium around
Net weight
1165g
Host Size
175mmx80mmx36mm
Sensor Size
140mmx65mmx105mm
