Overview

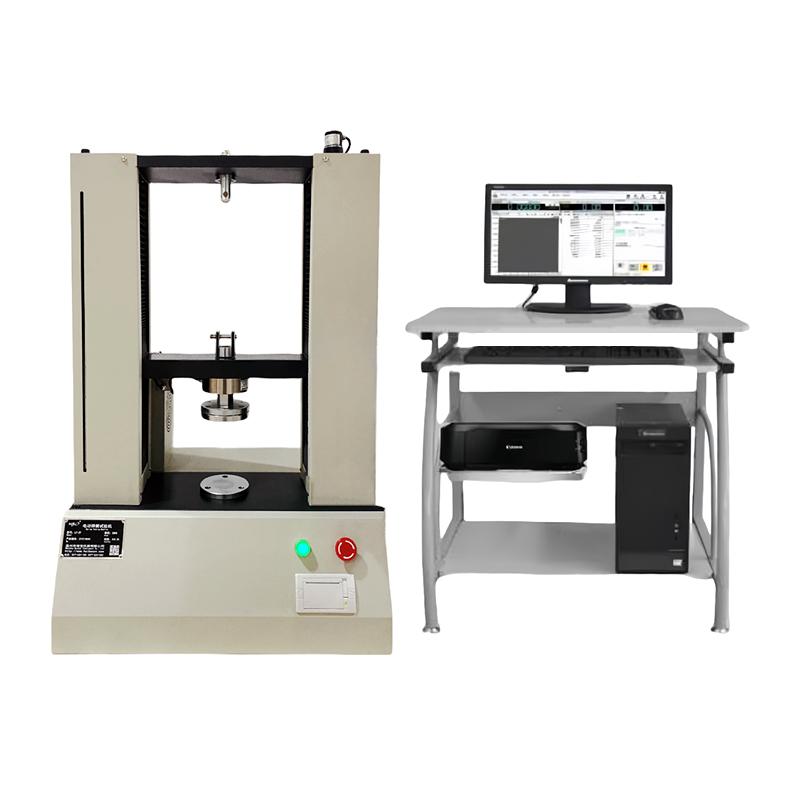

HBO LTD-5000 gantry type microcomputer controlled spring testing machine is a desktop spring special testing machine. It adopts a fully digital speed control system and stepper motor drive, and uses Windows as the Operating interface to realize screen display and automatic operation of test force, displacement, deformation and other parameters. It is mainly used in spring deformation, tensile force, spring coefficient and other performance detection. It can also test resilience samples. It meets JB/T7796-2017 standards and supports international standards such as ISO, JIS, ASTM, DIN. It is suitable for industrial and mining enterprises, technical supervision, scientific research institutes and other departments.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2.6 units of force value: N, kgf, lbf, gf, kN, tf
3. 3 displacement units: mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
5. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
6. Test software: Chinese WINDOWS interface, menu prompts, mouse operation
7. Display mode: Test data and Linear dispersion are dynamically displayed with the test process
8. Automatic transmission: Test speed can be automatically changed according to the preset program
9. Automatic reset: After the test is completed, the moving beam automatically returns to its original position
10. Qualification judgment: In addition to automatically obtaining the test results, the qualification judgment can be made according to the qualified range of the preset Standard value
11. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
12. Test data: Test data can be queried and exported in word or excel format
13. Test report: Test report can be prepared in the format required by the user, form a report and print it
14. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
The testing machine adopts all-digital speed control system and stepper motor as the driving system, and the controller as the core Control system. The real-time display and automatic control of test force, displacement, deformation and other parameters are realized through the Windows Operating interface software. During the test, the system automatically adjusts the speed according to the preset program, and dynamically displays the data and Linear dispersion, and automatically resets after the test is completed.
Applications
Spring performance testing, resilience test, industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017、ISO、JIS、ASTM、DIN
Steps
1. Operate the test software on the computer with the mouse and set the test parameters
2. Select the test mode, such as the fixed height force value or the fixed force value to measure the height
3. Start the test, the system automatically controls the test process and dynamically displays the data and Linear dispersion
4. After the test is completed, the moving beam automatically returns to its original position
5. View and export test data, generate and print test reports
Notice
* Power supply voltage is 220V 50HZ to avoid voltage instability affecting equipment operation
Check whether the equipment overload protection and emergency shutdown device are normal before the test
Pay attention to leakage protection during operation to prevent electrical accidents
Regularly calibrate force and displacement accuracy to ensure measurement accuracy
When storing test data, ensure that the computer has sufficient storage space to avoid data loss
