Overview

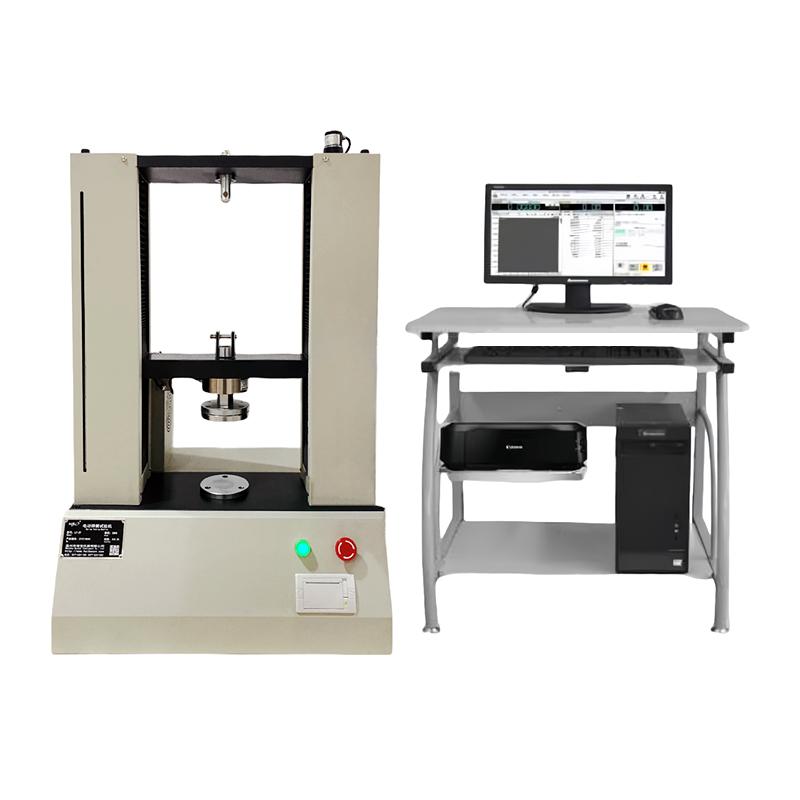

HBO LTD-1T gantry type microcomputer controlled spring testing machine is a desktop spring special testing machine, using all digital speed control system and stepper motor drive, with Windows as the Operating interface control and data processing software, to achieve test force, peak, displacement, deformation and Linear dispersion screen display, all operations are automatically completed by the mouse. Mainly used in spring deformation, tension, spring coefficient and other performance parameters testing, can also test all kinds of resilience samples and parts, in line with JB/T7796-2017 standards, support national standards and ISO, JIS, ASTM, DIN and other international standards, applicable to industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units and other departments.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2.6 units of force value: N, kgf, lbf, gf, kN, tf
3. 3 displacement units: mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
5. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
6. Test software: Chinese WINDOWS interface, menu prompts, mouse operation
7. Display mode: Test data and Linear dispersion are dynamically displayed with the test process
8. Automatic transmission: Test speed can be automatically changed according to the preset program
9. Automatic reset: After the test is completed, the moving beam automatically returns to its original position
10. Qualification judgment: In addition to automatically obtaining the test results, the qualification judgment can be made according to the qualified range of the preset Standard value
11. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
12. Test data: Test data can be queried and exported in word or excel format
13. Test report: Test report can be prepared in the format required by the user, form a report and print it
14. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
The test machine adopts all-digital speed control system and stepper motor as the drive system, and the controller as the core of the Control system, and realizes the automatic control of the test process through the software of Windows Operating interface. The system dynamically displays the test force, peak value, beam displacement, deformation and Linear dispersion. All operations are completed on the computer through the mouse to ensure High Accuracy and Stability.
Applications
Spring performance parameter testing, resilience sample testing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017, national standards, ISO, JIS, ASTM, DIN
Steps
1. Start the device and connect the power supply.
2. Open the computer software and select the test mode and parameters
3. Set Force and Displacement Units and Graduation
4. Place the specimen in the Test space
5. Start the experiment by mouse operation
6. Dynamic observation data and Linear dispersion during the test
7. Automatic reset of the beam after the test is completed
8. View, store, and export experimental data
9. Generate and print test reports
Notice
• Power supply voltage 220V 50HZ
• Check whether the equipment is in good condition before operation to avoid overloading
• Pay attention to the dynamic display during the test, and use the emergency shutdown device immediately if there is any abnormality
• Maintain equipment regularly to ensure accuracy and Stability
• Pay attention to backup when storing data to prevent loss
• Use leakage protection devices to ensure safe operation
