Overview

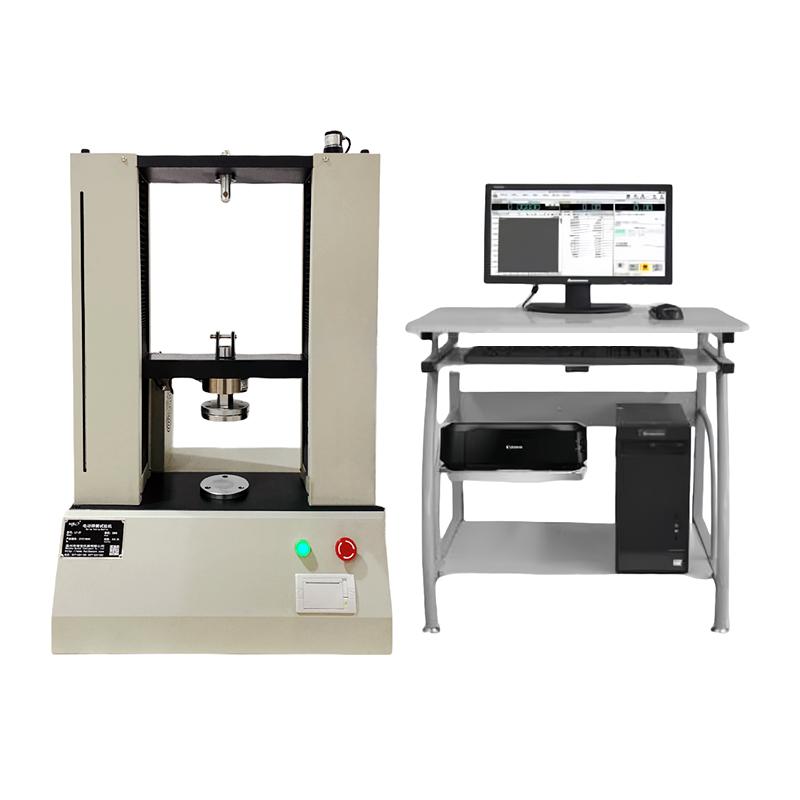

HBO LTD-2T gantry microcomputer-controlled spring testing machine is a desktop spring-specific testing machine. It adopts a fully digital speed control system and stepper motor drive. Operating interface with Windows, it realizes the screen display of test force, displacement, deformation and Linear dispersion. All operations are completed automatically by mouse. It is mainly used in the performance detection of spring deformation, tensile pressure, spring coefficient and other parameters, and can also test resilience samples and parts. It conforms to JB/T7796-2017 standard and supports national standards and ISO, JIS, ASTM, DIN and other international standards. It is suitable for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2.6 units of force value: N, kgf, lbf, gf, kN, tf
3. 3 displacement units: mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
5. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
6. Test software: Chinese WINDOWS interface, menu prompts, mouse operation
7. Display mode: Test data and Linear dispersion are dynamically displayed with the test process
8. Automatic transmission: Test speed can be automatically changed according to the preset program
9. Automatic reset: After the test is completed, the moving beam automatically returns to its original position
10. Qualification judgment: In addition to automatically obtaining the test results, the qualification judgment can be made according to the qualified range of the preset Standard value
11. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
12. Test data: Test data can be queried and exported in word or excel format
13. Test report: Test report can be prepared in the format required by the user, form a report and print it
14. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
This testing machine adopts all-digital speed control system with high speed regulation accuracy and stable performance and stepper motor as the drive system, and the controller is the core of the Control system. Through the control and data processing software of the Windows Operating interface, the screen display of test force, peak test force, beam displacement, test deformation and test Linear dispersion can be realized. All test operations can be automatically completed on the computer through the mouse.
Applications
Testing of spring deformation, tensile pressure, spring coefficient and other performance parameters, relevant tests of various resilience samples and Miscellaneous similar parts, industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017, national standards, ISO, JIS, ASTM, DIN
Steps
1. Operate the test software on the computer with the mouse
2. Set test parameters, such as force value units, displacement units, Graduation, test mode, etc
3. Start the test, and the system automatically controls the test process
4. After the test is completed, the moving beam automatically returns to its original position
5. View the test data and Linear dispersion for qualified judgment
6. Automatically store data and export it in Word or Excel format
7. Prepare and print test reports
Notice
• Power supply voltage 220V 50HZ
• Pay attention to the overload protection function to avoid equipment overload
• Use emergency shutdown devices to stop quickly in abnormal situations
• Check the leakage protection device to ensure safe operation
• Regularly calibrate equipment to maintain Measurement accuracy
