Overview

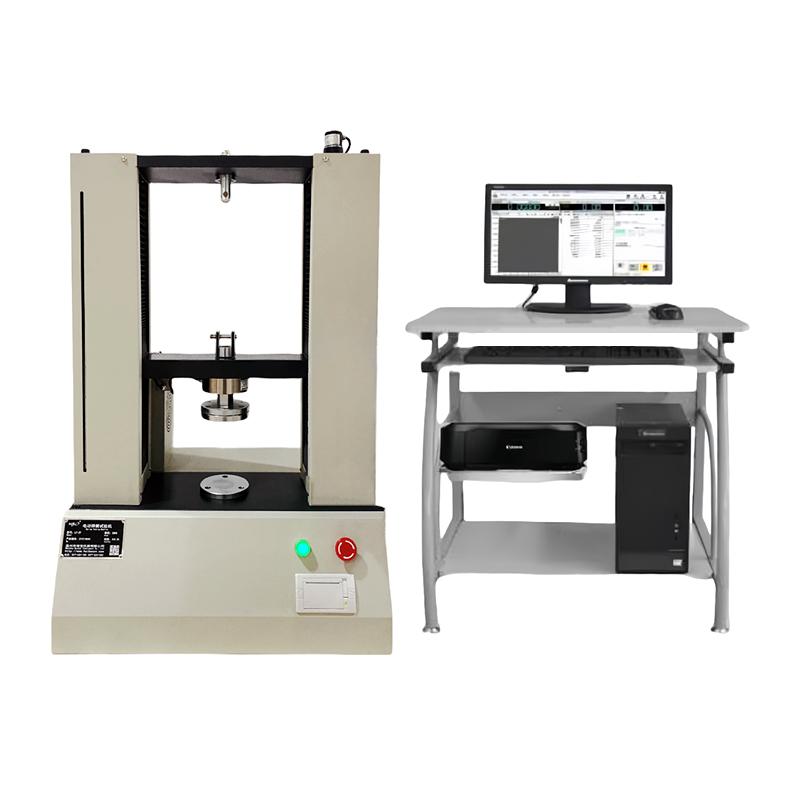

LTD-3T is a desktop spring testing machine, using all digital speed control system and stepper motor drive, with Windows as the Operating interface control and data processing software to achieve test force, peak, displacement, deformation and Linear dispersion screen display, all operations are automatically completed by the mouse. Mainly used in spring deformation, tension, spring coefficient and other performance parameters testing, can also test all kinds of resilience samples and parts, in line with JB/T7796-2017 standards, support national standards and ISO, JIS, ASTM, DIN and other international standards, applicable to industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units and other departments.
Features
1. Four Rail Column, High Accuracy Double Ball Screw Pair Structure, Improve Measurement accuracy and Stability
2.6 units of force value N, kgf, lbf, gf, kN, tf
3. 3 displacement units mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
5. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
6. Test software: Chinese WINDOWS interface, menu prompts, mouse operation
7. Display mode: Test data and Linear dispersion are dynamically displayed with the test process
8. Automatic transmission: Test speed can be automatically changed according to the preset program
9. Automatic reset: After the test is completed, the moving beam automatically returns to its original position
10. Qualification judgment: In addition to automatically obtaining the test results, the qualification judgment can be made according to the qualified range of the preset Standard value
11. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
12. Test data: Test data can be queried and exported in word or excel format
13. Test report: Test report can be prepared in the format required by the user, form a report and print it
14. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
The testing machine adopts a fully digital speed control system with high speed regulation accuracy and stable performance and a stepper motor as the driving system. The controller is the core of the Control system. The screen display of test force, peak test force, beam displacement, test deformation and test Linear dispersion is realized through the control and data processing software of the Windows Operating interface. All test operations are automatically completed on the computer through the mouse.
Applications
Spring performance parameter testing, resilience sample testing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017, national standards, ISO, JIS, ASTM, DIN
Steps
1. Start the test software on the computer with the mouse
2. Set test parameters, including force value units, displacement units, Graduation, test mode, etc
3. Select the test mode: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height or fixed force value to measure deformation
4. Start the test, Test speed and program change automatically
5. Dynamic display of data and Linear dispersion during the test
6. After the test is completed, the moving beam is automatically reset to its original position
7. Test data and Linear dispersion are automatically stored and can be queried or exported
8. Make qualified judgments according to preset criteria
9. Prepare and print test reports
Notice
* Power supply voltage AC 220V 50HZ
* Pay attention to the overload protection function to avoid overload use
Use emergency shutdown devices in emergencies
Regularly check the leakage protection device
Verify that the displacement and force values are set correctly before the test
* Test space Effective Travel is 430mm, do not exceed the limit
* Keep equipment clean to avoid affecting Measurement accuracy
