Overview

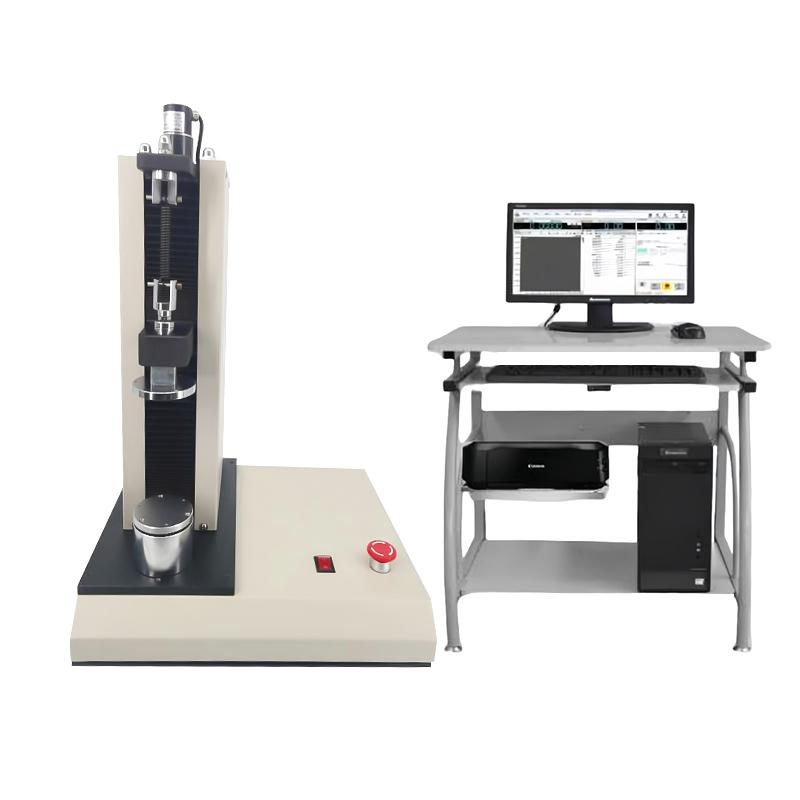

HBO ZTD-500 desktop microcomputer-controlled spring testing machine is a device dedicated to spring performance testing. It adopts a fully digital speed control system and stepper motor drive. Operating interface with Windows, it realizes screen display and automatic operation of test force, displacement, deformation and other parameters. It is mainly used in spring deformation, tensile force, spring coefficient and other performance testing. It can also test resilience samples. It meets JB/T7796-2017 standards and supports national standards and ISO, JIS, ASTM, DIN and other international standards. It is suitable for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. High Accuracy, High resolution, High Stability
2.6 units of force value: N, kgf, lbf, gf, kN, tf
3. 3 displacement units: mm, cm, in
4. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
5. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
6. Test software: Chinese WINDOWS interface, menu prompts, mouse operation
7. Display mode: Test data and Linear dispersion are dynamically displayed with the test process
8. Automatic transmission: Test speed can be automatically changed according to the preset program
9. Automatic reset: After the test is completed, the moving beam automatically returns to its original position
10. Qualification judgment: In addition to automatically obtaining the test results, the qualification judgment can be made according to the qualified range of the preset Standard value
11. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
12. Test data: Test data can be queried and exported in word or excel format
13. Test report: Test report can be prepared in the format required by the user, form a report and print it
14. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
The testing machine adopts a fully digital speed control system with high speed regulation accuracy and stable performance and a stepper motor as the driving system, the controller is the core of the Control system, and the control and data processing software with Windows as the Operating interface realizes the screen display of the test force, the peak value of the test force, the displacement of the beam, the test deformation and the test Linear dispersion. All test operations can be automatically completed on the computer through the mouse.
Applications
Testing of performance parameters such as spring deformation, tensile pressure, spring coefficient, various resilience samples and Miscellaneous similar parts for related tests, industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017 "Spring Tension and Compression Testing Machine", national standard, ISO, JIS, ASTM, DIN
Steps
1. Start the test software on the computer with the mouse
2. Set test parameters, such as force value units, displacement units, Graduation, test mode, etc
3. Select the test mode: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height or fixed force value to measure deformation
4. Start the test, the system automatically controls the Test speed change
5. Dynamic display of test data and Linear dispersion during the test
6. After the test is completed, the moving beam automatically returns to its original position
7. The system automatically stores test data and Linear dispersion, and can query, export word or excel format
8. Standard value according to the preset qualified judgment
9. Prepare and print test reports
Notice
* Power supply voltage AC 220V 50HZ
Pay attention to the overload protection function to avoid overloading the equipment
Use emergency shutdown devices in emergencies
Regularly check the leakage protection device to ensure safety
Verify that the displacement and force values are set correctly before the test
Pay attention to computer storage space when storing test data
Follow the software menu prompts when operating, and use the mouse to complete all operations
