AMITTARI AT-180H5 Infrared Belt TensiMeter Laser measurement split Sensor

Name: AMITTARI AT-180H5 Infrared Belt TensiMeter Laser measurement split Sensor
Brand: AMITTARI
SKU: NB047764
Price: 501.0 USD
Availability: InStock

$ 501.00Ex works

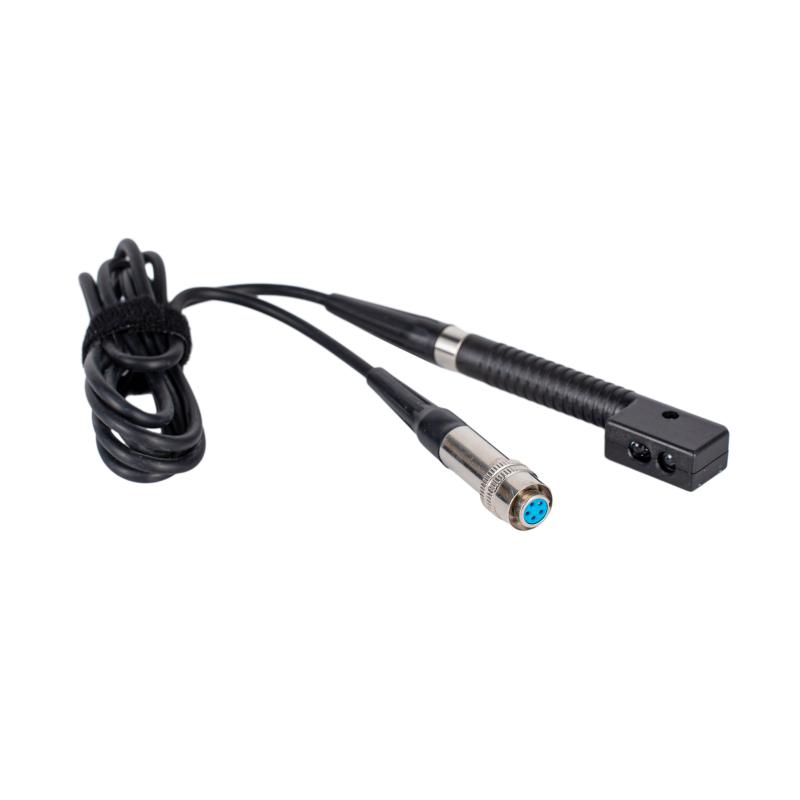

Laser Sensor is used to directly measure the natural vibration Frequency of the belt, combined with the input belt mass and free length to calculate the tension, Measurement range 10Hz~ 500Hz, split Sensor size can penetrate into 66mm narrow space, support Metric Imperial Unit switch.

Model

AT-180H5

Get Quote

Category : Tensiometer

Brand : AMITTARI

SKU : NB047764

Service :The delivery and service By NBCLab.Com

Overview

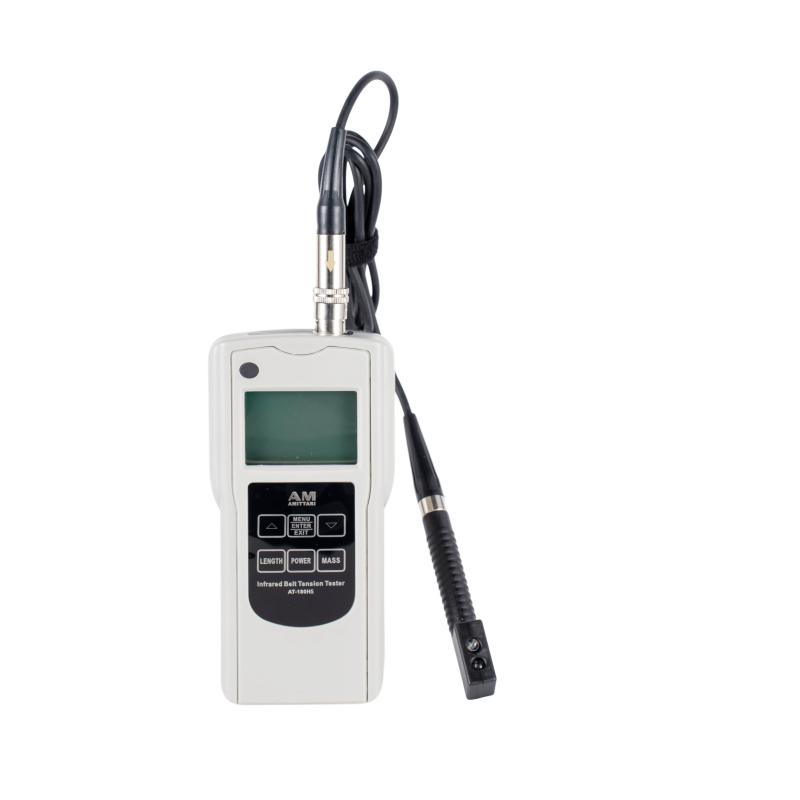

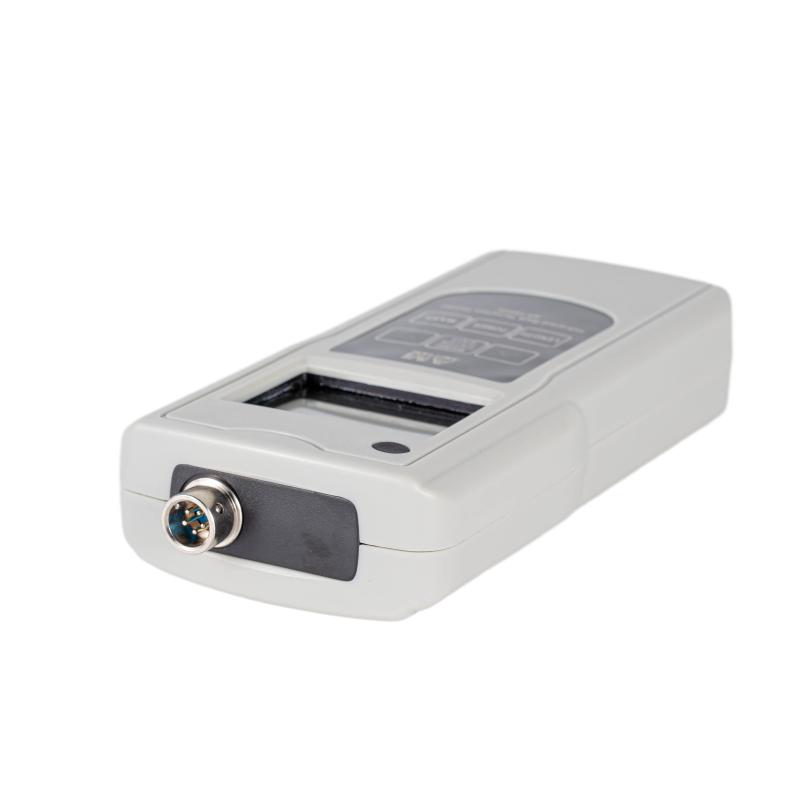

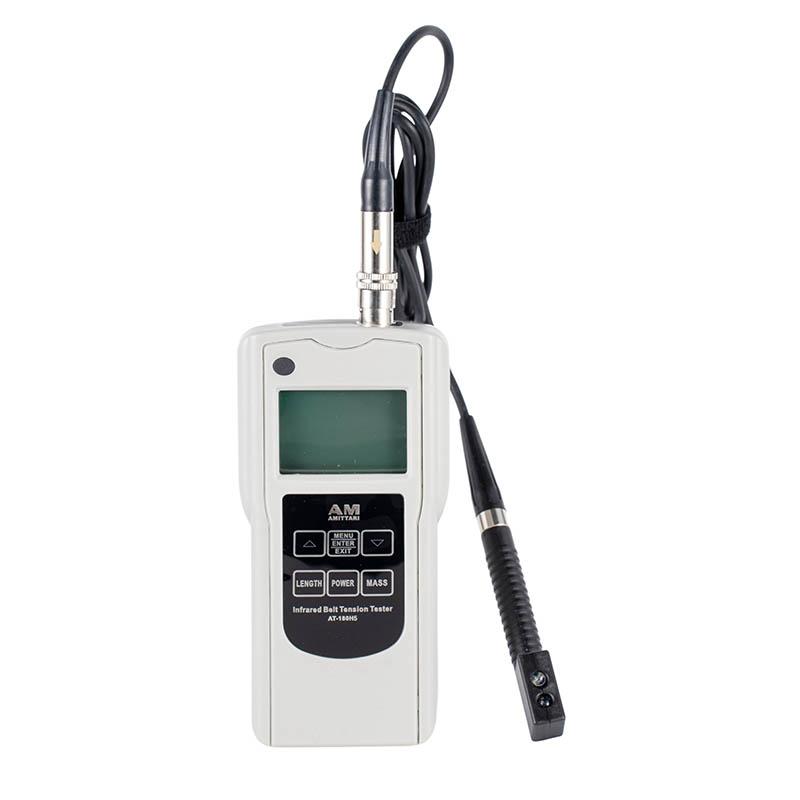

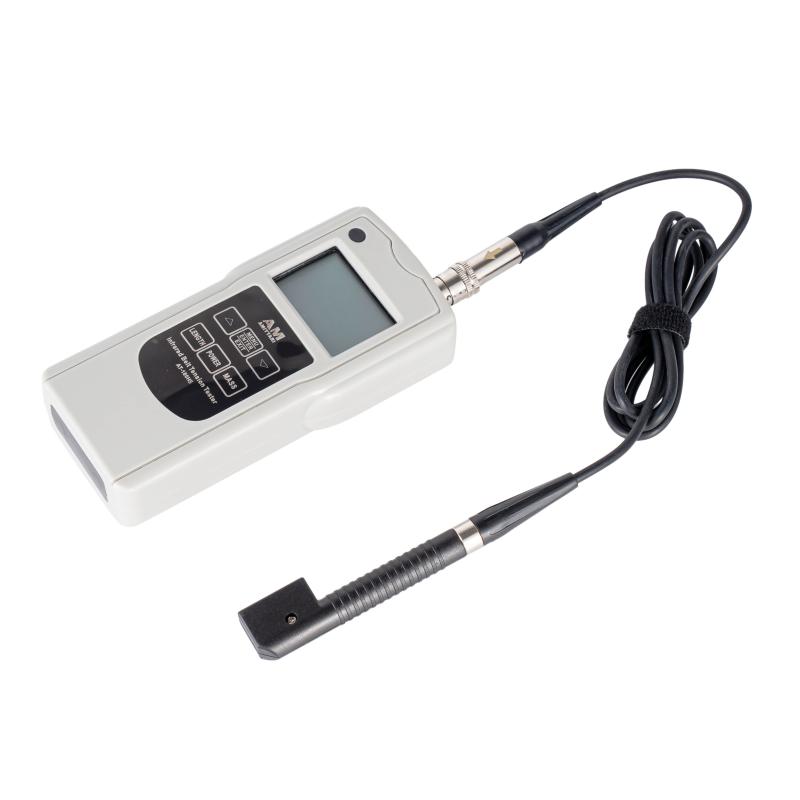

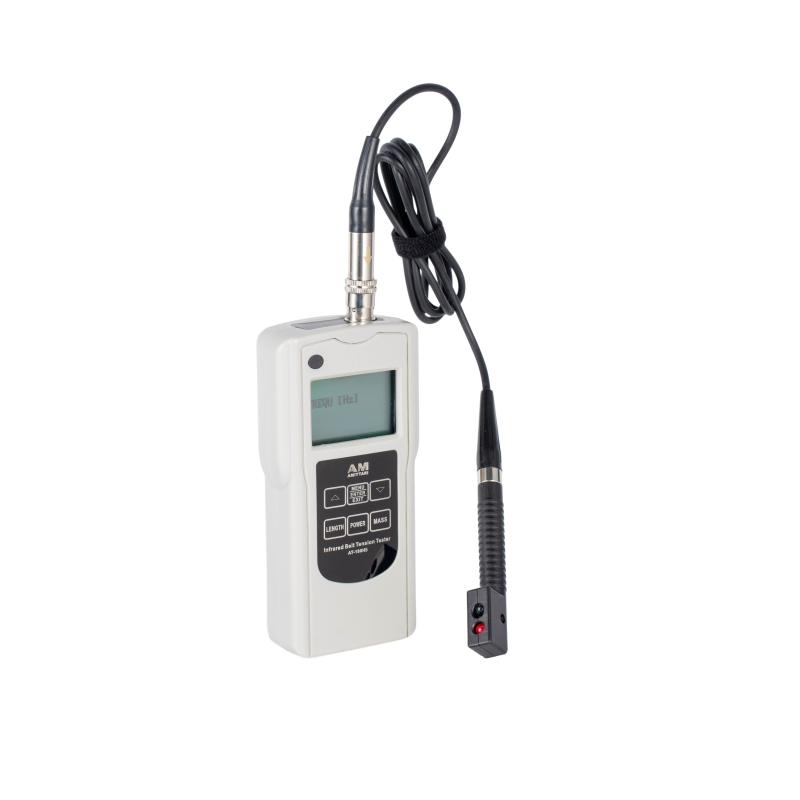

The AMITTARI AT-180H5 Infrared Belt Tensiometer is a device for rapid measurement of belt tension in motors and other machinery. Frequency measurement of natural belt vibration via laser emission and reception, combined with input belt mass and free belt length, calculates accurate tension values.

Features

1. Laser Sensor, direct measurement, more convenient than mechanical Sensor. 2. The split Sensor is small in size and suitable for measurement in small spaces. 3. You can display the reading in two different units, metric or imperial. 4. With automatic shutdown function.

Principle

Frequency of natural vibration of the belt is measured by laser emission and reception, and then the tension value of the belt is calculated by combining the input belt mass and free belt length.

Applications

Motor, mechanical belt tension measurement

Steps

1. Measuring location of split Sensor on belt. 2. Frequency measurement of natural vibration of the belt by laser. 3. Enter the belt mass and free belt length. 4. The device automatically calculates and displays the tension value.

Notice

• Temperature range + 10 ° C~ 50 ° C. • Temperature range from -5 ° C to 70 ° C. • The optical path measurement distance should be kept within the range of 3~ 20mm. • Powered by 4 1.5V AAA AA AA batteries.

Measurement Range
10Hz~500Hz
input Range
Free section belt length Max 99.99m Belt mass Max 9.999kg/m
Digital sampling error
<1%
display error
±1Hz
Total error
<5%
Temperature Range
-5℃~70℃
show
LCD
Physical unit of measurement
Metric: m, kg/m, N Imperial: inch, lbs/foot, lbf
Optical path measurement distance
3mm~20mm
power supply
4X1.5v AAA AA batteries
Host Size
Host: 140mm * 70mm * 31mm Sensor: 124mm * 21mm * 12mm
Host weight
130G (without battery)
standard accessories
Host split Sensor portable case, operation manual
