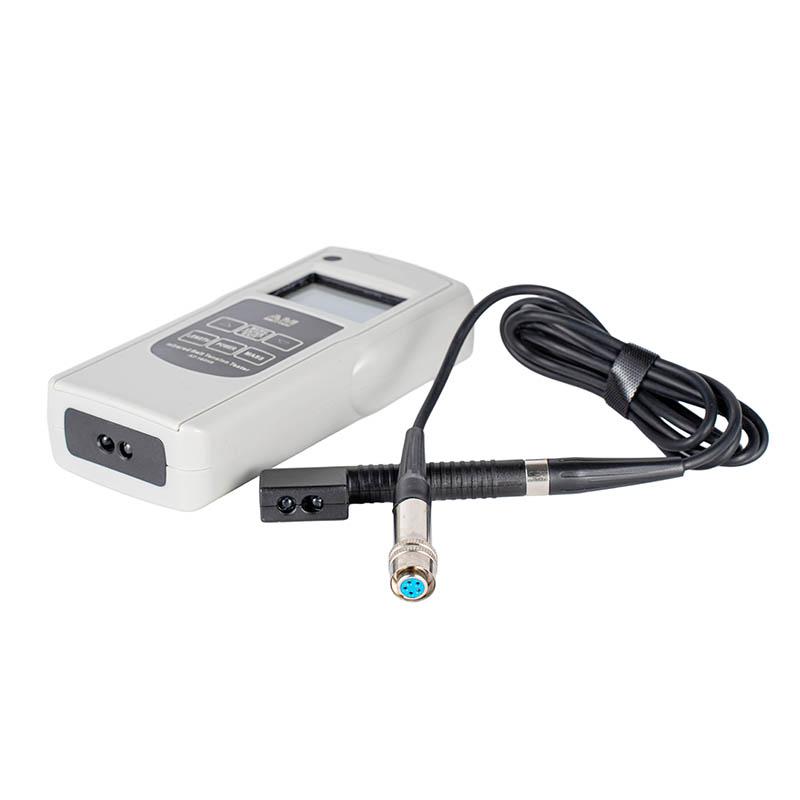

AMITTARI AT-180H8 Infrared Belt TensioMeter, Laser Sensor splitting Probe

Name: AMITTARI AT-180H8 Infrared Belt TensioMeter, Laser Sensor splitting Probe
Brand: AMITTARI
SKU: NB047765
Price: 700.0 USD
Availability: InStock

$ 700.00Ex works

Laser Sensor is used to directly measure the natural vibration Frequency of the belt. Measurement range is 10Hz~ 800Hz. The size of the split Probe is only 124 * 21 * 12mm. It can penetrate into a small space of 66mm and supports metric and imperial Unit switching.

Model

AT-180H8

Get Quote

Category : Tensiometer

Brand : AMITTARI

SKU : NB047765

Service :The delivery and service By NBCLab.Com

Overview

The AMITTARI Infrared Belt Tensiometer AT-180H8 is a device for rapid measurement of belt tension in motors and other machinery. Frequency measurements of the natural vibration of the belt, combined with the input belt mass and free belt length, are made by laser emission and reception to calculate the exact tension value.

Features

1. Laser Sensor, direct measurement, more convenient than mechanical Sensor. 2. The split Sensor is small in size and suitable for measurement in small spaces. 3. You can display the reading in two different units, metric or imperial. 4. With automatic shutdown function.

Principle

Frequency of natural vibration of the belt is measured by laser emission and reception, and then the tension value of the belt is calculated by combining the input belt mass and free belt length.

Applications

Motor, machinery

Measurement Range
10Hz~800Hz
input Range
Free section belt length Max 99.99m Belt mass Max 9.999kg/m
Digital sampling error
<1%
display error
±1Hz
Total error
<5%
Temperature Range
-5℃~70℃
show
LCD
Physical unit of measurement
Metric: m, kg/m, N Imperial: inch, lbs/foot, lbf
Optical path measurement distance
3mm~20mm
power supply
4X1.5v AAA AA batteries
Host Size
Host: 140mm * 70mm * 31mm Sensor: 124mm * 21mm * 12mm
Host weight
130G (without battery)
