AMITTARI LTMS-200 Line TensiMeter Three-wheel Tension Measurement principle High Accuracy Handheld Device

Name: AMITTARI LTMS-200 Line TensiMeter Three-wheel Tension Measurement principle High Accuracy Handheld Device
Brand: AMITTARI
SKU: NB047767
Price: 445.0 USD
Availability: InStock

$ 445.00Ex works

Measurement principle using three rounds of tension, 62 samples per second, Measurement range 0~ 200gf, accuracy +/- 1.0%, can display the current value, MAX Maximum, peak and MIN Minimum.

Model

LTMS-200

Get Quote

Category : Tensiometer

Brand : AMITTARI

SKU : NB047767

Service :The delivery and service By NBCLab.Com

Overview

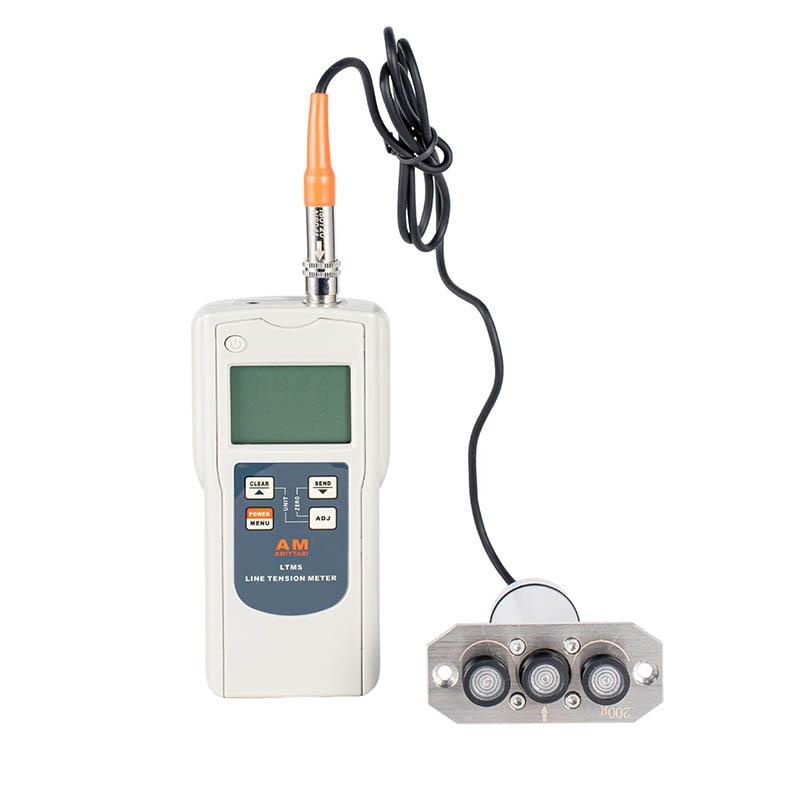

The LTMS-200 Wire Tensiometer is a Handheld device from the AMITTARI brand for accurate measurement of the tension of various process materials (including yarns, fibers, wires, fibers) in operation or at rest. It uses three rounds of tension Measurement principle and has High Accuracy Digital Display.

Features

1. Adopt "Three-wheel Tension Measurement principle" 2. High Accuracy and high resolution, digital display ignoring poor 3. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other 4. Simultaneously display the current value, MAX Maximum, Peak and MIN Minimum during the measurement interval 5. It can be set to shut down automatically without operation for 10 minutes, or it can be shut down manually. 62 measurements per second, displaying the measurement average according to the time interval selected by the user 7. Use USB data cable output to communicate with PC 8. Provide Bluetooth data output selection

Principle

Measurement principle of strain gauge is used to measure the tension of material through three-wheel tension measurement system. Measurement frequency is 16 milliseconds, 62.5 sampling times per second.

Applications

Yarn, fiber, wire, fiber

Measurement Range
0~0.2kgf, 0~200gf, 0~1.96N, 0~0.44Lbf
resolution
0.001kgf, 1gf, 0.001N, 0.001Lbf
Precision
+/- 1.0% or better
Wheel spacing
40mm
unit
kgf, gf, N, Lbf
Measurement principle
strain gauge
Measurement frequency
16 milliseconds (62.5 sampling/s)
Sensing Wheel Offset (MAX Maximum)
0.2mm
overload capacity
150% of full scale
temperature coefficient
Zero point: less than +/- 0.3% FS/℃ Range: less than +/- 0.01% FS/℃
display update rate
0.5, 1.0, 2.0 or 4.0 second display conversion optional
Measured value
Current Value, MAX Maximum, Peak, MIN minimum
Roller material
Stainless steel (standard)
Maximum speed
2000m/min
operating conditions
Temperature: 0 ° C~ 40 ° C (32 ° F~ 104 ° F)
power supply
4X1.5v AAA AA batteries
Size
Host: 140mm * 70mm * 31mm
weight
400G (without battery)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
