AMITTARI LTMS-500 Line TensiMeter Three-wheel Tension Measurement principle High Accuracy Handheld Equipment

Name: AMITTARI LTMS-500 Line TensiMeter Three-wheel Tension Measurement principle High Accuracy Handheld Equipment
Brand: AMITTARI
SKU: NB047768
Price: 445.0 USD
Availability: InStock

$ 445.00Ex works

Measurement accuracy of +/- 1.0% with three rounds of tension measurement principle, 62 samples per second, can display current value, MAX Maximum, peak and MIN Minimum at the same time, and supports automatic conversion of various units.

Model

LTMS-500

Get Quote

Category : Tensiometer

Brand : AMITTARI

SKU : NB047768

Service :The delivery and service By NBCLab.Com

Overview

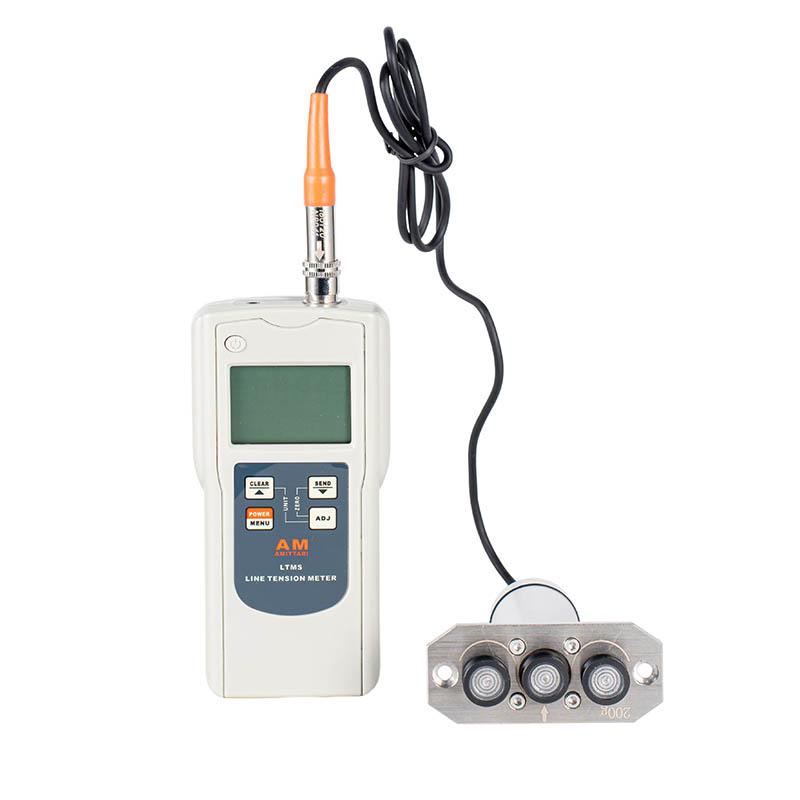

The LTMS-500 Wire Tensiometer is a Handheld device from the AMITTARI brand for accurate measurement of tension in various process materials, including yarns, fibers, wires, and fibers, in operation or at rest.

Features

1. Adopt "Three-wheel Tension Measurement principle" 2. High Accuracy and high resolution, digital display ignoring poor 3. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other 4. Simultaneously display the current value, MAX Maximum, Peak and MIN Minimum during the measurement interval 5. It can be set to shut down automatically without operation for 10 minutes, or it can be shut down manually. 62 measurements per second, displaying the measurement average according to the time interval selected by the user 7. Use USB data cable output to communicate with PC 8. Provide Bluetooth data output selection

Principle

The product uses strain gauge Measurement principle, through three rounds of tension measurement system to detect material tension, 62 sampling measurements per second.

Applications

Yarn, fiber, wire, fiber

Measurement Range
0~0.5kgf, 0~500gf, 0~4.9N, 0~1.1Lbf
resolution
0.001kgf, 1gf, 0.001N, 0.001Lbf
Precision
+/- 1.0% or better
Wheel spacing
40mm
unit
kgf, gf, N, Lbf
Measurement principle
strain gauge
Measurement frequency
16 milliseconds (62.5 sampling/s)
Sensing Wheel Offset (MAX Maximum)
0.2mm
overload capacity
150% of full scale
temperature coefficient
Zero point: less than +/- 0.3% FS/℃ Range: less than +/- 0.01% FS/℃
display update rate
0.5, 1.0, 2.0 or 4.0 second display conversion optional
Measured value
Current Value, MAX Maximum, Peak, MIN minimum
Roller material
Stainless steel (standard)
Maximum speed
2000m/min
operating conditions
Temperature: 0 ° C~ 40 ° C (32 ° F~ 104 ° F)
power supply
4X1.5v AAA AA batteries
Size
Host: 140mm * 70mm * 31mm
weight
400G (without battery)
