Overview

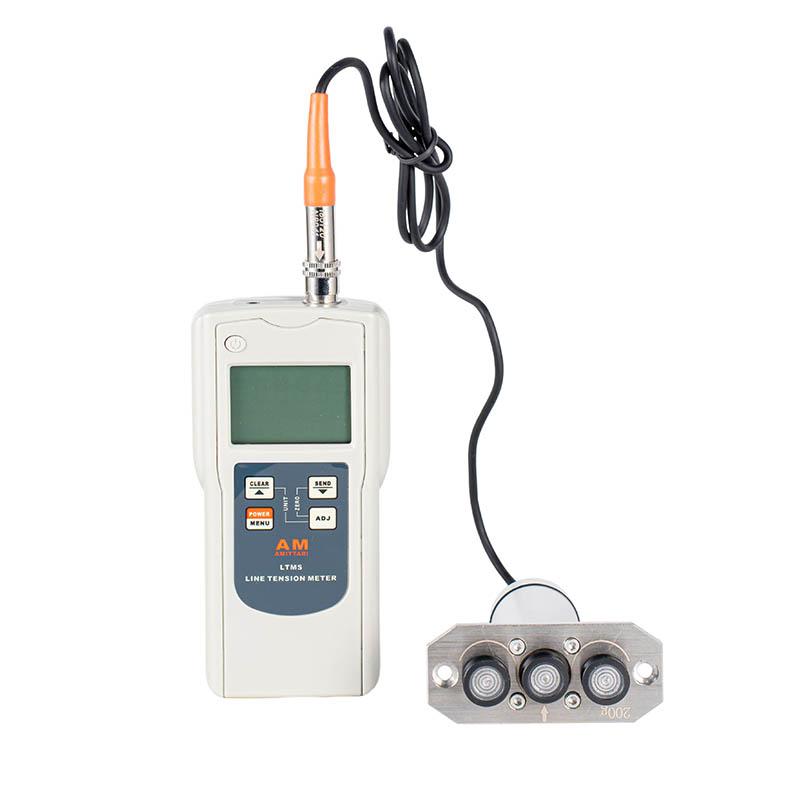

The LTMS Digital Tensiometer is a Handheld device for accurate measurement of tension on a variety of process materials, including yarns, fibers, wires, and fibers, in action or at rest. It uses the three-wheel Tension Measurement principle, provides a High Accuracy digital display, and supports a variety of unit conversion and data output options.
Features
1. Adopt three-wheel Tension Measurement principle to ensure measurement accuracy.
2. High Accuracy and high resolution, digital display ignores poor.
3. Support N (newton), kg (kilogram), lb (pound), g (gram) four unit selection and mutual conversion.
4. Displays the current value, MAX Maximum, Peak, and MIN Minimum simultaneously.
5. It can be set to shut down automatically or manually for 10 minutes without operation.
62 measurements are made per second, and the average value is displayed according to the time interval selected by the user.
7. Use USB data cable output to communicate with PC.
8. Provide Bluetooth data output selection.
Principle
Measurement principle based on strain gauge, the tension meter detects material tension through a three-wheel tension measurement system. 62 samples per second are performed, and the average value is calculated and displayed according to the display update rate set by the user.
Applications
Yarn, fiber, wire, fiber
Steps
1. Turn on the power supply of the device.
2. Select the required tension unit (N, kg, lb, g).
3. Place the material on the measurement wheel.
4. Read the display value (Current Value, MAX Maximum, Peak, MIN Minimum).
5. Set the display update rate as required.
6. Use USB or Bluetooth to connect to the PC for data transfer.
7. Manual shutdown or wait for automatic shutdown after the operation is completed.
Notice
• Temperature range 0 ° C to 40 ° C (32 ° F to 104 ° F).
• Maximum overload capacity is 150% F.S. to avoid overloading.
• Maximum speed of measurement materials does not exceed 2000m/min.
• Powered by 4 1.5V AAA batteries to ensure sufficient battery power.
• The maximum offset of the sensing wheel is 0.2mm, pay attention to alignment when using it.
• Device weight is 400g (without battery), pay attention to stability when holding.
