AMITTARI LTMS-2K Line TensiMeter, Three-wheel Tension Measurement principle High Accuracy Handheld Equipment

Name: AMITTARI LTMS-2K Line TensiMeter, Three-wheel Tension Measurement principle High Accuracy Handheld Equipment
Brand: AMITTARI
SKU: NB047770
Price: 445.0 USD
Availability: InStock

$ 445.00Ex works

Measurement principle of three rounds of tension, 62 sampling per second, Measurement range 0~ 2.0kgf, accuracy +/- 1.5%, support four units of automatic conversion, can display the current value, MAX Maximum, peak and MIN Minimum.

Model

LTMS-2K

Get Quote

Category : Tensiometer

Brand : AMITTARI

SKU : NB047770

Service :The delivery and service By NBCLab.Com

Overview

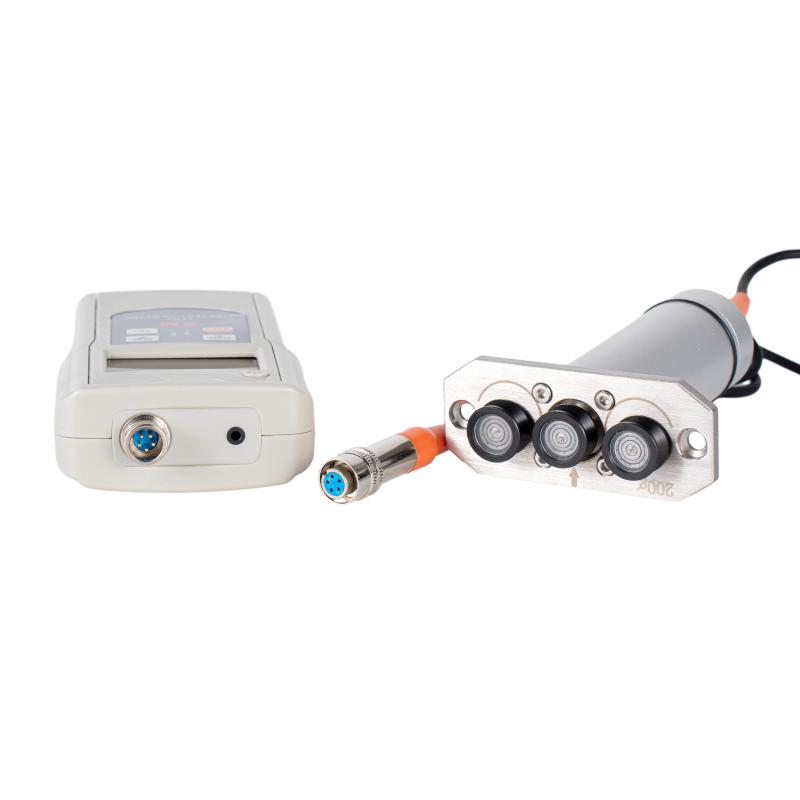

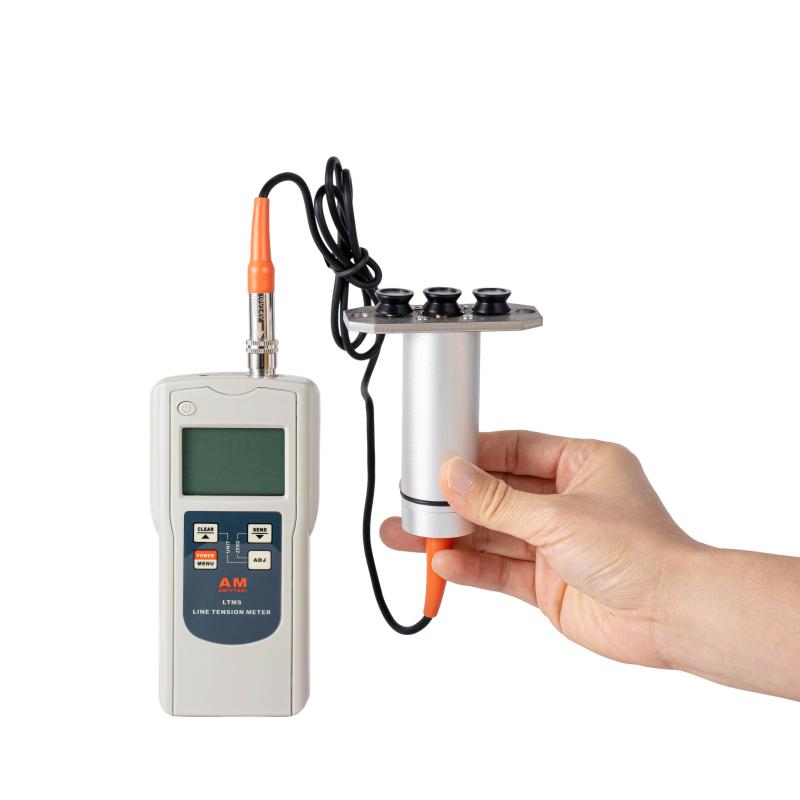

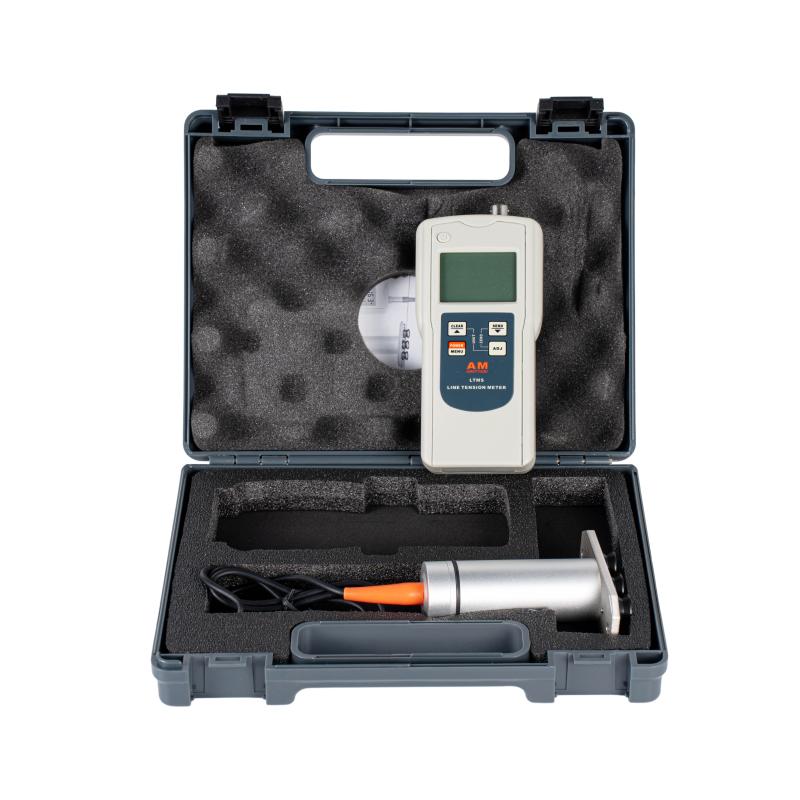

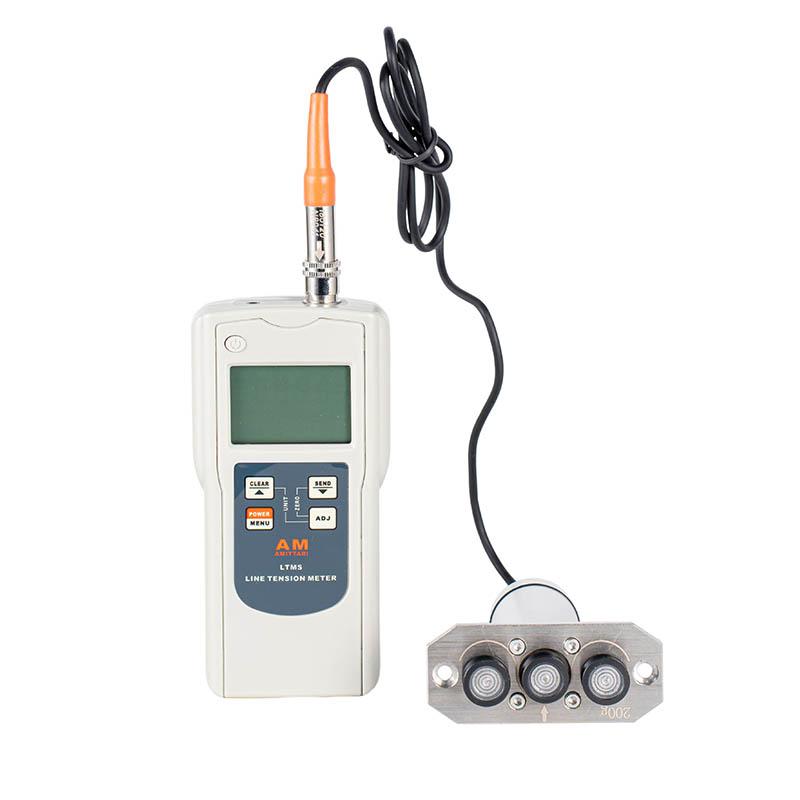

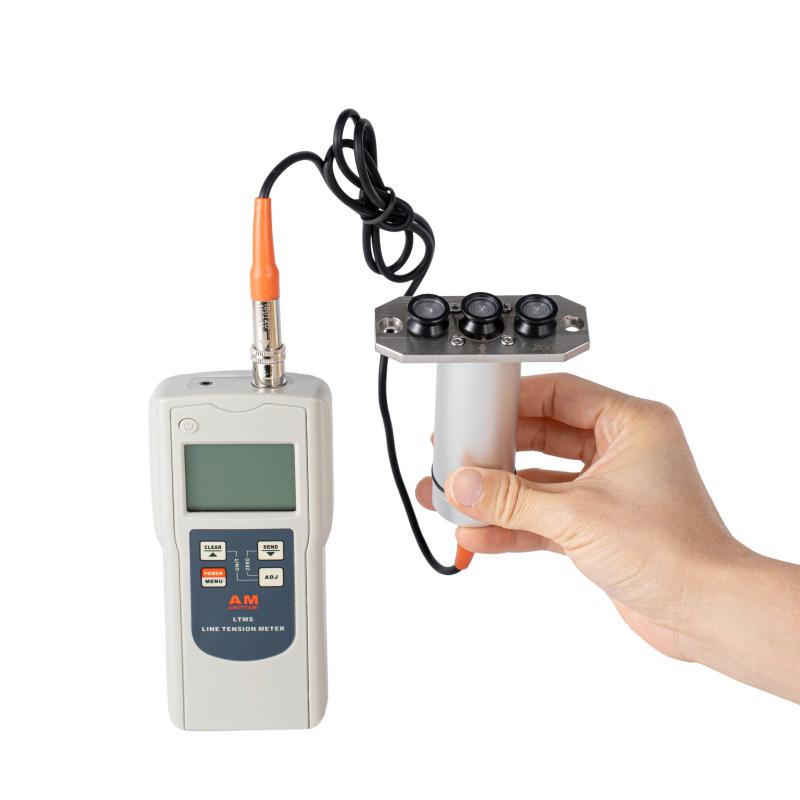

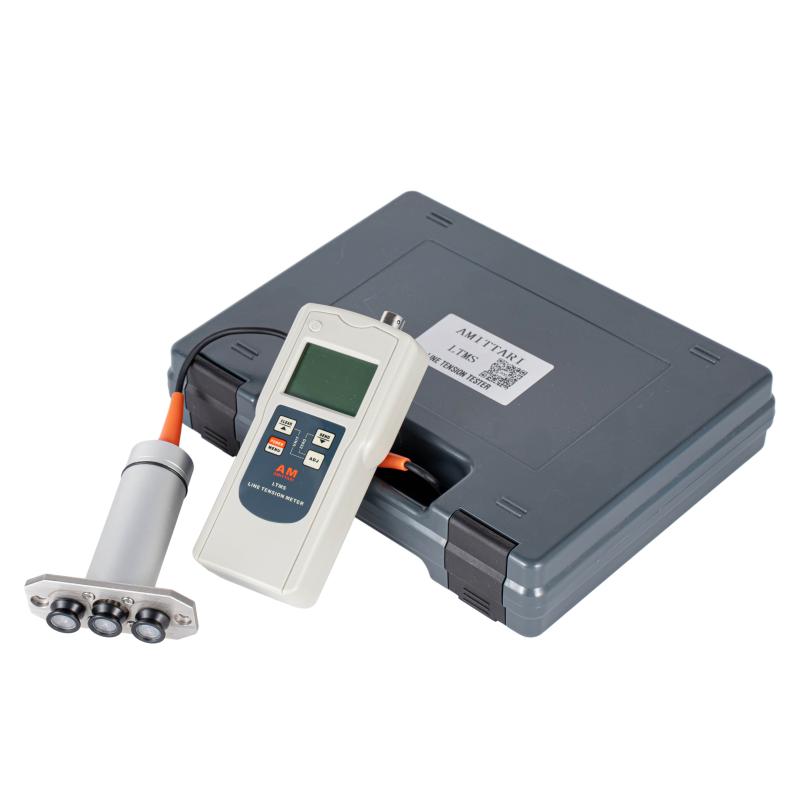

The LTMS Digital Tensiometer is a Handheld device used to accurately measure the tension of various process materials (including yarn, fiber, wire, fiber) in operation or at rest. Model LTMS-2K, brand AMITTARI.

Features

1. Adopt the "Three-Wheel Tension Measurement principle". 2. High Accuracy High resolution, digital display, ignore poor. 3. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available for selection and conversion. 4. Also displays the current value, MAX Maximum, Peak and MIN Minimum that occurred during the measurement interval. 5. It can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually. 62 measurements are made per second and the average of the measurements is displayed according to the time interval selected by the user. 7. Use USB data cable output to communicate with PC. 8. Provide Bluetooth data output selection.

Principle

It uses the "Three-Wheel Tension Measurement principle" for strain gauge-based tension measurement with 62 samples per second, ensuring High Accuracy and high resolution.

Applications

Yarn, fiber, wire, fiber

Measurement Range
0~2.0 kgf, 0~2000 gf, 0~19.6 N, 0~4.4 Lbf
resolution
0.001 kgf, 1 gf, 0.01 N, 0.001 Lbf
Precision
+/- 1.5% or better
Wheel spacing
40mm
unit
kgf, gf, N, Lbf
Measurement principle
strain gauge
Measurement frequency
16 milliseconds (62.5 sampling/s)
Sensing Wheel Offset (MAX Maximum)
0.2mm
overload capacity
150% of full scale
temperature coefficient
Zero point: less than +/- 0.3% FS/℃, within Range: less than +/- 0.01% FS/℃
display update rate
0.5, 1.0, 2.0 or 4.0 second display conversion optional
Measured value
Current Value, MAX Maximum, Peak, MIN minimum
Roller material
Stainless steel (standard)
Maximum speed
2000 m/min
operating conditions
Temperature: 0 ° C~ 40 ° C (32 ° F~ 104 ° F)
power supply
4X1.5v AAA AA batteries
Size
Main unit: 140mm * 70mm * 31mm
weight
400 g (without batteries)
