Overview

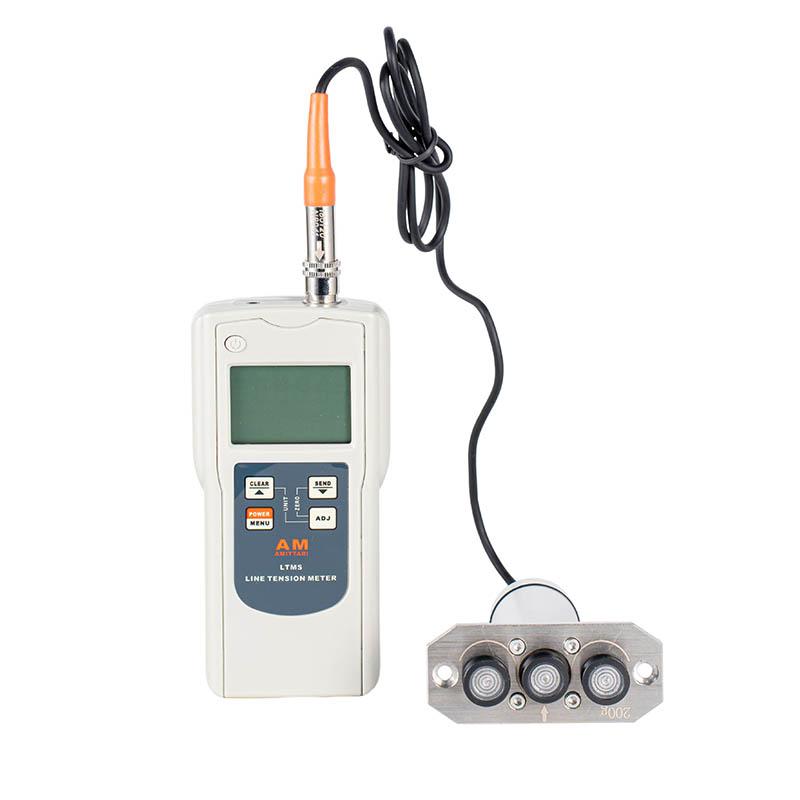

The LTMS-50K Wire Tensiometer is a Handheld device from the AMITTARI brand for accurate measurement of tension in various process materials, including yarns, fibers, wires, and fibers, in operation or at rest.
Features
1. Adopt "Three-wheel Tension Measurement principle"
2. High Accuracy and high resolution, digital display ignoring poor
3. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other
4. Simultaneously display the current value, MAX Maximum, Peak and MIN Minimum during the measurement interval
5. It can be set to shut down automatically without operation for 10 minutes, or it can be shut down manually.
62 measurements per second, displaying the measurement average according to the time interval selected by the user
7. Use USB data cable output to communicate with PC
8. Provide Bluetooth data output selection
Principle
Measurement principle of strain gauge is used to measure material tension through a three-wheel tension measurement system. 62 sampling measurements are made per second, and the average measurement value is displayed according to the time interval set by the user.
Applications
Yarn, fiber, wire, fiber
Steps
1. Install 4 AAA AA AA batteries
2. Select the desired Measurement unit (N, kg, lb, g)
3. Set the display update rate (0.5, 1.0, 2.0, or 4.0 seconds)
4. Place material between measurement wheels
5. Read Current Value, MAX Maximum, Peak and MIN Minimum Display
6. Data transfer can be done via USB or Bluetooth connection to PC
7. Manual shutdown after use or wait 10 minutes for automatic shutdown
Notice
• Temperature range 0 ° C to 40 ° C (32 ° F to 104 ° F)
• Measurement speed not exceeding 2000m/min
• Avoid overload use of more than 150% F.S
• The maximum offset of the sensing wheel is 0.2mm.
• Use a suitable battery and pay attention to timely replacement
• Keep equipment drying clean to avoid strong Impact
