AMITTARI MT-200D GaussiMeter, Hall Sensor 200mT/2000mT Range

Name: AMITTARI MT-200D GaussiMeter, Hall Sensor 200mT/2000mT Range
Brand: AMITTARI
SKU: NB047775
Price: 178.0 USD
Availability: InStock

$ 178.00Ex works

Hall Sensor measurement of DC magnetic field, range 0-2000mT, Precision 5%, with automatic zero adjustment, peak holding and unit conversion functions, portable design weighs only 180g.

Model

MT-200D

Get Quote

Category : Other Instruments

Brand : AMITTARI

SKU : NB047775

Service :The delivery and service By NBCLab.Com

Overview

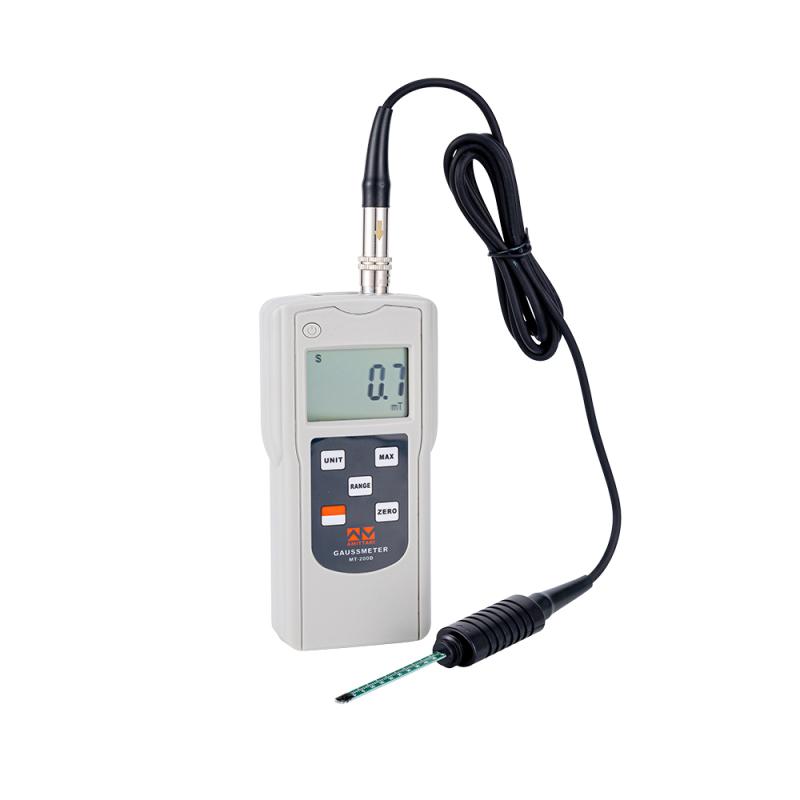

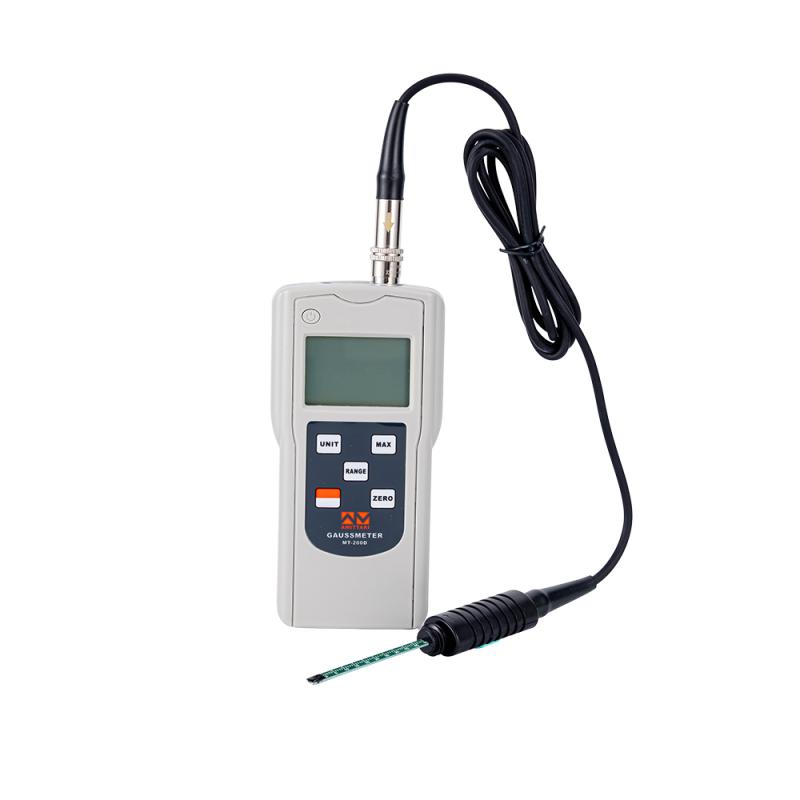

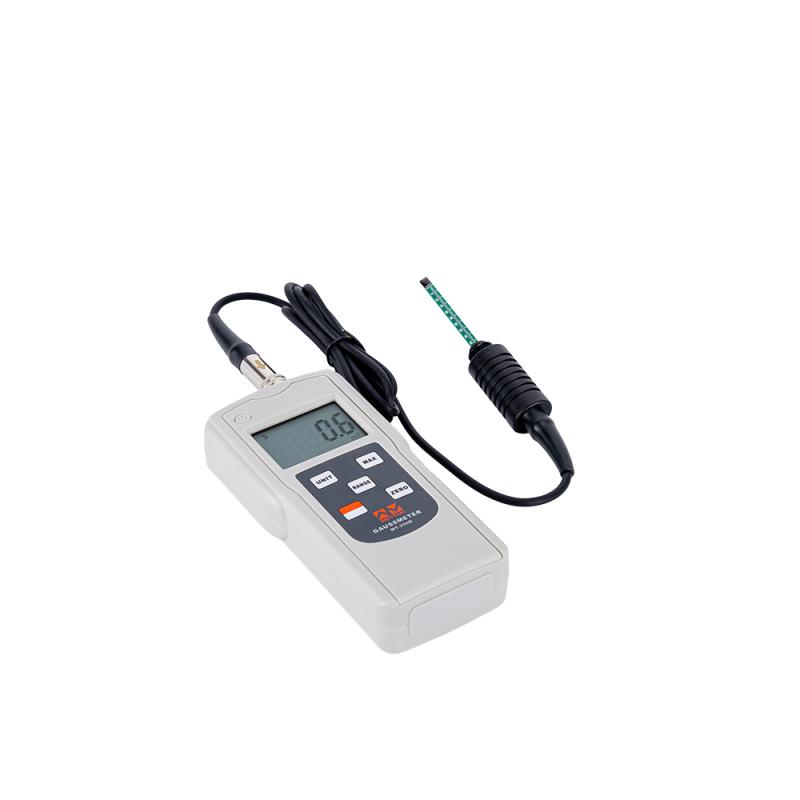

The AMITTARI MT-200D Gaussimeter is a Portable magnetic field measuring instrument featuring Hall Sensor technology with automatic zeroing, peak holding and unit conversion for accurate measurement of DC magnetic fields.

Features

1. Easy to carry, Measurement range. 2. Keypad Operation auto zero. 3. Easy to operate, clear LCD display. 4. Measured value/peak hold function. 5. Support mT/Gs unit conversion. 6. Provide 200mT/2000mT range conversion.

Principle

Based on the Hall effect principle, this instrument uses Hall Sensor (transverse or axial optional) to detect the magnetic field, processes the signal through a low drift amplifier and a high stability power supply, and is controlled by a single chip microcomputer and displays the Measured value on a 4 1/2 LCD display.

Steps

1. Install four AA batteries for power supply. 2. Select Sensor type (lateral or axial) as required. 3. Use the button to automatically zero. 4. Set the range (200mT or 2000mT). 5. Perform magnetic field measurement, switchable units (mT/Gs) and enable peak hold function. 6. Read the measurement results through the LCD screen.

Notice

• Only for DC magnetic field (static magnetic field) measurement. • Precision of 5% for measurement in a uniform magnetic field. • Operating Environment Temperature 5 ℃~ 40 ℃, relative humidity 20%~ 80% (undoubtedly exposed). • Note the DC measurement polarity: N table anode, S table cathode. • Avoid use in environments that exceed specifications.

Range
0mT~200mT~2000mT
Precision
DC, 5% (measurement in uniform magnetic field)
measured magnetic field
DC magnetic field (static magnetic field)
Function Description
Peak hold function Gs (Gauss)/mT (millitesla) can be switched freely
DC polarity measurement
N table anode, S table cathode
Ambient Temperature
5℃~40℃
relative humidity
20% to 80% (undoubtedly exposed)
Power supply
Four AA batteries
Dimension
140mm L *73mm (W) *30mm (H)
instrument weight
180g
Display mode
41/2LCD
Display unit
mT/Gs

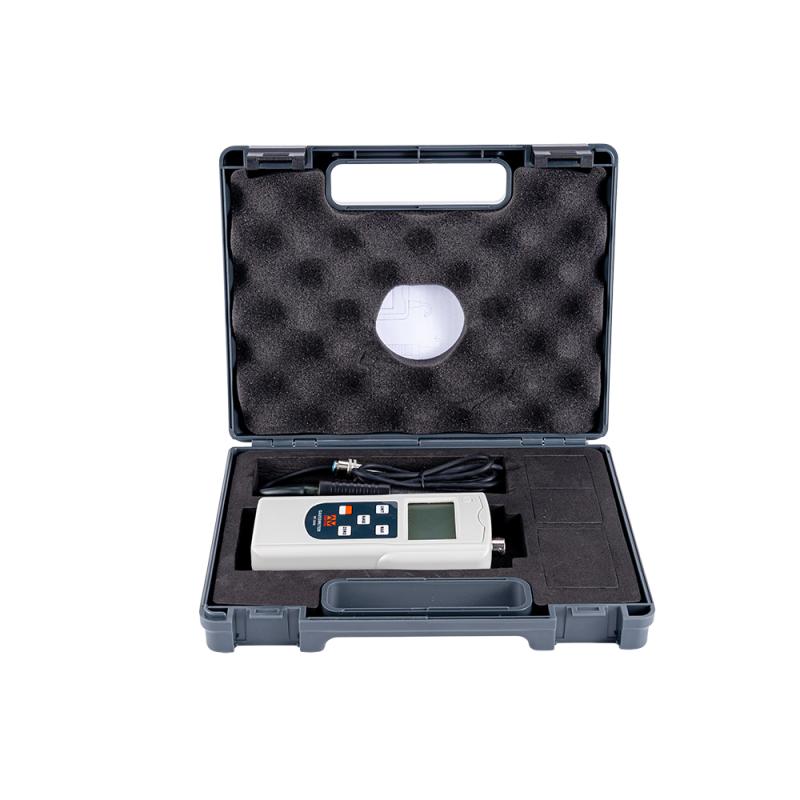

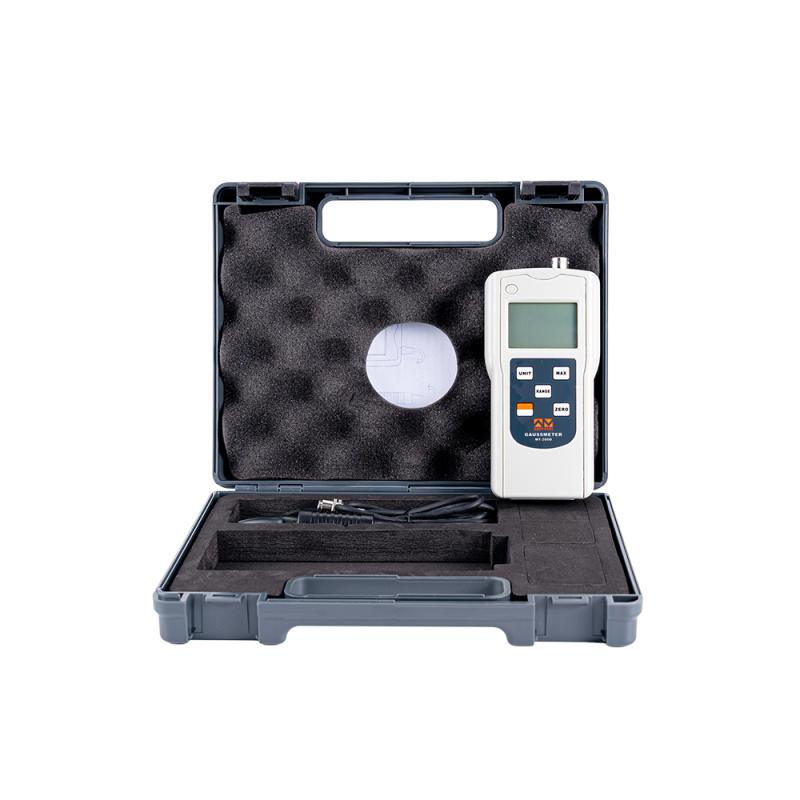

standard accessories
Host (one)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
