Overview

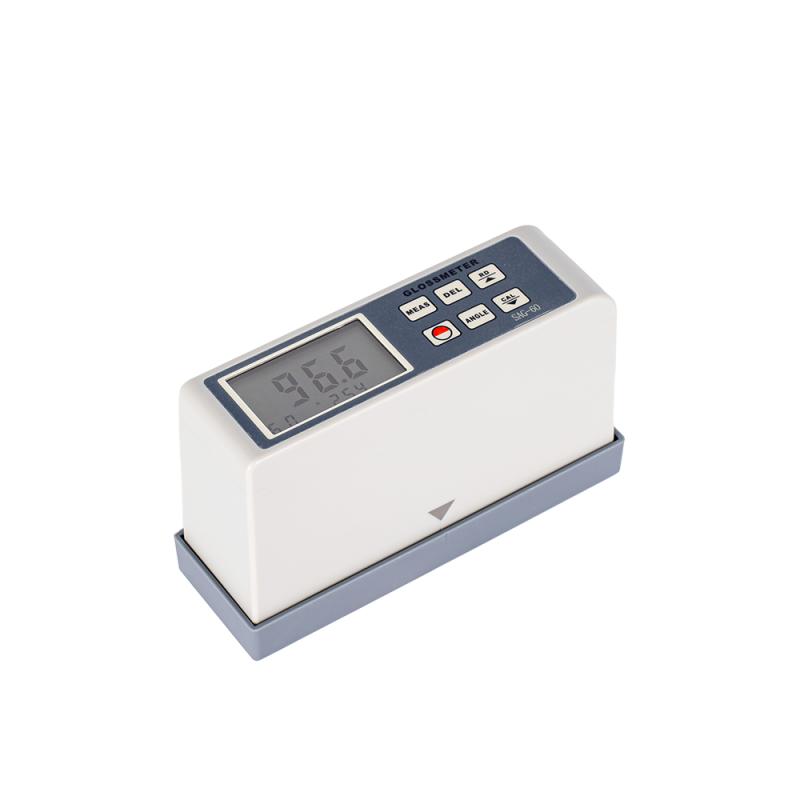

The AMITTARI SAG-60 Small Hole Glossiness Meter is a Portable instrument for the measurement of surface Glossiness on various materials. It is suitable for Gloss measurement on paints, coatings, inks, Stone, ceramic tiles, profiles, paper, bamboo, plastic, film and other metal and Non-metallic materials.
Features
1. Compliant with a number of international and domestic standards, including ASTM D-523, ASTM D1455, ASTM C346, ASTM C584, ASTM D2457, DIN 67530, EN ISO 7668, JIS Z8741, MFT 30064, TAPPI T480, GB 9754, GB/T 13891, GB 7706 and GB 8807, technical parameters comply with JJG 696-2002 standards.
2. Using USB data cable output, can be connected with PC, and provide Bluetooth data output selection.
3. Precision construction, strong and durable structure, lightweight appearance, easy to carry.
4. Automatic calibration can be performed by pressing only one key, without manual adjustment.
5. Intelligent design, fast measurement, accurate measurement, Repeatability.
6. 254 sets of data can be stored for instant browsing or import into a computer.
7. Built-in high-capacity rechargeable lithium-ion battery, no battery Memory effecy.
8. There is a backlight display, which is convenient to use in a dark environment with dark rays of light.
Principle
The Glossiness Meter evaluates the Gloss performance of a material by measuring the Glossiness of the reflected light on its surface. It uses 60-degree Measurement Angles with a range of 0.1GU to 200GU in GU, Precision of +/- 1.5GU, Resolution of 0.1GU, Repeatability of +/- 0.5GU, and Measurement Area of φ 5mm.
Applications
Gloss measurement on the surface of paints, paints, coatings, inks and other coating materials, Gloss measurement on the surface of Stone, ceramic tiles, profiles and other building decoration materials, Gloss measurement on the surface of paper, bamboo, wood, plastic, film and other surfaces, Gloss measurement on the surface of various other metals and Non-metallic materials
Standards
ASTM D-523、ASTM D1455、ASTM C346、ASTM C584、ASTM D2457、DIN 67530、EN ISO 7668、JIS Z8741、MFT 30064、TAPPI T480、GB 9754、GB/T 13891、GB 7706、GB 8807、JJG 696-2002
Steps
1. Automatic calibration by pressing a key.
2. Place the instrument on the surface of the material to be tested for measurement.
3. Read the measurement results through the display screen, or export the data through USB or Bluetooth connection to the PC.
Notice
• Operating ambient temperature range is 0 ° C to 40 ° C, Humidity should be less than 85% RH.
• Make sure the power supply is 3.7V lithium battery to avoid use in extreme environments.
• Keep the instrument stable during measurement for accurate results.
• Regularly check the battery level to avoid operating at low power.
