Overview

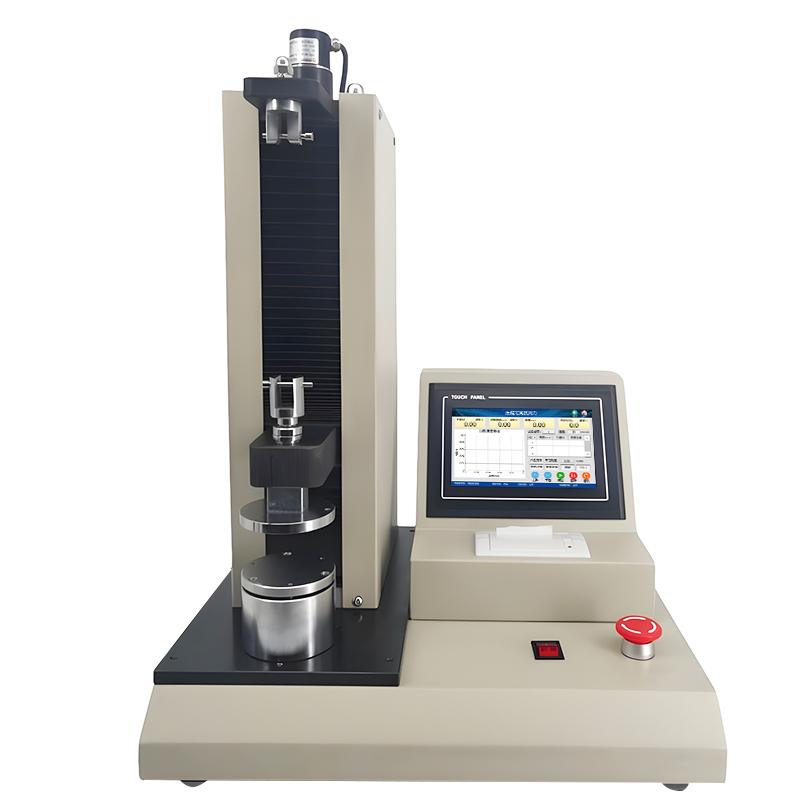

ZT-30 desktop electric spring testing machine is a special test equipment for springs under the HBO brand. It adopts precision automatic control and data collection system to improve test accuracy and reduce operation requirements. It is mainly used to detect spring deformation, tensile force, spring coefficient and other performance parameters. It can also test various resilience samples and similar parts. It meets JB/T7796-2017 standards and supports national standards and ISO, JIS, ASTM, DIN and other international standards. It is suitable for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. High Accuracy, High resolution, High Stability
2.7-Inch touch screen, friendly human-machine interaction interface, easy to operate
3.6 units of force value: N, kgf, lbf, gf, kN, tf
4.3 displacement units: mm, cm, in
5. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
6. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
7. The test interface directly displays parameters such as force value, displacement, spring free length/height, deformation value, test time, speed, test point stiffness and average stiffness
8. 10 sets of test points can be customized, and the qualification interval judgment of the corresponding test parameters can be set
9. Linear dispersion and tabular display of test data
10. After the test is completed, the data bar is automatically saved, up to 10,000 pieces of data can be saved
11. The machine comes with a micro printer, which can directly print the test results
12. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
This testing machine adopts precision automatic control and data collection system, and realizes spring deformation and force value measurement through stepper motor drive. During the test, the system automatically collects and processes data according to the set test mode (such as fixed height force value or fixed force value to measure deformation), and displays and records the performance parameters of the spring with High Accuracy.
Applications
Industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017, national standards, ISO, JIS, ASTM, DIN
Steps
1. Power on and select the test mode
2. Set the force value and displacement unit
3. Custom test points and qualification intervals
4. Start testing and observe real-time data
5. Automatically save data after the test is completed
6. Print the results with a microprinter
Notice
• Power supply voltage 220V 50HZ
• Check overload protection and emergency shutdown devices before operation
Avoid use in humid or flammable environments
Periodically calibrated to maintain accuracy
• Use the appropriate platen diameter for testing
