Overview

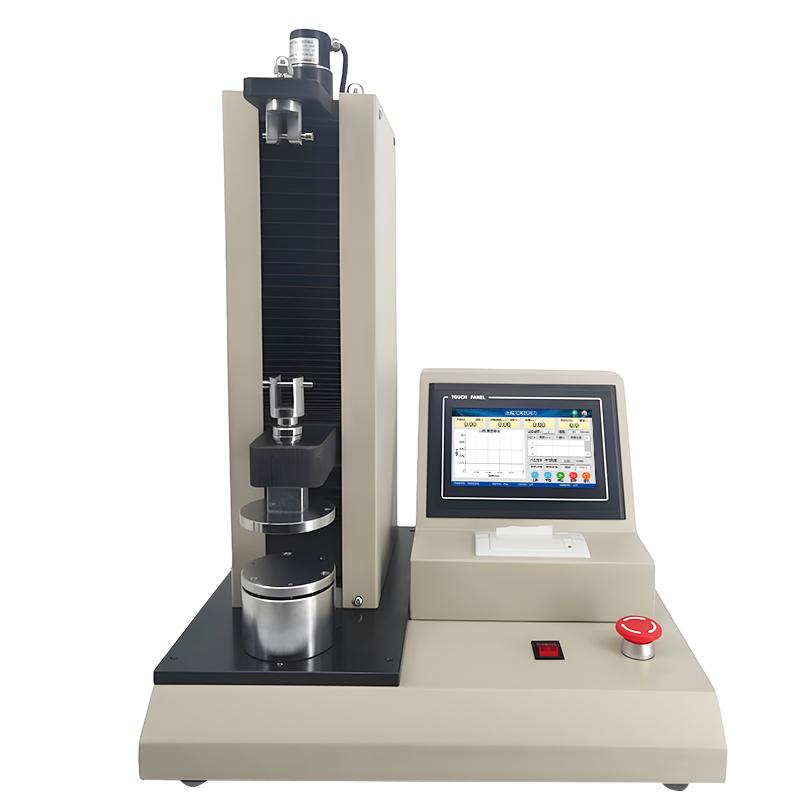

ZT-100 Desktop Electric Spring Testing Machine is a special spring testing equipment of HBO brand. It adopts precision automatic control and data collection system to improve test accuracy and reduce operation requirements. It is mainly used for performance detection of spring deformation, tensile force, spring coefficient, etc., and can also test resilience samples and similar parts. It meets JB/T7796-2017 standards. It supports national standards and ISO, JIS, ASTM, DIN and other international standards. It is suitable for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. High Accuracy, High resolution, High Stability
2.7-Inch touch screen, friendly human-machine interaction interface, easy to operate
3.6 units of force value: N, kgf, lbf, gf, kN, tf
4.3 displacement units: mm, cm, in
5. Graduation can be set freely: force value Graduation can be set up to 4 decimal places; displacement Graduation can be set up to 4 decimal places
6. Four test modes: fixed height force measurement value, fixed deformation force measurement value, fixed force value to measure height, fixed force value to measure deformation
7. The test interface directly displays parameters such as force value, displacement, spring free length/height, deformation value, test time, speed, test point stiffness and average stiffness
8. 10 sets of test points can be customized, and the qualification interval judgment of the corresponding test parameters can be set
9. Linear dispersion and tabular display of test data
10. After the test is completed, the data bar is automatically saved, up to 10,000 pieces of data can be saved
11. The machine comes with a micro printer, which can directly print the test results
12. Comes with memory function, overload protection, emergency shutdown device, leakage protection device
Principle
This testing machine adopts precision automatic control and data collection system, drives by stepper motor, applies force or deformation to spring or resilience sample, collects force value and displacement data in real time, calculates performance parameters such as spring coefficient, and displays the results in Linear dispersion and table form.
Applications
Industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units
Standards
JB/T7796-2017, national standards, ISO, JIS, ASTM, DIN
Steps
1. Turn on the power and start the device
2. Set test parameters through 7-inch Touchscreen, including force value units, displacement units, Graduation, test mode, etc
3. Place the spring or specimen in the Test space
4. Select the trial mode and start the test
5. Observe the parameters displayed on the test interface in real time
6. Data is automatically saved after the test is completed
7. Use a microprinter to print the test results
Notice
* Power supply voltage AC 220V 50HZ
Check whether the overload protection and emergency shutdown device are normal before operation
Avoid overloading to prevent equipment damage
Pay attention to leakage protection to ensure safe operation
Periodically calibrate equipment to maintain accuracy
