Overview

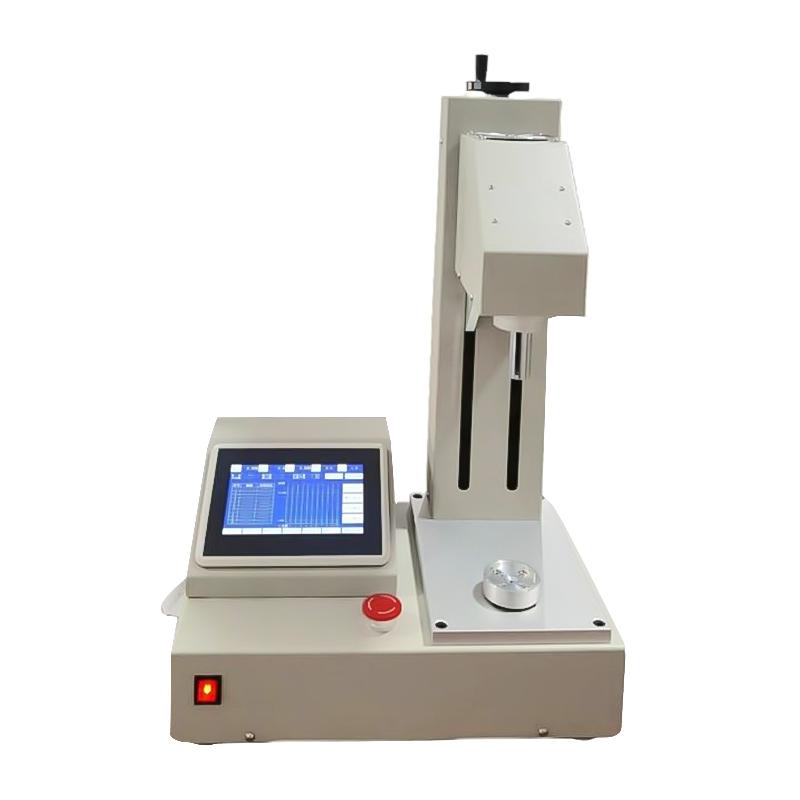

HBO HND-1 Intelligent Electric Torsion Tester is mainly used for torsional mechanical properties measurement and torsional damage performance testing of materials and finished products. It is suitable for torsional angle and torsional torque testing of torsion springs, coiled springs, parts, bolts, bottle caps, resilience elements and friction mechanisms. It can be tested according to national standards and ISO, JIS, ASTM, DIN and other international standards. It is a reliable testing equipment for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. High Accuracy, High Resolution, High Stability
2.7-Inch touch screen, friendly human-machine interaction interface, easy to operate
3. Six units N.mm, gf.cm, ozf.in, N.m, kgf.cm, lbf.in can be exchanged at will
4. Test direction display (counterclockwise, clockwise)
5. Measurement mode: Preset force value mode, Preset angle mode
6. You can customize 10 different test items, set different test points respectively, and load it directly after saving for the first time to test
7. Qualification interval judgment can be set
8. 5 test points can be customized, and the allowable torque value of the corresponding point is set, and the test interface displays the degree of deviation in real time
9. The test interface can display real-time stiffness, segmented stiffness, and overall stiffness
10. Save 10 sets of test data, automatically calculate the statistical pass rate, stiffness, MAX Maximum, MIN Minimum, average value of each set point torque value, and print
11. The corresponding torque value can be freely preset according to the test requirements, and the equipment will automatically stop swirling/spinning when it reaches the target value
12. Maximum peak test mode can be set to record MAX Maximum when the tested object slips or breaks
13. Gravity acceleration value can be set
Principle
This testing machine realizes torsional motion through electric drive, and measures the torsional mechanical properties of materials and finished products. Test with preset force value or preset angle mode, automatically record torsion angle, torsional torque and other parameters, and display stiffness data in real time. When the preset torque value is reached, the swirl/spin will be automatically stopped to ensure Test accuracy and Stability.
Applications
Torsion springs, coil springs, parts, bolts, caps, resilience elements, friction mechanisms
Standards
JB/T 9370-1999、JJG 269-2006、ISO、JIS、ASTM、DIN
Steps
1. Customize test items and set test points
2. Select Measurement mode (preset force value or preset angle)
3. Set torque value, angle, Rotation speed and other parameters
4. Start the test and the device will run automatically
5. Save the data and print the statistical results after the test is completed
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20 ℃ -70 ℃
• relative humidity should be kept at 15% -80%
• The working environment needs no vibration and corrosion medium around
• Power supply voltage is AC 220V 50HZ
Make sure the equipment is stable before testing to avoid external interference
