Overview

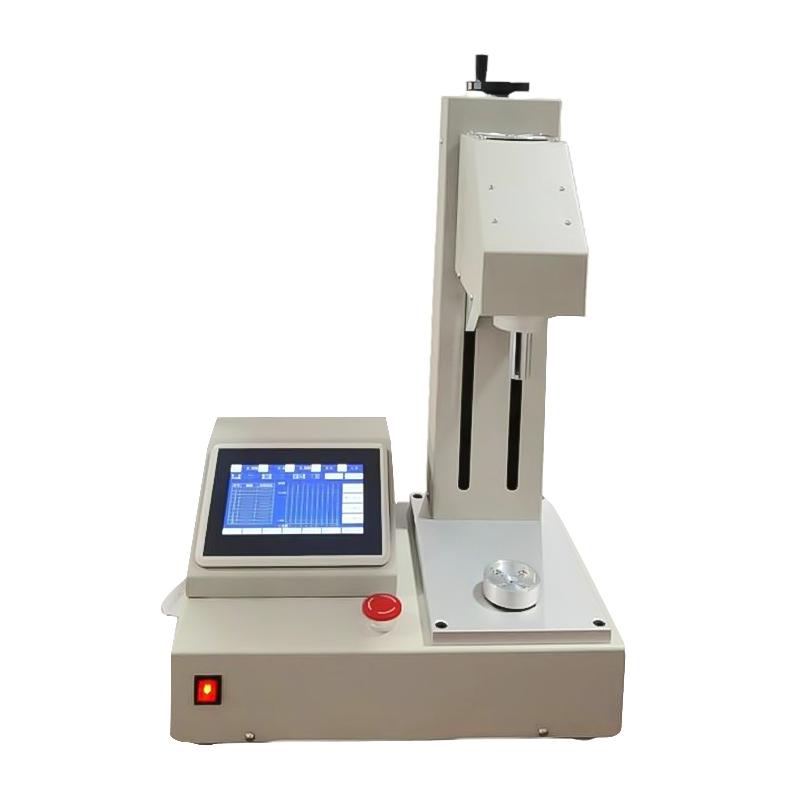

HBO HND-2 Intelligent Electric Torsion Tester is mainly used for torsion mechanical properties measurement and failure test of materials and finished products. It is suitable for torsion angle and torsion torque testing of torsion springs, coiled springs, parts, bolts, bottle caps, resilience elements and friction mechanisms. The equipment refers to JB/T 9370-1999 and JJG 269-2006 standards, supports national standards and ISO, JIS, ASTM, DIN and other international standards tests, and is a reliable testing equipment for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges and Quality control departments.
Features
1. High Accuracy, High Resolution, High Stability
2.7-Inch touch screen, friendly human-machine interaction interface, easy to operate
3. Six units N.mm, gf.cm, ozf.in, N.m, kgf.cm, lbf.in can be exchanged at will
4. Test direction display (counterclockwise, clockwise)
5. Measurement mode: Preset force value mode, Preset angle mode
6. You can customize 10 different test items, set different test points respectively, and load the test directly after saving for the first time, no need for repeability settings
7. Qualification interval judgment can be set
8. Can customize 5 test points, set the corresponding point tolerance torque value, test interface real-time display torque value deviation degree
9. The test interface displays real-time stiffness, segmented stiffness, and overall stiffness
10. Save 10 sets of test data, automatically calculate the statistical pass rate, stiffness, MAX Maximum, MIN Minimum and average value of each set point torque value, and print
11. The torque value can be freely preset according to the test requirements, and the equipment will automatically stop swirling/spinning when it reaches the target value
12. Maximum peak test mode can be set to record MAX Maximum when the tested object slips or breaks
13. Gravity acceleration value can be set
Principle
After the user presets the torque value or angle mode, the device automatically swirls/spins to the target value to stop, real-time measurement and display of torsional torque, angle and stiffness parameters, and record peak data.
Applications
Industrial and mining enterprises, technical supervision, commodity inspection and arbitration, research institutes, Universities & colleges, Quality control units
Standards
JB/T 9370-1999、JJG 269-2006、ISO、JIS、ASTM、DIN
Steps
1. Customize test items and set test points
2. Select Measurement mode (preset force value or preset angle)
3. Set the acceptable range and allowable torque value
4. Start the test, the device automatically swirls/spins to the default value
5. Observe test data in real time, including torque, angle, and stiffness
6. Save test data and automatically calculate statistical results
7. Print the test report
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20 ℃ -70 ℃
• relative humidity should be kept at 15% -80%
• The working environment needs no vibration and corrosion medium around
• Power supply voltage is AC 220V 50HZ
