Overview

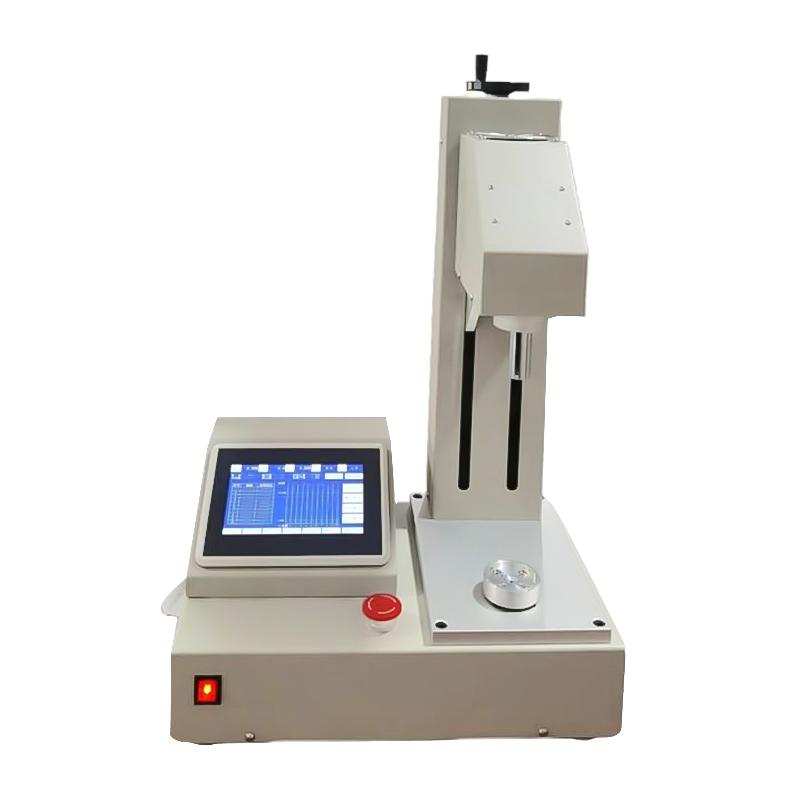

HBO HND-5 Intelligent Electric Torsion Tester is mainly used for torsional mechanical properties measurement and torsional damage performance testing of materials and finished products. The equipment is suitable for torsion angle and torsional torque testing of torsion springs, coiled springs, parts, bolts, bottle caps, resilience elements and friction mechanisms. It can be tested according to national standards and ISO, JIS, ASTM, DIN and other international standards. It is a reliable testing equipment for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, Universities & colleges, Quality control units and other departments.
Features
1. High Accuracy, High Resolution, High Stability
2.7-Inch touch screen, friendly human-machine interaction interface, easy to operate
3. Six units N.mm, gf.cm, ozf.in, N.m, kgf.cm, lbf.in can be exchanged at will
4. Test direction display (counterclockwise, clockwise)
5. Measurement mode: Preset force value mode, Preset angle mode
6. You can customize 10 different test items, set different test points respectively, and load it directly after saving for the first time to test
7. Qualification interval judgment can be set
8. 5 test points can be customized, and the allowable torque value of the corresponding point can be set. The test interface displays the deviation of the torque value of the test point in real time
9. The test interface can display real-time stiffness, segmented stiffness, and overall stiffness
10. Save 10 sets of test data, automatically calculate the statistical pass rate, stiffness, MAX Maximum, MIN Minimum, average value of each set point torque value, and print
11. The corresponding torque value can be freely preset according to the test requirements, and the equipment will automatically stop swirling/spinning when it reaches the target value
12. Maximum peak test mode can be set to record MAX Maximum when the tested object slips or breaks
13. Gravity acceleration value can be set
Principle
This device realizes torsion test by electric drive, and can automatically control swirl/spin according to preset force value or angle mode. It monitors and records torsional torque, angle and other parameters in real time, and automatically stops when the target value is reached. During the test process, stiffness, deviation and other data can be displayed, and peak recording function is supported.
Applications
Torsion springs, coil springs, parts, bolts, caps, resilience elements, friction mechanisms
Standards
JB/T 9370-1999、JJG 269-2006、ISO、JIS、ASTM、DIN
Steps
1. Customize test items and set test points
2. Select Measurement mode (preset force value or preset angle)
3. Set the acceptable range and allowable torque value
4. Start testing, the device automatically swirls/spins and records data
5. Save the data and print the statistical results after the test is completed
Notice
• Operating temperature range 0~ 40 ℃
• Storage Temperature range -20 ℃ -70 ℃
• relative humidity range of 15% -80%
• The working environment needs no vibration and corrosion medium around
• Power supply voltage is AC 220V 50HZ
