Overview

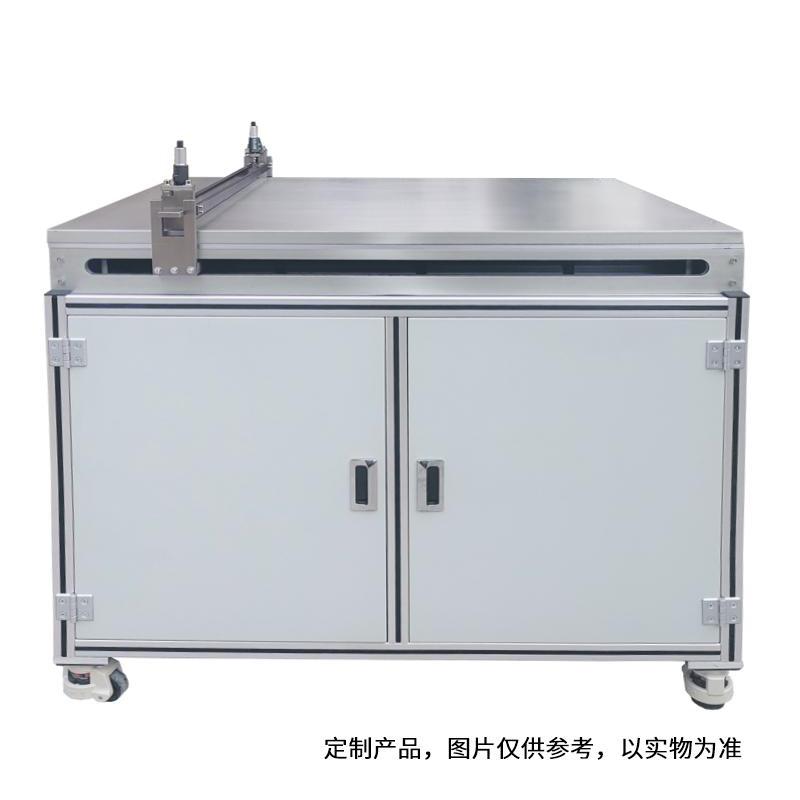

TBJ-B2-DJ12 Automatic Film Applicator is a customized laboratory film equipment in China, using bar and drawdown blade two coating methods, Coating size 500 * 1000mm, Floor-Standing structure design, suitable for Coating, inks, polymer materials, film, glue, Pressure sensitive adhesive and other industries Moulding.
Features
1. Two coating methods of bar and drawdown blade
2. Spreader accuracy up to +/- 0.05mm
3. Spreader thickness range 0~ 10mm, drawdown blade can be lifted
4 coating speed 5~ 180mm/s, support stepless speed
5. effective coating area 1000 * 600mm
6. Floor-Standing structural design
7. Support customized functions: automatic feeding, jet system device, UV solid inclusion device
Principle
The Film Applicator realizes material Spreader by bar and drawdown blade two coating methods, uses stepless variable speed control coating speed, drawdown blade can lift and adjust Spreader thickness, and completes the accurate film process on the aluminum alloy Spreader stage.
Applications
Coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives
Steps
1. Spreader material and substrate
2. Select bar model to determine Spreader thickness
3. Set coating speed and thickness parameters
4. Start the device for Spreader operation
5. Remove the sample after finishing the film
