Overview

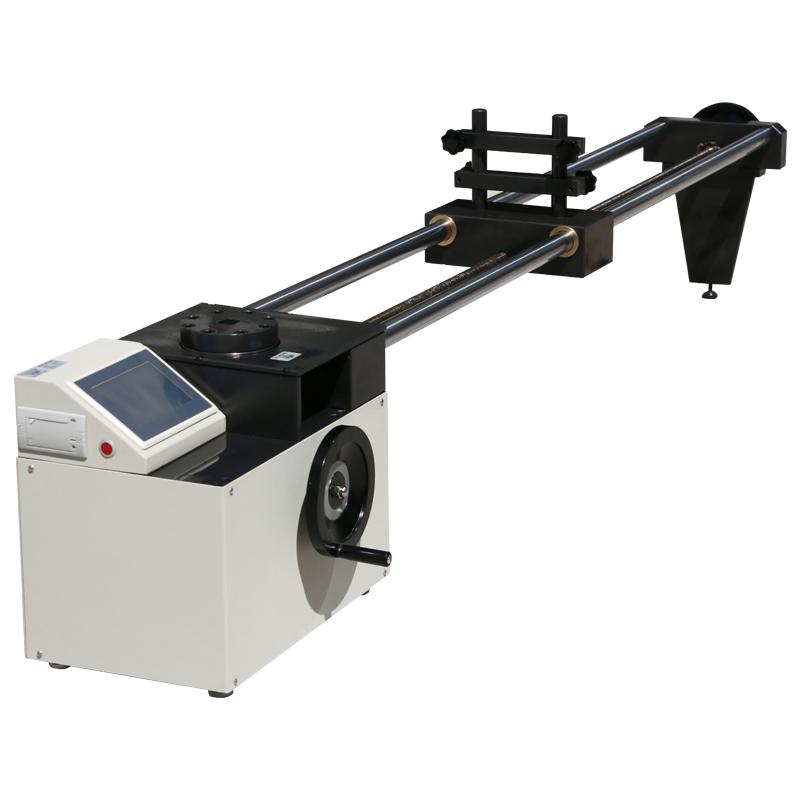

HNS-1000 torque spanne verification instrument is a professional instrument produced by HBO for all kinds of torque spanne verification (calibrate). The instrument conforms to JJG 797-2013 torque spanne verification instrument verification procedure and JJG707-2014 torque spanne verification procedure standard test method. It adopts electronic Sensor technology and has the advantages of high accuracy, easy operation, high Sensitivity and reliable data.
Features
1. High Accuracy, High resolution, High Stability
2. Large 7-inch color touch LCD screen, human-machine interaction interface is simple and easy to use
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. The device can do two-way (clockwise, counterclockwise) verification
5. Test direction display (counterclockwise +, clockwise -)
6. Provide JJG707-2014 torque spanne verification procedure standard test form, can directly print test data
7. 10 different test items can be customized, and different test points can be set respectively. After saving for the first time, it can be directly loaded and used
8. Can customize 8 check points, and can set the standard torque value of the corresponding point, the test interface real-time display test point torque indication and its indication relative error, indication Repeatability
9. Select the test location to set the gravitational acceleration value, and you can also customize the settings
10. Connect the host computer through a USB connection cable to read, store, analyze, and print real-time data
Principle
The instrument uses electronic Sensor technology for torque measurement, applying torque through hand-cranked loading, Sensor converts torque signals into electrical signals, which are displayed on a 7-inch color touch LCD screen after processing, and can be Data storage, analysis and printing.
Applications
All kinds of torque wrench verification, calibrating
Standards
JJG797-2013 torque spanne verification procedures, JJG707-2014 torque spanne verification procedures
Steps
1. Connect the power supply (AC 220V 50HZ)
2. Set up test items or load saved test items through Touchscreen
3. Set the test point and standard torque value
4. Set the test site gravity acceleration value or custom settings
5. Apply torque by hand-cranked loading
6. Observe the torque indication, relative error and Repeatability data displayed on the test interface
7. Connect the host computer via USB for data reading, storage, analysis, and printing
Notice
• The working environment needs to be free of seismic sources and electromagnetic interference
• Power supply voltage 220V 50HZ
• Wrench length applicable range is 270-1250mm
• Check whether the connection parts of the equipment are firm before use
• Pay attention to safety during operation and avoid overload use
