Overview

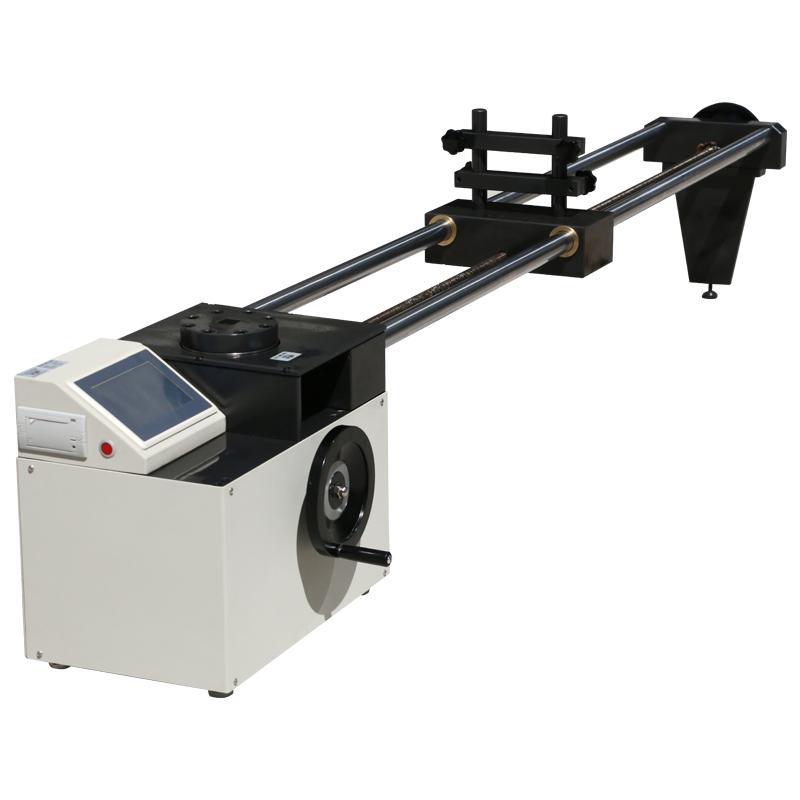

HNS-2000 torque spanne verification instrument is a professional torque spanne verification (calibrate) instrument of HBO brand. The instrument conforms to JJG 797-2013 torque spanne verification instrument verification procedure and JJG707-2014 torque spanne verification procedure standard test method. It adopts electronic Sensor technology and has the advantages of high accuracy, easy operation, high Sensitivity and reliable data.
Features
1. High Accuracy, High resolution, High Stability
2. Large 7-inch color touch LCD screen, human-machine interaction interface is simple and easy to use
3. Three units N.m, kgf.cm, lbf.in automatic conversion
4. The device can do two-way (clockwise, counterclockwise) verification
5. Test direction display (counterclockwise +, clockwise -)
6. Provide JJG707-2014 torque board verification procedure standard test form, can directly print test data
7. You can customize 10 different test items and set different test points respectively. After saving for the first time, you can start the test directly after loading it in the future, no need to set it again
8. Can customize 8 check points, and can set the standard torque value of the corresponding point, the test interface can display the test point torque indication and its indication relative error, indication Repeatability, etc
9. Select the test location to set the gravitational acceleration value, and you can also customize the settings
10. Connect the host computer through the USB connection cable to read, store, analyze, print and other operations of real-time data
Principle
The instrument uses Electronic Sensor technology for torque measurement, applies torque through hand-cranked loading, detects and displays torque indication and its error and Repeatability in real time.
Applications
Torque wrench verification, torque wrench calibrating
Standards
JJG 797-2013 torque spanne verification procedure, JJG707-2014 torque spanne verification procedure Standard test method
Steps
1. Connect the power supply (AC 220V 50HZ)
2. Set up the test project or load the saved settings through Touchscreen
3. Set the verification point and standard torque value
4. Select the test direction (clockwise or counterclockwise)
5. Applying torque by hand-cranked loading
6. Observe test data in real time
7. Connect the host computer via USB for data reading, storage, analysis, and printing
Notice
• The working environment needs to be free of seismic sources and electromagnetic interference
• Power supply voltage 220V 50HZ
• Wrench length applicable range is 270-2000mm
• Pay attention to the test direction display (counterclockwise +, clockwise -)
• After setting up the test project for the first time, it can be directly loaded and used without the repeability setting
