Overview

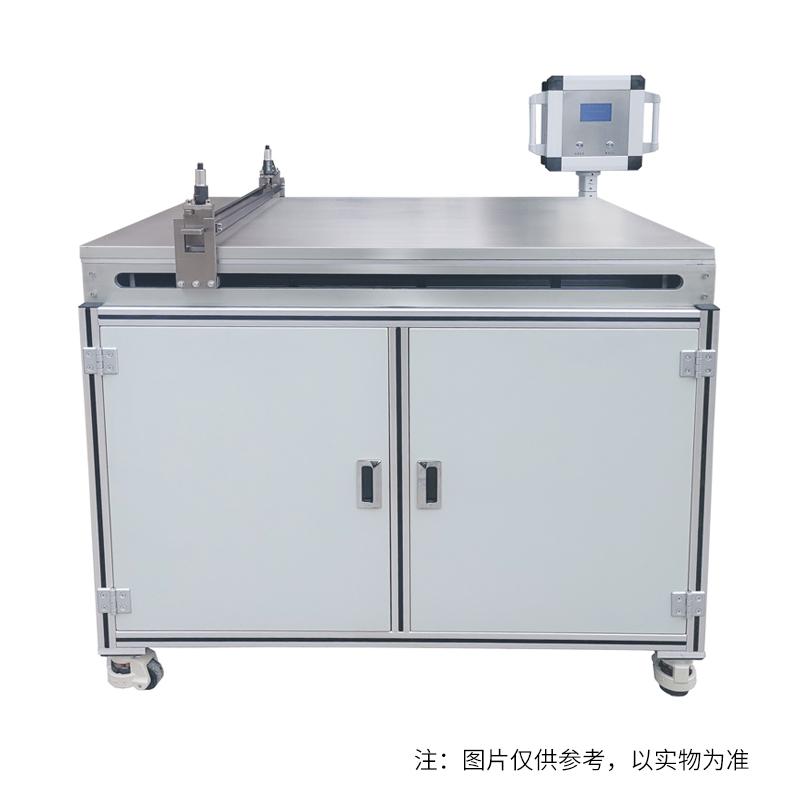

TBJ-X5-DJ9 Floor-Standing Automatic Film Applicator is a China automatic film equipment with automatic feeding system, Coating size is 600 * 700mm. The equipment has both heating and Vacuum chuck functions, and adopts an integrated drawdown blade design. Spreader accuracy can reach +/- 0.003mm.
Features
1. Integrated drawdown blade design, Spreader accuracy +/- 0.003mm
2. Both heating and Vacuum chuck function
3. Equipped with automatic feeding system
4. Adjustable coating speed 5~ 200mm/s, support stepless speed change
5. effective coating area 700 * 600mm, support customization
6. Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 3 ℃
7. Support a variety of coating methods: bar + drawdown blade + automatic feeding
8. Vacuum chuck fixed substrate, adsorption size 700 * 600mm
Principle
The Film Applicator fixes the substrate through Vacuum chuck, and uses an integrated drawdown blade for Spreader. The thickness of the Spreader is adjustable in the range of 0~ 10mm. The automatic feeding system feeds through the principle of outflow of air source pressure, and the amount of material can be controlled by adjusting the air pressure and the running speed of the discharge port.
Applications
Spreader process, material coating prepative, laboratory research, industrial production
Steps
1. Connect the host power supply 220V 50Hz
2. Connect the air source of the feeding system to 0.6Mpa
3. Set Spreader parameters through Touchscreen
4. Place substrate and start Vacuum chuck
5. Set Spreader Travel and Rate
6. Start the automatic feeding system
7. Start Spreader Job
Notice
• The feeding system needs to be equipped with a tubing of φ 8
• Mixing Tank can withstand up to 8Mpa pressure
• Customized coating speed below 5mm/s
• Net weight and Dimensions of the equipment are subject to the actual product
• Check safety devices such as safety valves, pressure regulators, pressure gauges, etc. before use
