Overview
Rxg-08/500hret large coil Automatic Film Applicator Spreader program for unwinding - scraping - drying - heating Laminating - trimming - correction - winding, with 8 meters oven device, effective application width 500mm, roller heating temperature up to 200 ℃, suitable for hot-melt adhesive film.
Features
1. Spreader procedures complete, including unwinding, scraping, drying, heating Laminating, trimming, correction and winding;
2. Equipped with 8 meters oven device, Temperature range RT +~ 200 ℃;
3. The effective application width is adjustable, the range is 100~ 500mm;
4. Spreader thickness range is wide, 0.005-3mm;
5. High heating temperature of rubber roller, up to 200 ℃, suitable for hot-melt adhesive film;
6. Adjustable coating speed, range 1~ 10m/min;
7. Adjustable Blade Coating Device for Flexible Operation.
Principle

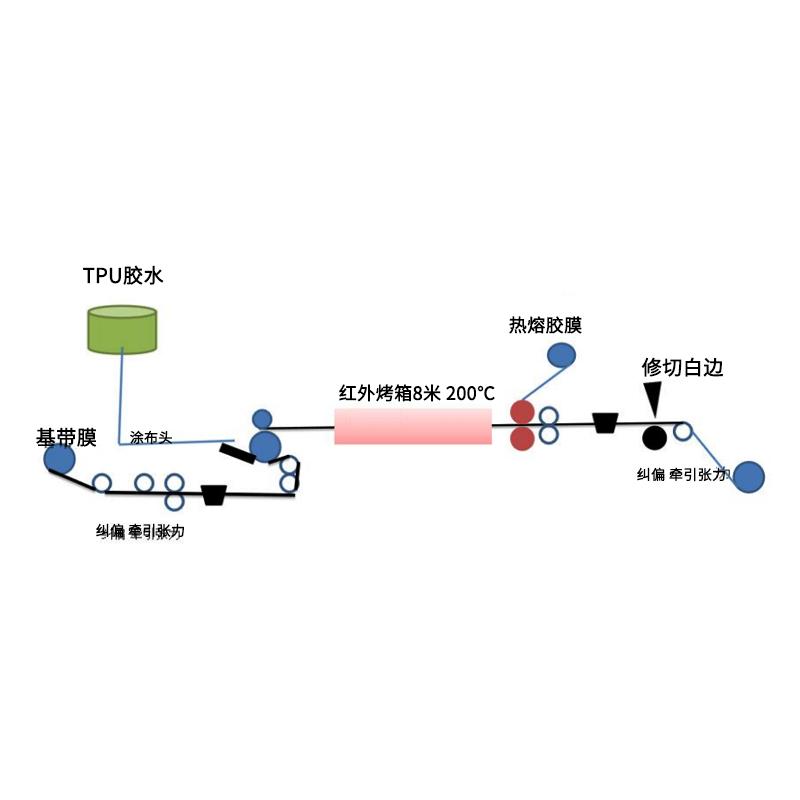

The Coater realizes automatic Spreader through the continuous process of unwinding, scraping, drying, heating Laminating, trimming, deviation correction and winding. The coating applicator adopts an adjustable drawdown blade device, the rubber roller is heated to the set temperature, and the material is dried in the oven to complete Laminating and trimming, and finally winding.
Applications
Hot-melt adhesive film
Steps
1. Unroll;
2. Scratch coating;
3. Drying;
4. Laminating heating;
5. Edge trimming;
6. Correction;
7. Roll up.
Notice
• The coating speed can be adjusted from 1 to 10m/min;
• The effective application width adjustable range is 100~ 500mm;
• Spreader thickness range is 0.005-3mm;
• Drying Temperature range is RT +~ 200 ℃;
• Roller heating Temperature range is RT +~ 200 ℃;
• Power supply voltage is 220V/2.5KW;
• The maximum discharge and receipt width is 500mm.
