Overview

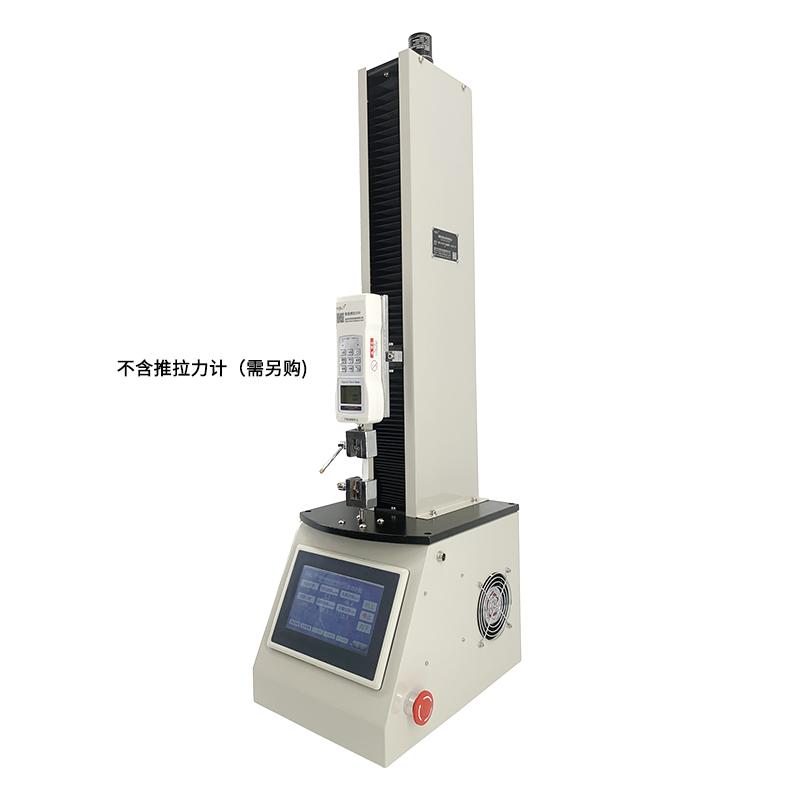

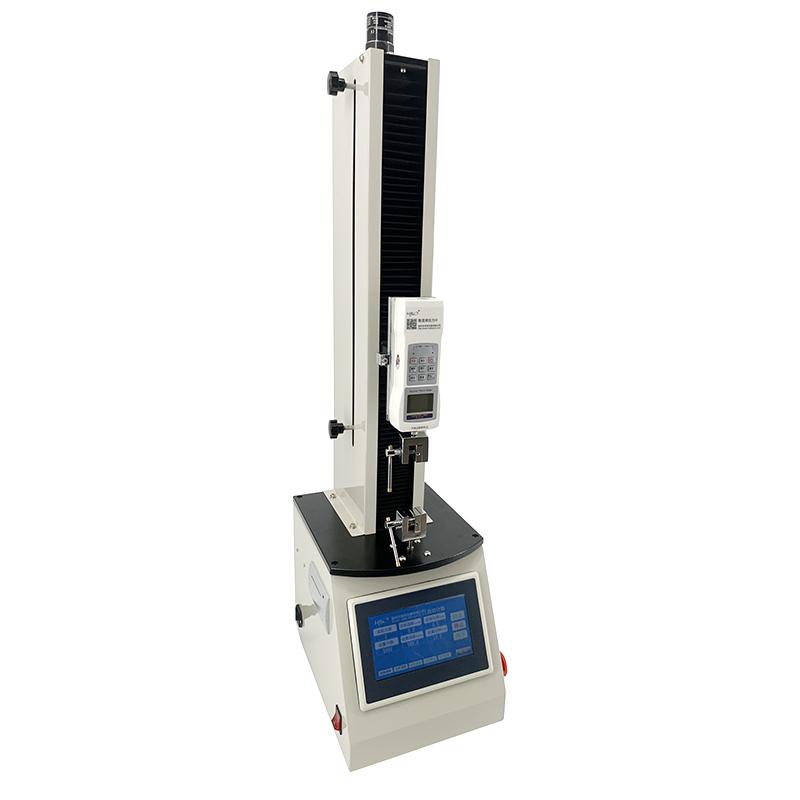

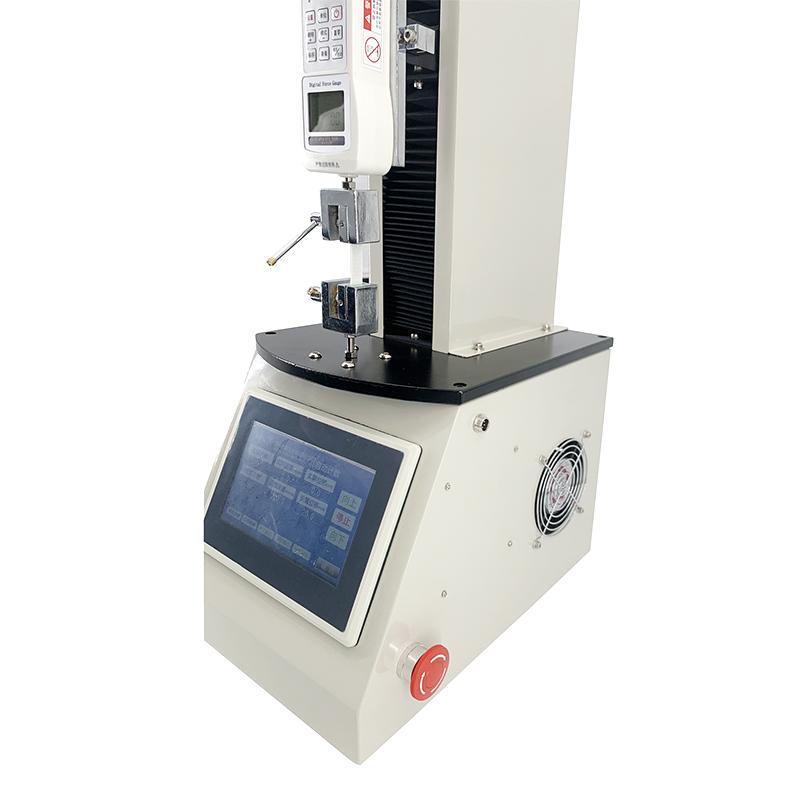

HBO HDE-500S Intelligent Single-column Vertical Machine is a small Pull Pressure Tester used with Force Gauge. The product adopts stepper motor, High Accuracy encoder, precision ball screw pair, and has high mechanical property stability and accuracy. It has functions such as speed, displacement, time controllable, manual (pointing), automatic, automatic control of the number of movements, and in-place delay. It is widely used in rubber plastics, light industry Spinning & weaving, building doors and windows, composite, Wire and cable, auto parts, power machinery, scientific research institutions and other industries. Tensile and compression load, insertion force, Destructiveness, fatigue and other tests.
Features

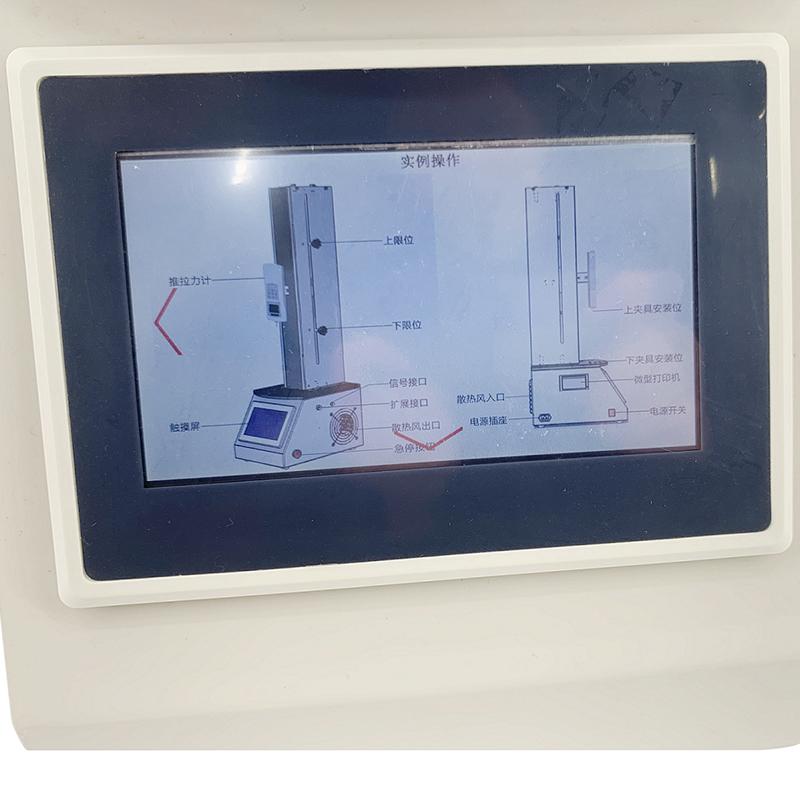

1.7-Inch touch screen, friendly human-machine interaction interface, easy to operate
2. Four test modes: counting mode, timing mode, expansion mode, and autonomous programming mode
3. Test speed can be set (speed controllable)
4. The test displacement can be set (the displacement is controllable), and the beam remains stationary when it reaches the set displacement point (the holding time can be set) or returns to the origin
5. The loading force can be set (the force value can be controlled), and the beam remains stationary when the preset force is reached (the holding time can be set) or returns to the origin
6. Force holding function: The force holding time can be freely set
7. Set the force value round-trip function: when the equipment runs to the specified force value, the force value, holding time, and the number of movements can be freely set
8. Pull and break the stop function: after the measured object is discharged, the beam remains stationary or returns to the origin
9. In the fully automatic programming mode, 5 different test shifts and 5 different Test speeds can be customized to meet different test needs
10. Equipped with limit protection device, emergency shutdown device, leakage protection device
11. Standard micro printer, supporting the company's corresponding digital display Force Gauge, can print test data
Principle
The machine is driven by a stepping motor, and is precisely controlled by a High Accuracy encoder and a precision ball screw pair. It can set and automatically control parameters such as speed, displacement, and time, and complete tests such as tension and compression loads and insertion and unplugging forces.
Applications
Rubber plastics, Light industry Spinning & weaving, Building doors and windows, Composites, Wires and cables, Auto parts, Power machinery, Scientific research institutions
Steps
1. Select the test mode (counting mode, timing mode, expansion mode or autonomous programming mode)
2. Set test parameters (speed, displacement, force value, holding time, etc.)
3. Start the test
4. Equipment runs automatically and records data
5. Use a microprinter to print test data
Notice
• Before use, please check whether the power supply meets the requirements of AC 220V 50/60HZ
• Pay attention to the use of equipment limit protection devices and emergency shutdown devices during operation
• Ensure that the tested object is firmly installed to prevent loosening during the test
• Regularly check equipment mechanical components and electrical systems to ensure normal operation
• Test accuracy with our Digital Force Gauge
