Overview

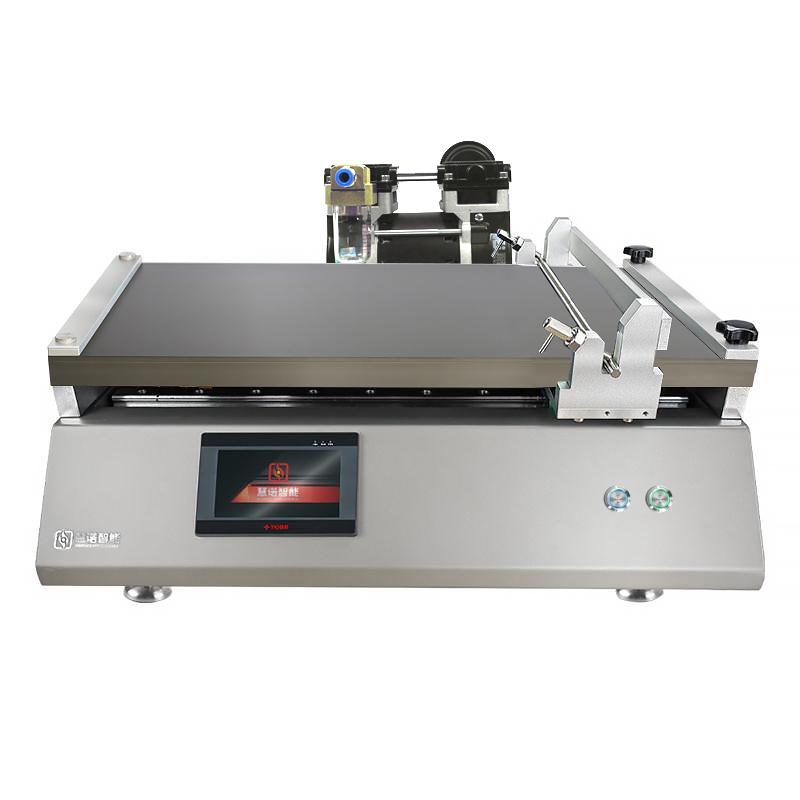

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar type Automatic Film Applicator with Vacuum chuck function. The new bar Installation method greatly improves the efficiency of Spreader, is easy to clean, supports speed control and application length adjustment, and is suitable for laboratory High Accuracy automatic film.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. The bar coating method is used to fix the substrate by Vacuum chuck to realize automatic film.
Applications
Research institutes of universities, New materials, lithium batteries, glues, Resin and other laboratories conduct Moulding proofing, Coatings, inks, paints, Stock, lithium batteries, Resin, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Place the substrate on the Spreader table and fix it with Vacuum chuck
3. Set application length and Spreader speed parameters through Touchscreen
4. Select the Appropriate Bar Film Applicator
5. Start the device for automatic filming
6. Clean the bar after filming
Notice
• Please ensure that the power supply of the device meets the requirements before use
• Pay attention to the safe use of the Vacuum chuck system when operating
• Spreader parameter settings need to be adjusted according to specific sample characteristics
• Clean the bar in time after the film is completed to maintain accuracy
• Regularly check the running status of all parts of the equipment
