Overview

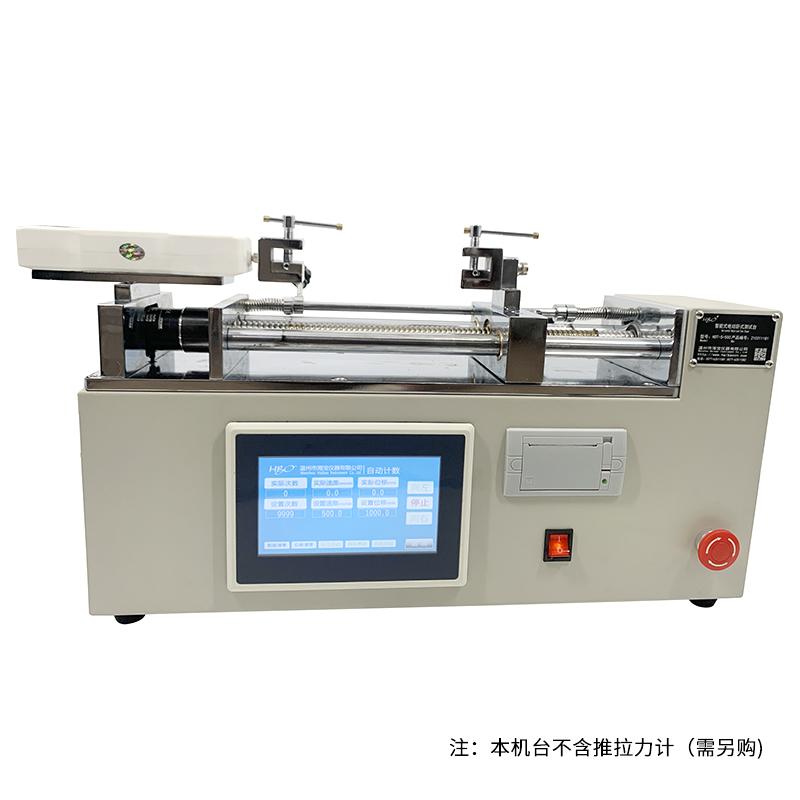

HBO HDT-500S intelligent horizontal machine is a small Pull Pressure Tester used with Force Gauge and fixture. The product adopts stepper motor and High Accuracy encoder, which has the characteristics of high mechanical property stability accuracy, speed, displacement, time control, etc. It supports manual (pointing), automatic, automatic control of the number of movements, and in-place delay. It is widely used in rubber plastics, light industry Spinning & weaving, building doors and windows, composites, Wire and cable, auto parts, power machinery, scientific research institutions and other industries. Tensile load, insertion force, Destructiveness, fatigue and other tests.
Features
1.7-Inch touch screen, friendly human-machine interaction interface, easy to operate
2. Four test modes: counting mode, timing mode, expansion mode, and autonomous programming mode
3. Test speed can be set (speed controllable)
4. The test displacement can be set (the displacement is controllable), and the beam remains stationary when it reaches the set displacement point (the holding time can be set) or returns to the origin
5. The loading force can be set (the force value can be controlled), and the beam remains stationary when the preset force is reached (the holding time can be set) or returns to the origin
6. Force holding function: The force holding time can be freely set
7. Set the force value round-trip function: when the equipment runs to the specified force value, the force value, holding time, and the number of movements can be freely set
8. Pull and break the stop function: after the measured object is discharged, the beam remains stationary or returns to the origin
9. In the fully automatic programming mode, 5 different test shifts and 5 different Test speeds can be customized to meet different test needs
10. Equipped with limit protection devices, emergency shutdown devices, and leakage protection devices
11. Standard micro printer, supporting the company's corresponding digital display Force Gauge, can print test data
Principle
The product is driven by stepper motor and High Accuracy encoder, and realizes tensile stress testing through electric loading. During the test, the device automatically controls the beam motion according to preset parameters such as speed, displacement, force value, etc., and supports a variety of test modes, including counting, timing, telescopic rate and autonomous programming, to ensure Test accuracy and Stability.
Applications
Rubber plastics, Light industry Spinning & weaving, Building doors and windows, Composites, Wires and cables, Auto parts, Power machinery, Scientific research institutions
Steps
1. Connect the power supply and turn on the device.
2. Set test parameters through a 7-inch touch screen, including test mode, speed, displacement, force value, etc
3. Install Force Gauge and Fixture, Place the Tested Object
4. Start the test, the equipment runs automatically and controls the beam movement according to preset parameters
5. After the test is completed, print the test data using the standard microprinter
6. Turn off the device and disconnect the power
Notice
• Make sure the power supply is AC 220V 50/60HZ before use to avoid voltage mismatch
• Pay attention to safety when installing fixtures and tested objects to prevent accidental injuries
• Do not touch moving parts during the test to ensure that the operation area is barrier-free
• Regularly check whether the function of limit protection device, emergency shutdown device and leakage protection device is normal
• Measured value of equipment is 500N/50Kg, do not overload
• Keep the equipment clean and avoid use in humid or high temperature environments
• Operators should be familiar with equipment functions and parameter settings to avoid misoperation
