Overview

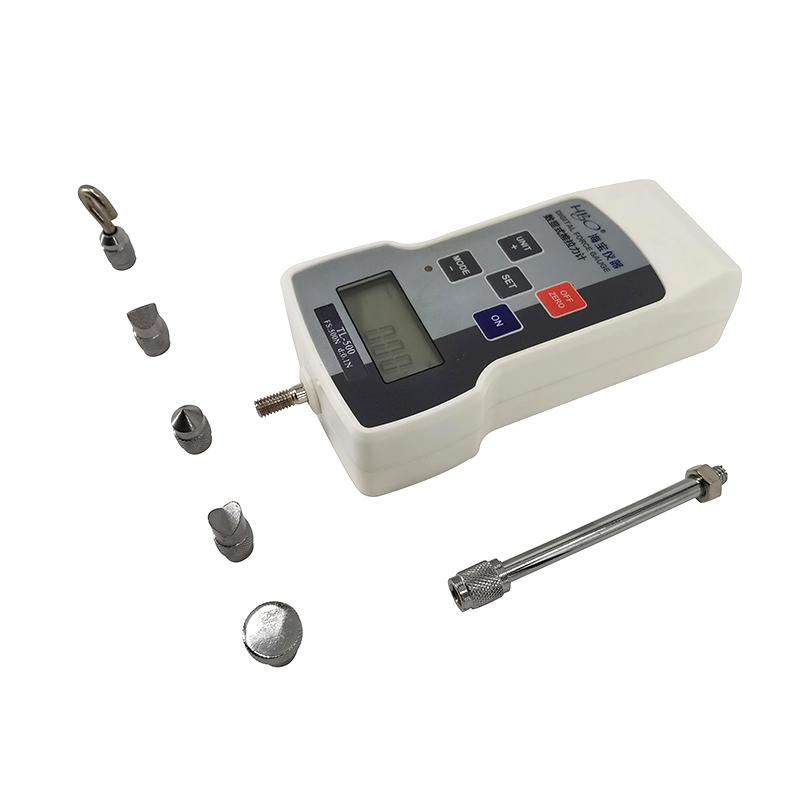

The TL-10 digital display Force Gauge is a general-purpose Portable push-pull load testing instrument launched by HBO, which is suitable for push-pull load testing, plug-in force testing, failure testing, etc. of various products. It can be combined with various machines and fixtures to form a small testing machine for different purposes.
Features
1. Light weight, small size, wider application scenarios
2. LCD display, white backlight, convenient reading
3.5 Units: N, KN, Kgf, lbf, tf are converted to each other
4. Real-time tracking mode, peak hold mode can be switched freely
5. Free setting of upper and lower limits, automatic sound and light alarm
6. Peak hold time can be set (can be set from 0 to 99 seconds)
7. Gravity acceleration value can be set
8. Free setting of automatic shutdown time without operation (0-99 minutes)
9. Feel free to combine various testing devices to make the test more accurate

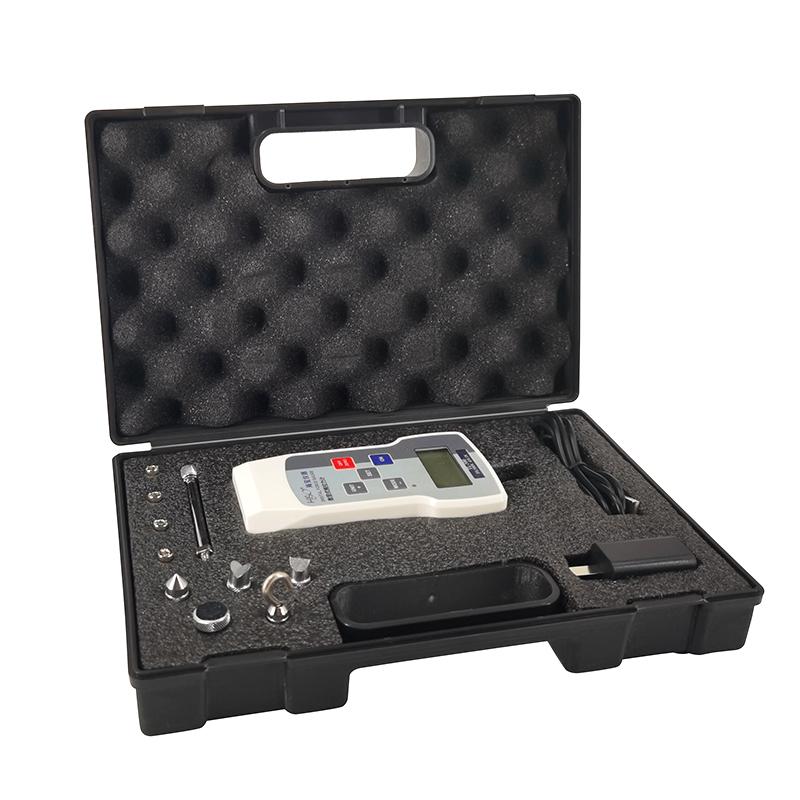

10. Special Instrument Toolbox, Contains Foam Shockproof Encasement, Easy to Transport, Save and Carry
11. Lithium battery powered, no need to replace the battery
12. Smart Charging, Safe Charging, Extend Battery life
Principle
The Force Gauge built-in Sensor structure, through the measurement of push-pull load, the test data will be displayed on the LCD screen in real time, support real-time tracking and peak holding two Operating Mode, and can set the upper and lower limit qualification range to achieve automatic sound and light alarm function.
Applications
Product push-pull load test, insertion force test, failure test
Standards
Precision: 0.5, indication relative error ：≤ +/- 0.5%
Steps
Step 1 Power on
2. Select Measurement unit (N, KN, Kgf, lbf, tf)
3. Set Operating Mode (Real Time Tracking or Peak Hold)
4. Set the upper and lower limit qualification range
5. Set the peak hold time (0 to 99 seconds)
6. Set the gravitational acceleration value
7. Set the automatic shutdown time (0-99 minutes)
8. Conduct test operations
Step 9 Read the test results
Notice
• Environmental requirements No vibration and corrosion around
• Operating temperature range is 0 ℃ -40 ℃
• Storage Temperature range -20~ 70 ℃
• relative humidity range of 15% -80%
• Charging time approximately 4 hours
• Continuous use battery life is about 25 hours
• Use dedicated charger (AC Input: 220V/50HZ, DC Output: 5V/1A)
