Overview

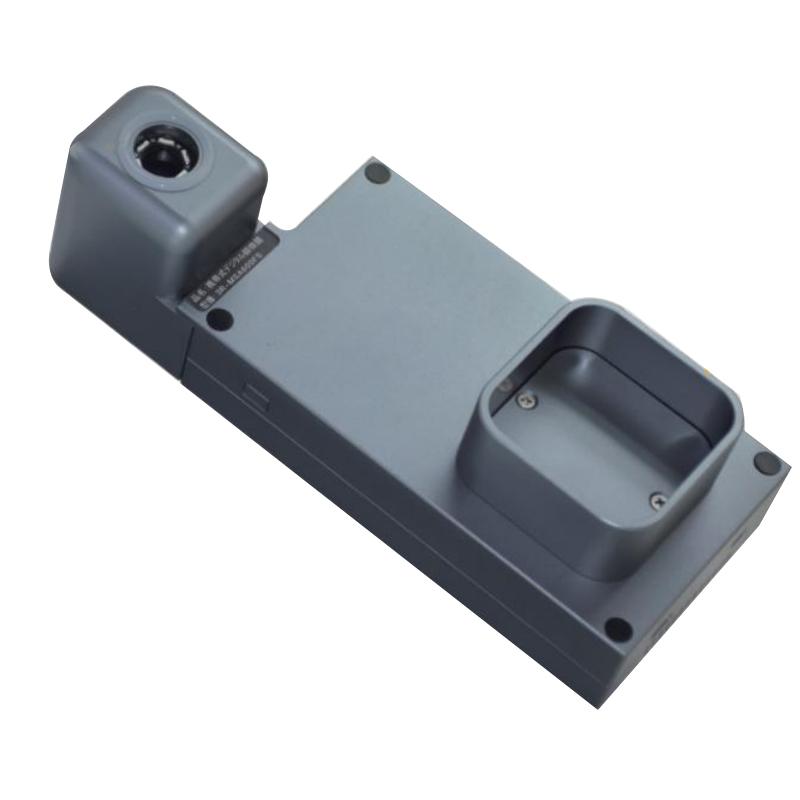

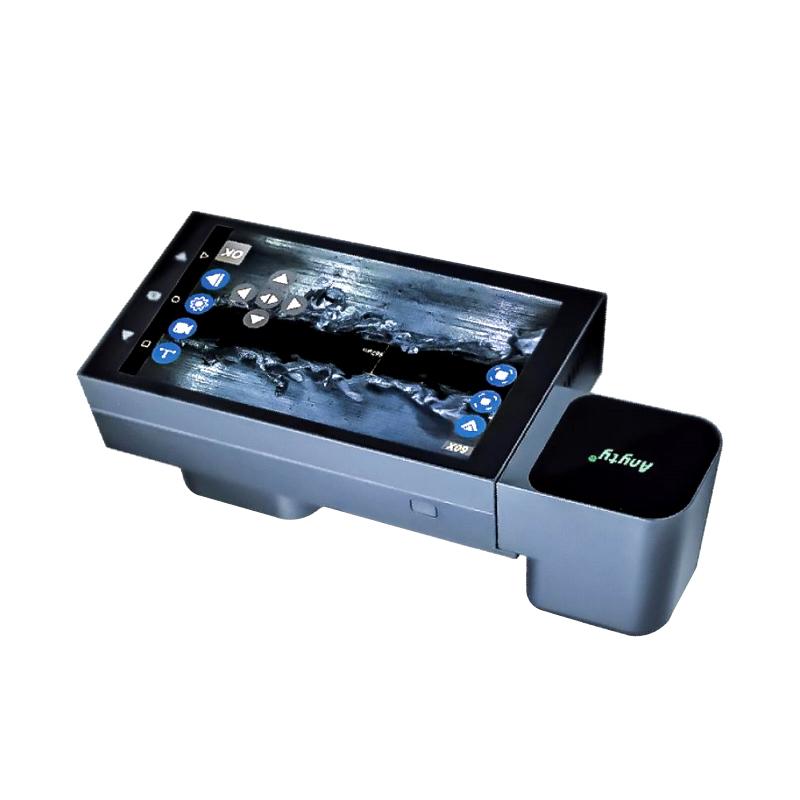

ANYTY Portable Video Microscope Model 3R-MSA600FS (8G) is a Portable Microscope equipped with Android system, which can easily cope with the high magnification microscopy teaching and acquisition requirements in the laboratory or field. Software supports microscopic detection sampling of length, area, angle, depth, direction, size, etc., to achieve comparison work, and can be saved and uploaded in real time to provide data support for later reports.
Features
1.5-Inch touchscreen, Android system operation
2. Support WiFi/Bluetooth transmission, USB cycle charging
3.60X/200x magnification, one-button autofocus without repeated debugging
4. Solid focus CMOS lens anti-wear rubber gasket, can cope with concave and convex surface observation
5. Built-in roller shutter LED lighting design, Illuminant uniform better imagery
6. Magnetic detachable bracket, flexible switching to deal with complex environment
7. Capable of taking photos/recording/measurement/storage, Measurement accuracy up to micron level
Principle
The Portable Video Microscope uses a CMOS Sensor and auto/manual focusing to provide a uniform ray of light through a high-luminance LED Illuminant, combined with Android system software for image acquisition, measurement and storage. It uses touch screen operation, supports WiFi and Bluetooth data transmission, and realizes microscopic observation and real-time analysis.
Applications
Electronics manufacturing, identification of artworks, animal and plant research, material testing, mineral particle testing, printing Dot testing, identification of banknote documents, etc
Steps
1. Turn on the power of the device and start the Android system
2. Select functions such as photo, video or measurement through the 5-inch touchscreen
3. Use one-button autofocus or manual focus to observe
4. Use software for parameter measurement such as length and area
5. Save images or videos and transfer data via WiFi/Bluetooth
6. Charge with the USB port to ensure battery life
Notice
• Operating Temperature range 5-35 degrees, Storage temperature -20 degrees to + 50 degrees
• Avoid use in extreme temperature environments to prevent equipment damage
• Pay attention to anti-wear gasket protection when using solid focus lenses to avoid scratching by hard objects
• Regularly check the battery power to ensure that it does not work continuously for more than 3 hours
• Limited storage space, timely backup of important data
